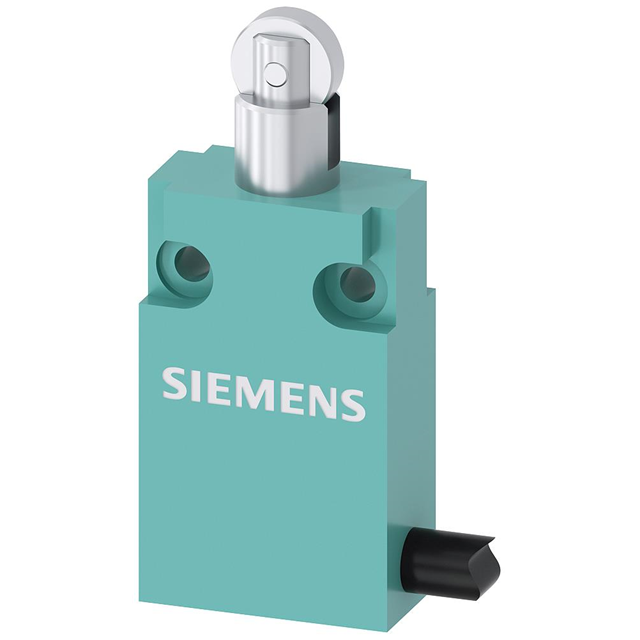

3SE54130CD201EA2

Active

Siemens

SWITCH LIMIT DPST 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3SE5 Position and Safety Switches Brochure +2

3SE54130CD201EA2

Active

Siemens

SWITCH LIMIT DPST 6A 125V

Deep-Dive with AI

DocumentsDatasheet 3SE5 Position and Safety Switches Brochure +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3SE54130CD201EA2

Actuator Type	Roller Plunger
Circuit	DPST-NO/NC
Current Rating (Amps)	550 mA, 6 A
Electrical Life	100000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	5000000 Cycles
Mounting Type	Chassis Mount
Operating Force	1530 gf
Switch Function	Off-Mom, On-Mom
Termination Style	Cable Leads
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

3SE5413 Series

Part	Circuit	Mechanical Life	Mounting Type	Switch Function	Termination Style	Operating Force	Voltage Rating - DC	Current Rating (Amps)	Voltage Rating - AC	Ingress Protection	Electrical Life	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]
Siemens 3SE54130CD201EA2	DPST-NO/NC	5000000 Cycles	Chassis Mount	Off-Mom On-Mom	Cable Leads	1530 gf	125 VDC	6 A 550 mA	125 V	IP67 - Dust Tight Waterproof	100000 Cycles	Roller Plunger
Siemens 3SE54130CP201EA2	DPST-NO/NC	5000000 Cycles	Chassis Mount	Off-Mom On-Mom	Cable Leads		125 VDC	6 A 550 mA	125 V	IP67 - Dust Tight Waterproof	100000 Cycles	Roller Side Rotary	-25 °C	85 °C
Siemens 3SE54130CD211EA2	DPST-NO/NC	5000000 Cycles	Chassis Mount	Off-Mom On-Mom	Cable Leads	1530 gf	125 VDC	6 A 550 mA	125 V	IP67 - Dust Tight Waterproof	100000 Cycles	Roller Plunger	-25 °C	85 °C
Siemens 3SE54130CC201EB1	DPST-NO/NC	10000000 Cycles	Chassis Mount	Off-Mom On-Mom	Connector	2039 gf	125 VDC	6 A 550 mA	125 V	IP67 - Dust Tight Waterproof	100000 Cycles	Round (Pin Plunger)	-25 °C	85 °C
Siemens 3SE54130CC201EA5	DPST-NO/NC	10000000 Cycles	Chassis Mount	Off-Mom On-Mom	Cable Leads	2039 gf	125 VDC	6 A 550 mA	125 V	IP67 - Dust Tight Waterproof	100000 Cycles	Round (Pin Plunger)	-25 °C	85 °C
Siemens 3SE54130CN201EA5	DPST-NO/NC	5000000 Cycles	Chassis Mount	Off-Mom On-Mom	Cable Leads		125 VDC	6 A 550 mA	125 V	IP67 - Dust Tight Waterproof	100000 Cycles	Roller Side Rotary	-25 °C	85 °C
Siemens 3SE54130CQ201EA2	DPST-NO/NC	5000000 Cycles	Chassis Mount	Off-Mom On-Mom	Cable Leads		125 VDC	3 A 270 mA	125 V	IP67 - Dust Tight Waterproof	500000 Cycles	Side Rotary Adjustable Roller	-25 °C	80 C
Siemens 3SE54130CN201EB1	DPST-NO/NC	5000000 Cycles	Chassis Mount	Off-Mom On-Mom	Connector		125 VDC	6 A 550 mA	125 V	IP67 - Dust Tight Waterproof	100000 Cycles	Roller Side Rotary	-25 °C	85 °C
Siemens 3SE54130CN201EA2	DPST-NO/NC	5000000 Cycles	Chassis Mount	Off-Mom On-Mom	Cable Leads		125 VDC	6 A 550 mA	125 V	IP67 - Dust Tight Waterproof	100000 Cycles	Roller Side Rotary	-25 °C	85 °C
Siemens 3SE54130CD231EA2	DPST-NO/NC	5000000 Cycles	Chassis Mount	Off-Mom On-Mom	Cable Leads	1530 gf	125 VDC	6 A 550 mA	125 V	IP67 - Dust Tight Waterproof	100000 Cycles	Roller Plunger	-25 °C	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 128.50
		10	$ 106.38
		25	$ 98.67
		50	$ 96.05
