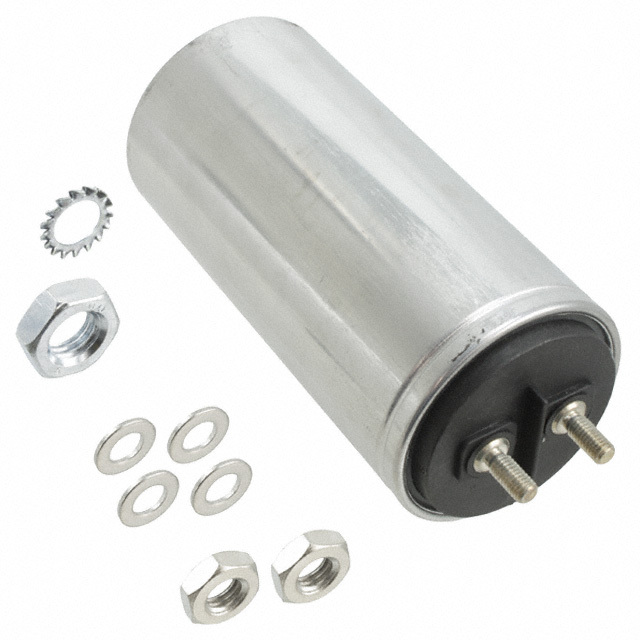

C44AHGP5750ZA0J

Active

KEMET

CAP FILM 75UF 5% 600VDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 75UF 5% 600VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	C44AHGP5750ZA0J

Applications	General Purpose
Capacitance	75 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	5 mOhm
Height - Seated (Max) [Max] [z]	140 mm
Height - Seated (Max) [Max] [z]	5.512 in
Lead Spacing	22.3 mm
Lead Spacing	0.878 in
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	65 mm
Size / Dimension [diameter]	2.559 in
Termination	Threaded, Male
Tolerance	5 %
Voltage Rating - AC	330 V
Voltage Rating - DC	600 V

Part	Capacitance	Lead Spacing	Lead Spacing	Termination	Package / Case	Voltage Rating - DC	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	ESR (Equivalent Series Resistance)	Mounting Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Dielectric Material	Tolerance
KEMET C44AHGP5750ZA0J	75 µF	22.3 mm	0.878 in	Threaded Male	Radial Can	600 V	65 mm	2.559 in	General Purpose	5 mOhm	Chassis Stud Mount	330 V	85 °C	-40 °C	140 mm	5.512 in	Metallized Polypropylene (PP)	5 %
KEMET C44AHGP5600ZB0J	60 µF	22.3 mm	0.878 in	Threaded Male	Radial Can	600 V	60 mm	2.362 in	General Purpose	5 mOhm	Chassis Mount	330 V	85 °C	-40 °C	140 mm	5.512 in	Metallized Polypropylene (PP)	5 %
KEMET C44AHGP6100ZA0J	100 µF	22.3 mm	0.878 in	Threaded Male	Radial Can	600 V	76 mm	2.992 in	General Purpose	5 mOhm	Chassis Stud Mount	330 V	85 °C	-40 °C	138 mm	5.433 in	Metallized Polypropylene (PP)	5 %
KEMET C44AHGP5400ZB0J	40 µF	22.3 mm	0.878 in	Threaded Male	Radial Can	600 V	60 mm	2.362 in	General Purpose	2 mOhms	Chassis Mount	330 V	85 °C	-40 °C	103 mm	4.055 in	Metallized Polypropylene (PP)	5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

75 µF Film Capacitor 330V 600V Polypropylene (PP), Metallized Radial, Can
