Q-2I00P0005003M
ActiveAmphenol Custom Cable

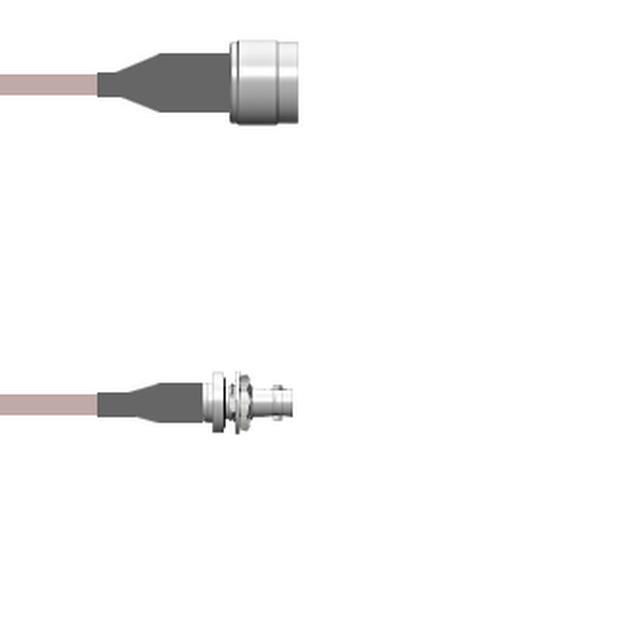

CBL ASSY HDBNC-NTYPE JCK-PL 9.8'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2I00P0005003M
ActiveAmphenol Custom Cable
CBL ASSY HDBNC-NTYPE JCK-PL 9.8'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2I00P0005003M |
|---|---|
| 1st Connector | HD-BNC Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 3 m |
| Length | 118.1 in |
| Length | 9.8 ' |
| Overall Impedance | 50 Ohms |
| Style | HD-BNC to N-Type |
Q-2I00P0 Series
| Part | 1st Connector | Length | Length | Length | Style | 1st Connector Mounting Type | Color | Frequency - Max [Max] | Cable Type | Overall Impedance | 1st Contact Gender | 2nd Connector Mounting Type | 1st Connector Mounting Feature | 2nd Contact Gender | 2nd Connector | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | HD-BNC Jack | 1200 mm | 4 ft | 48 in | HD-BNC to N-Type | Panel Mount | Black | 6000 MHz | RG-174 | 50 Ohms | Female | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Male | N-Type Plug | Shielded |
Amphenol Custom Cable | HD-BNC Jack | 609.6 mm | 24 " | HD-BNC to N-Type | Panel Mount | Copper | 6000 MHz | RG-316 | 50 Ohms | Female | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Male | N-Type Plug | Shielded | |
Amphenol Custom Cable | HD-BNC Jack | 750 mm | 29.53 " | HD-BNC to N-Type | Panel Mount | Black | 6000 MHz | RG-174 | 50 Ohms | Female | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Male | N-Type Plug | Shielded | |
Amphenol Custom Cable | HD-BNC Jack | 3 m | 9.8 ' | 118.1 in | HD-BNC to N-Type | Panel Mount | Copper | 6000 MHz | RG-316 | 50 Ohms | Female | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Male | N-Type Plug | Shielded |
Amphenol Custom Cable | HD-BNC Jack | 2.5 m | 8.2 ' | 98.4 in | HD-BNC to N-Type | Panel Mount | Black | 6000 MHz | RG-174 | 50 Ohms | Female | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Male | N-Type Plug | Shielded |
Amphenol Custom Cable | HD-BNC Jack | 1.8 m | 6 ft | 72 in | HD-BNC to N-Type | Panel Mount | Copper | 6000 MHz | RG-316 | 50 Ohms | Female | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Male | N-Type Plug | Shielded |
Amphenol Custom Cable | HD-BNC Jack | 2 m | 6.6 ft | 78.7 in | HD-BNC to N-Type | Panel Mount | Black | 6000 MHz | RG-174 | 50 Ohms | Female | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Male | N-Type Plug | Shielded |
Amphenol Custom Cable | HD-BNC Jack | 50 cm | 19.69 " | HD-BNC to N-Type | Panel Mount | Black | 6000 MHz | RG-174 | 50 Ohms | Female | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Male | N-Type Plug | Shielded | |
Amphenol Custom Cable | HD-BNC Jack | 91.44 cm | 36 in | HD-BNC to N-Type | Panel Mount | Black | 6000 MHz | RG-174 | 50 Ohms | Female | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Male | N-Type Plug | Shielded | |
Amphenol Custom Cable | HD-BNC Jack | 152.4 mm | 6 in | HD-BNC to N-Type | Panel Mount | Black | 6000 MHz | RG-174 | 50 Ohms | Female | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Male | N-Type Plug | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 112.63 | |
| 25 | $ 104.85 | |||
| 50 | $ 97.07 | |||
| 100 | $ 90.40 | |||
| 250 | $ 84.85 | |||
Description
General part information
Q-2I00P0 Series
Cable Assembly Coaxial HD-BNC to N-Type RG-316 118.1" (3.0m) 9.8'
Documents
Technical documentation and resources
No documents available
