112-024-113R001

Active

NorComp Inc.

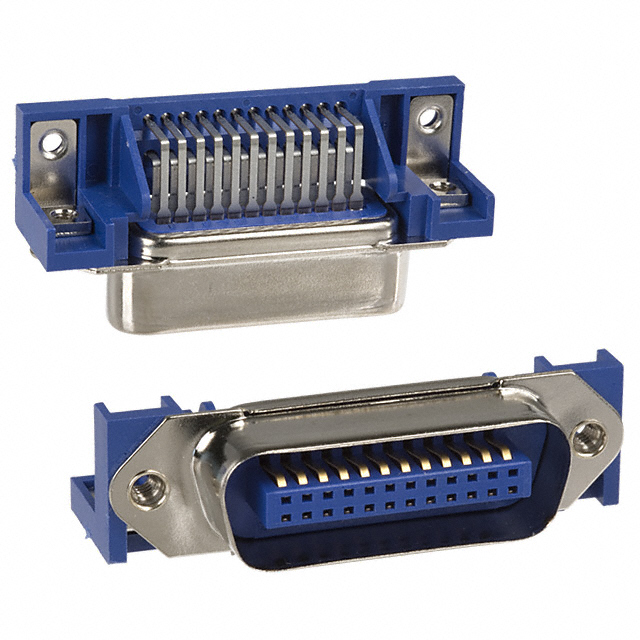

I/O CONNECTOR, 24 CONTACTS, PLUG, SCSI, THROUGH HOLE, 112 SERIES, PCB MOUNT

Search across all available documentation for this part.

Active

NorComp Inc.

I/O CONNECTOR, 24 CONTACTS, PLUG, SCSI, THROUGH HOLE, 112 SERIES, PCB MOUNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	112-024-113R001	112-024 Series

Connector Style	Center Strip Contacts	Center Strip Contacts, Outer Shroud Contacts
Connector Type	Plug	Plug, Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Features	-	Bail Lock
Flange Feature	Housing/Shell (4-40)	Housing/Shell (4-40)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	24	24
Number of Rows	2	2
Termination	Solder	Solder
Type	SCSI	SCSI

112-024-113R491 ROHS COMPLIANT: YES

Part	Contact Finish Thickness	Connector Type	Number of Positions	Type	Termination	Contact Finish	Mounting Type	Flange Feature	Connector Style	Number of Rows	Features
NorComp Inc. 112-024-113R491	Flash	Plug	24	SCSI	Solder	Gold	Through Hole, Right Angle	Housing/Shell (4-40)	Center Strip Contacts	2
NorComp Inc. 112-024-113R001	Flash	Plug	24	SCSI	Solder	Gold	Through Hole, Right Angle	Housing/Shell (4-40)	Center Strip Contacts	2
NorComp Inc. 112-024-213R001	Flash	Receptacle	24	SCSI	Solder	Gold	Through Hole, Right Angle	Housing/Shell (4-40)	Outer Shroud Contacts	2	Bail Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 Position Plug Connector SCSI Through Hole, Right Angle Solder
