3-828590-4
ObsoleteTE Connectivity AMP Connectors

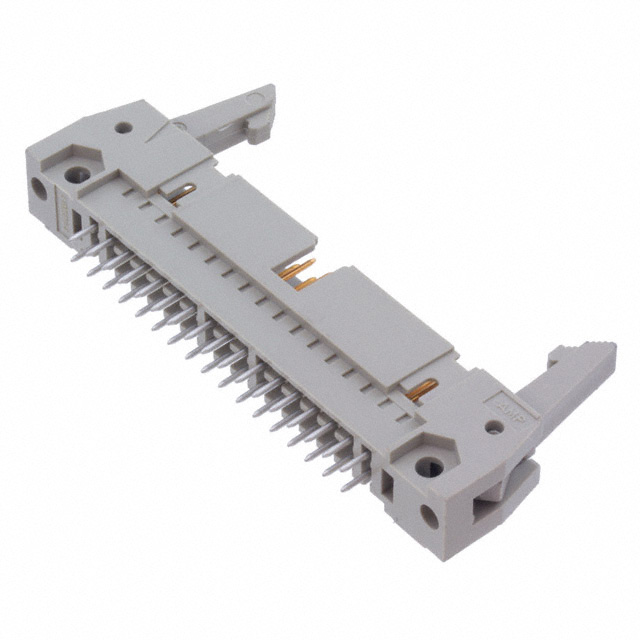

CONN HEADER VERT 34POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-828590-4
ObsoleteTE Connectivity AMP Connectors
CONN HEADER VERT 34POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-828590-4 | 828590 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 31.5 µin | 31.5 µin |
| Contact Finish Thickness - Mating | 0.8 µm | 0.8 µm |
| Contact Finish Thickness - Post | 3 µm | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin | 118.1 µin |
| Contact Length - Post | 0.118 in | 0.118 in |
| Contact Length - Post | 3 mm | 3 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks | Latch Lock/Eject Hooks |
| Insulation Color | Gray | Gray |
| Insulation Height [z] | 0.346 in | 0.346 in |
| Insulation Height [z] | 8.8 mm | 8.8 mm |
| Insulation Material | Polyester, Glass Filled | Polyester, Glass Filled |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 34 | 20 - 50 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Overall Contact Length | 0.652 in | 0.652 in |
| Overall Contact Length | 16.56 mm | 16.56 mm |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
828590 Series
CONN HEADER VERT 50POS 2.54MM
| Part | Fastening Type | Number of Positions Loaded | Style | Termination | Insulation Height [z] | Insulation Height [z] | Contact Shape | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Contact Length - Post | Contact Length - Post | Insulation Material | Shrouding | Contact Material | Contact Finish - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish - Mating | Connector Type | Overall Contact Length | Overall Contact Length | Number of Rows | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Insulation Color | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-828590-0 | Latch Lock/Eject Hooks | All | Board to Cable/Wire | Solder | 0.346 in | 8.8 mm | Circular | 50 | 31.5 µin | 0.8 µm | Male Pin | 0.118 in | 3 mm | Polyester, Glass Filled | Shrouded - 4 Wall | Brass | Tin | 2.54 mm | 0.1 in | Gold or Gold-Palladium | Header | 0.652 in | 16.56 mm | 2 | 3 µm | 118.1 µin | 0.1 in | 2.54 mm | Gray | Through Hole | |
TE Connectivity AMP Connectors 3-828590-4 | Latch Lock/Eject Hooks | All | Board to Cable/Wire | Solder | 0.346 in | 8.8 mm | Circular | 34 | 31.5 µin | 0.8 µm | Male Pin | 0.118 in | 3 mm | Polyester, Glass Filled | Shrouded - 4 Wall | Brass | Tin | 2.54 mm | 0.1 in | Gold or Gold-Palladium | Header | 0.652 in | 16.56 mm | 2 | 3 µm | 118.1 µin | 0.1 in | 2.54 mm | Gray | Through Hole | |
TE Connectivity AMP Connectors 1-828590-6 | Latch Lock/Eject Hooks | All | Board to Cable/Wire | Solder | 0.346 in | 8.8 mm | Circular | 31.5 µin | 0.8 µm | Male Pin | 0.118 in | 3 mm | Polyester, Glass Filled | Shrouded - 4 Wall | Brass | Tin | 2.54 mm | 0.1 in | Gold or Gold-Palladium | Header | 0.652 in | 16.56 mm | 2 | 3 µm | 118.1 µin | 0.1 in | 2.54 mm | Gray | Through Hole | 16 | |
TE Connectivity AMP Connectors 2-828590-0 | Latch Lock/Eject Hooks | All | Board to Cable/Wire | Solder | 0.346 in | 8.8 mm | Circular | 20 | 31.5 µin | 0.8 µm | Male Pin | 0.118 in | 3 mm | Polyester, Glass Filled | Shrouded - 4 Wall | Brass | Tin | 2.54 mm | 0.1 in | Gold or Gold-Palladium | Header | 0.652 in | 16.56 mm | 2 | 3 µm | 118.1 µin | 0.1 in | 2.54 mm | Gray | Through Hole | |
TE Connectivity AMP Connectors 4-828590-0 | Latch Lock/Eject Hooks | All | Board to Cable/Wire | Solder | 0.346 in | 8.8 mm | Circular | 40 | 31.5 µin | 0.8 µm | Male Pin | 0.118 in | 3 mm | Polyester, Glass Filled | Shrouded - 4 Wall | Brass | Tin | 2.54 mm | 0.1 in | Gold or Gold-Palladium | Header | 0.652 in | 16.56 mm | 2 | 3 µm | 118.1 µin | 0.1 in | 2.54 mm | Gray | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
828590 Series
Connector Header Through Hole 34 position 0.100" (2.54mm)
