M2023BB1W03

Obsolete

NKK Switches

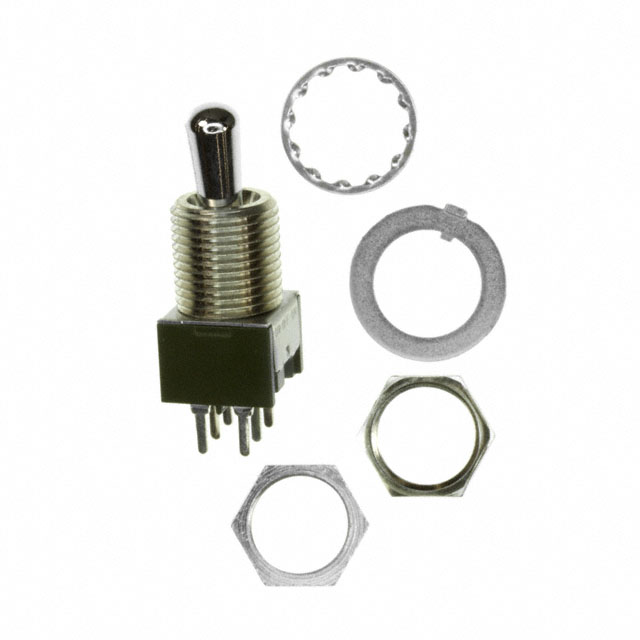

SWITCH TOGGLE DPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2023BB1W03

Actuator Length [x]	11.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	DPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Panel Cutout Dimensions [diameter]	Bushing Thread	Bushing Thread	Voltage Rating - DC	Termination Style	Switch Function	Actuator Length [x]	Circuit	Illumination	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Current Rating (Amps)	Voltage Rating - AC	Electrical Life	Features
NKK Switches M2023BB1W01-AT402S	12.5 mm	M12	1 x 1	30 V	Solder Lug	On-Off-On	11.5 mm	DPDT	Non-Illuminated	Standard Round	-30 ░C	85 °C	Brass Chrome Plated	3 A 6 A	125 V	25000 Steps
NKK Switches M2023BB1W03	12.5 mm	M12	1 x 1	30 V	PC Pin	On-Off-On	11.5 mm	DPDT	Non-Illuminated	Standard Round	-30 ░C	85 °C	Brass Chrome Plated	3 A 6 A	125 V	25000 Steps	Epoxy Sealed Terminals
NKK Switches M2023BB1G01	12.5 mm	M12	1 x 1	28 V	Solder Lug	On-Off-On	11.5 mm	DPDT	Non-Illuminated	Standard Round	-30 ░C	85 °C	Brass Chrome Plated	0.4 VA	28 V	50000 Cycles	Epoxy Sealed Terminals
NKK Switches M2023BB1W01-RA	12.5 mm	M12	1 x 1	30 V	Solder Lug	On-Off-On	12.3 mm	DPDT	Non-Illuminated	Standard Round with Cap	-30 ░C	85 °C	Brass Chrome Plated	3 A 6 A	125 V	25000 Steps	Black Cap
NKK Switches M2023BB1W01	12.5 mm	M12	1 x 1	30 V	Solder Lug	On-Off-On	11.5 mm	DPDT	Non-Illuminated	Standard Round	-30 ░C	85 °C	Brass Chrome Plated	3 A 6 A	125 V	25000 Steps	Epoxy Sealed Terminals
NKK Switches M2023BB1G02	12.5 mm	M12	1 x 1	28 V	Quick Connect - 0.062" (1.5mm)	On-Off-On	11.5 mm	DPDT	Non-Illuminated	Standard Round	-30 ░C	85 °C	Brass Chrome Plated	0.4 VA	28 V	50000 Cycles	Epoxy Sealed Terminals
