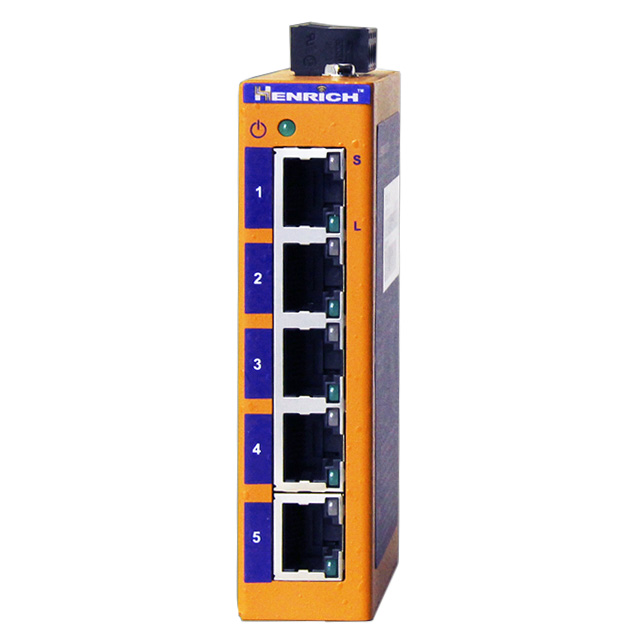

HES5B-LC-VL

Obsolete

Henrich Electronics Corporation

NETWORK SWITCH-UNMANAGED 5 PORT

Search across all available documentation for this part.

Obsolete

Henrich Electronics Corporation

NETWORK SWITCH-UNMANAGED 5 PORT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 157.16

General part information

Network Switch - Unmanaged 5 Ports IP30

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	HES5B-LC-VL	HES5 Series

Configuration	Fixed	Fixed, SFP
Connector Type	LC, RJ45	LC, RJ45, FC
Copper Ports	4	4 - 5
Copper Type	10/100	10/100, 1000, 10, 100
Fiber Ports	1	1
Fiber Type	100BASE-FX (Multimode, Singlemode)	100BASE-FX (Multimode, Singlemode), 100BASE-FX (Singlemode)
Ingress Protection	IP30	IP30, IP40
Mounting Type	DIN Rail	DIN Rail
Number of Ports	5	5
Operating Temperature [Max]	60 °C	60 - 75 °C
Operating Temperature [Min]	-10 °C	-40 - -10 °C
PoE Ports	-	4
Type	Switch - Unmanaged	Switch - Unmanaged
Voltage - Input [Max]	36 V, 24 VAC	24 - 52 V
Voltage - Input [Min]	12 V, 10 VAC	9 - 12 V

NETWORK SWITCH-UNMANAGED 5 PORT

Part	Fiber Ports	Copper Ports	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Fiber Type	Mounting Type	Number of Ports	Copper Type	Ingress Protection	Type	Configuration	Connector Type	PoE Ports
Henrich Electronics Corporation HES5B-LC-VL	1	4	24 VAC, 36 V	10 VAC, 12 V	-10 °C	60 °C	100BASE-FX (Multimode, Singlemode)	DIN Rail	5	10/100	IP30	Switch - Unmanaged	Fixed	LC, RJ45
Henrich Electronics Corporation HES5G-VLW		5	24 VAC, 36 V	10 VAC, 12 V	-40 °C	75 ░C		DIN Rail	5	10, 100, 1000	IP30	Switch - Unmanaged	Fixed	RJ45
Henrich Electronics Corporation HES5A-4E60-VL		5	52 VDC	9 VDC	-40 °C	60 °C		DIN Rail	5	10/100	IP40	Switch - Unmanaged	Fixed	RJ45	4
Henrich Electronics Corporation HES5M-SFC53-VLW	1	4	24 VAC, 36 V	10 VAC, 12 V	-40 °C	75 ░C	100BASE-FX (Singlemode)	DIN Rail	5	10/100	IP30		Fixed, SFP	FC, RJ45
