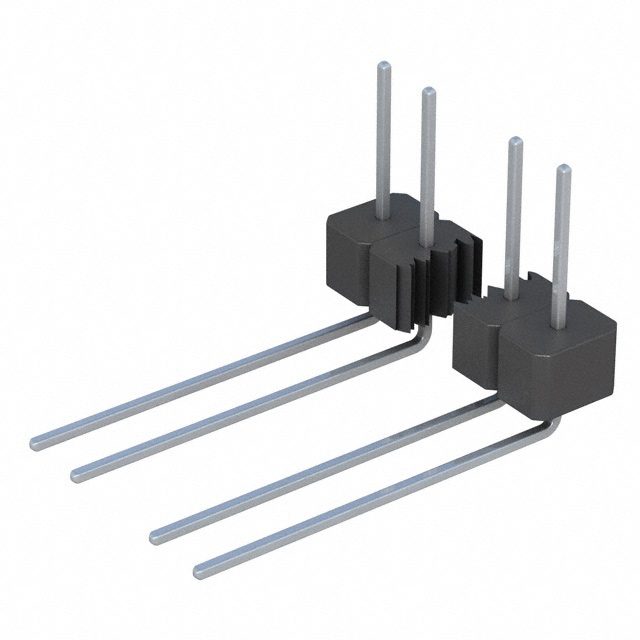

PTC29SBEN

Obsolete

Sullins Connector Solutions

CONN HEADER R/A 29POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTC29SBEN

Obsolete

Sullins Connector Solutions

CONN HEADER R/A 29POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTC29SBEN

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	13.21 mm
Contact Length - Post	0.52 "
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polyester, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	29
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PTC29 Series

Part	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Color	Material Flammability Rating	Number of Positions	Number of Positions Loaded	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Termination	Style	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Current Rating (Amps)	Mounting Type	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Connector Type	Contact Type	Fastening Type	Contact Material	Shrouding	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PTC29SFDN	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	UL94 V-0	29	All	Polyester Thermoplastic	2.54 çm	100 çin	Square	Solder	Board to Board Cable	Tin	10.67 mm	0.42 in	2.54 µm	100 µin	1	3 A	Through Hole	21.29 mm	0.838 in	0.1 in	2.54 mm	Header	Male Pin	Push-Pull	Copper Alloy	Unshrouded
Sullins Connector Solutions PTC29SFCN	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	UL94 V-0	29	All	Polyester Thermoplastic	2.54 çm	100 çin	Square	Solder	Board to Board Cable	Tin	8.13 mm	0.32 in	2.54 µm	100 µin	1	3 A	Through Hole	18.75 mm	0.738 "	0.1 in	2.54 mm	Header	Male Pin	Push-Pull	Copper Alloy	Unshrouded
Sullins Connector Solutions PTC29SAAN	0.1 in	2.54 mm	0.23 in		Black	UL94 V-0	29	All	Polyester Thermoplastic	2.54 çm	100 çin	Square	Solder	Board to Board Cable	Tin	3.05 mm	0.12 in	2.54 µm	100 µin	1	3 A	Through Hole	11.43 mm	0.45 "	0.1 in	2.54 mm	Header	Male Pin	Push-Pull	Copper Alloy	Unshrouded	5.84 mm
Sullins Connector Solutions PTC29DBAN	0.1 in	2.54 mm	0.23 in		Black	UL94 V-0	58	All	Polyester Thermoplastic	2.54 çm	100 çin	Square	Solder	Board to Board Cable	Tin	3.05 mm	0.12 in	2.54 µm	100 µin	2	3 A	Through Hole Right Angle			0.24 in	6.1 mm	Header	Male Pin	Push-Pull	Copper Alloy	Unshrouded	5.84 mm	2.54 mm	0.1 in
Sullins Connector Solutions PTC29SBEN	0.1 in	2.54 mm	0.23 in		Black	UL94 V-0	29	All	Polyester Thermoplastic	2.54 çm	100 çin	Square	Solder	Board to Board Cable	Tin			2.54 µm	100 µin	1	3 A	Through Hole Right Angle			0.14 in	3.56 mm	Header	Male Pin	Push-Pull	Copper Alloy	Unshrouded	5.84 mm			13.21 mm	0.52 "
Sullins Connector Solutions PTC29SGAN	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	UL94 V-0	29	All	Polyester Thermoplastic	2.54 çm	100 çin	Square	Solder	Board to Board Cable	Tin	3.05 mm	0.12 in	2.54 µm	100 µin	1	3 A	Through Hole Right Angle			0.14 in	3.56 mm	Header	Male Pin	Push-Pull	Copper Alloy	Unshrouded
Sullins Connector Solutions PTC29DFAN	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	UL94 V-0	58	All	Polyester Thermoplastic	2.54 çm	100 çin	Square	Solder	Board to Board Cable	Tin	3.05 mm	0.12 in	2.54 µm	100 µin	2	3 A	Through Hole	13.67 mm	0.538 "	0.1 in	2.54 mm	Header	Male Pin	Push-Pull	Copper Alloy	Unshrouded		2.54 mm	0.1 in
Sullins Connector Solutions PTC29DFBN	0.1 in	2.54 mm	0.318 "	8.08 mm	Black	UL94 V-0	58	All	Polyester Thermoplastic	2.54 çm	100 çin	Square	Solder	Board to Board Cable	Tin			2.54 µm	100 µin	2	3 A	Through Hole	16.21 mm	0.638 in	0.1 in	2.54 mm	Header	Male Pin	Push-Pull	Copper Alloy	Unshrouded		2.54 mm	0.1 in	5.58 mm	0.22 in
Sullins Connector Solutions PTC29SBBN	0.1 in	2.54 mm	0.23 in		Black	UL94 V-0	29	All	Polyester Thermoplastic	2.54 çm	100 çin	Square	Solder	Board to Board Cable	Tin			2.54 µm	100 µin	1	3 A	Through Hole Right Angle			0.14 in	3.56 mm	Header	Male Pin	Push-Pull	Copper Alloy	Unshrouded	5.84 mm			5.84 mm	0.23 in
Sullins Connector Solutions PTC29DABN	0.1 in	2.54 mm	0.23 in		Black	UL94 V-0	58	All	Polyester Thermoplastic	2.54 çm	100 çin	Square	Solder	Board to Board Cable	Tin			2.54 µm	100 µin	2	3 A	Through Hole	14.22 mm	0.56 in	0.1 in	2.54 mm	Header	Male Pin	Push-Pull	Copper Alloy	Unshrouded	5.84 mm	2.54 mm	0.1 in	5.84 mm	0.23 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PTC29 Series

Connector Header Through Hole, Right Angle 29 position 0.100" (2.54mm)
