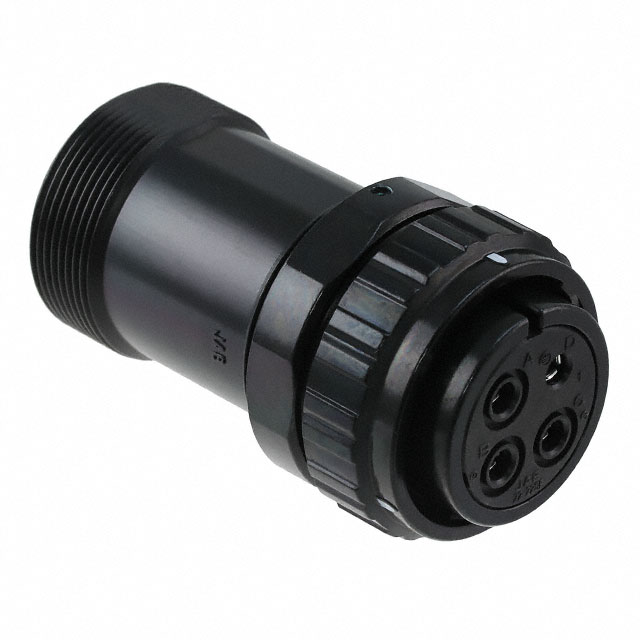

JL10-6A22-22SE-EB1
ActiveJAE Electronics
CONN PLUG FMALE 4P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JL10-6A22-22SE-EB1
ActiveJAE Electronics
CONN PLUG FMALE 4P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JL10-6A22-22SE-EB1 |
|---|---|
| Applications | Industrial, Test Equipment & Measurement, Communication Systems |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Fastening Type | Bayonet Lock |
| Features | Backshell, Ground, Coupling Nut |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Synthetic Resin |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Zinc |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert [Max] | 22 |
| Shell Size - Insert [Min] | 22 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 106.97 | |
| 10 | $ 98.16 | |||
| 25 | $ 94.38 | |||
| 40 | $ 91.24 | |||
| 80 | $ 86.20 | |||
Description
General part information
JL10-6A2 Series
4 (3 + PE) Position Circular Connector Plug, Female Sockets Solder Cup
