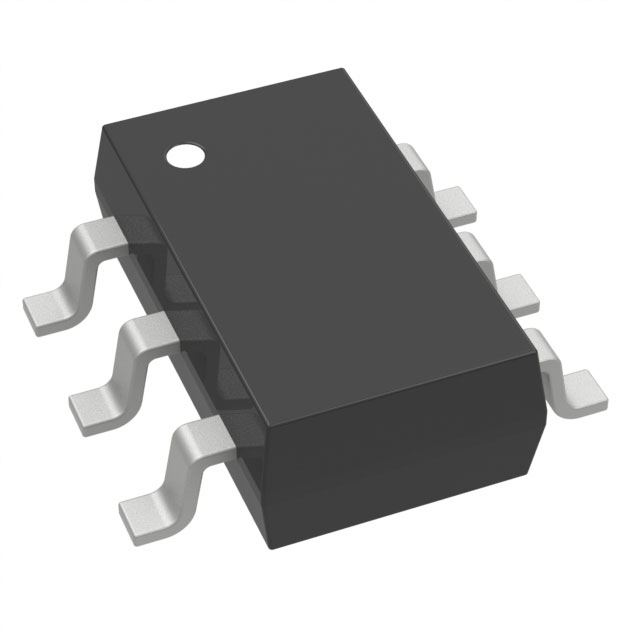

TPS562209DDCR
ActiveTexas Instruments
17 V INPUT, 2A SYNCHRONOUS STEP-DOWN REGULATOR IN SOT-23 6-SOT-23-THIN -40 TO 125
Deep-Dive with AI
Search across all available documentation for this part.
TPS562209DDCR
ActiveTexas Instruments
17 V INPUT, 2A SYNCHRONOUS STEP-DOWN REGULATOR IN SOT-23 6-SOT-23-THIN -40 TO 125
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS562209DDCR | TPS562209 Series |
|---|---|---|
| Board Type | - | Fully Populated |
| Current - Output | 2 A | 2 A |
| Frequency - Switching | 650 kHz | 650 kHz |
| Function | Step-Down | Step-Down |
| Main Purpose | - | DC/DC, Step Down |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Outputs and Type | - | Non-Isolated |
| Outputs and Type | - | 1 |
| Package / Case | TSOT-23-6, SOT-23-6 Thin | TSOT-23-6, SOT-23-6 Thin |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | SOT-23-THIN | SOT-23-THIN |
| Synchronous Rectifier | True | True |
| Topology | Buck | Buck |
| Utilized IC / Part | - | TPS562209 |
| Voltage - Input | - | 4.5 V |
| Voltage - Input | - | 17 V |
| Voltage - Input (Max) [Max] | 17 V | 17 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Output | - | 1.05 V |
| Voltage - Output (Max) [Max] | 7 V | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS562209 Series
EVAL BOARD BUCK REG TPS562209
| Part | Voltage - Input [Min] | Voltage - Input [Max] | Outputs and Type | Outputs and Type | Main Purpose | Board Type | Frequency - Switching | Current - Output | Voltage - Output | Utilized IC / Part | Supplied Contents | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Synchronous Rectifier | Topology | Voltage - Input (Min) [Min] | Voltage - Output (Max) [Max] | Function | Package / Case | Output Configuration | Voltage - Input (Max) [Max] | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS562209EVM-601TPS562209 D-CAP2™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board | 4.5 V | 17 V | Non-Isolated | 1 | DC/DC, Step Down | Fully Populated | 650 kHz | 2 A | 1.05 V | TPS562209 | Board(s) | ||||||||||||||
Texas Instruments TPS562209DDCRThe TPS562209 and TPS563209 are simple, easy-to-use, 2-A and 3-A synchronous step-down converters in 6 pin SOT-23 package.
The devices are optimized to operate with minimum external component counts and also optimized to achieve low standby current.
These switch mode power supply (SMPS) devices employ D-CAP2™ mode control providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components.
TPS562209 and TPS563209 always operate in continuous conduction mode, which reduces the output ripple voltage in light load compared to discontinous conduction mode. TPS56x209 are available in a 6-pin 1.6 × 2.9(mm) SOT (DDC) package, and specified from –40°C to 150°C of junction temperature.
The TPS562209 and TPS563209 are simple, easy-to-use, 2-A and 3-A synchronous step-down converters in 6 pin SOT-23 package.
The devices are optimized to operate with minimum external component counts and also optimized to achieve low standby current.
These switch mode power supply (SMPS) devices employ D-CAP2™ mode control providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components.
TPS562209 and TPS563209 always operate in continuous conduction mode, which reduces the output ripple voltage in light load compared to discontinous conduction mode. TPS56x209 are available in a 6-pin 1.6 × 2.9(mm) SOT (DDC) package, and specified from –40°C to 150°C of junction temperature. | 650 kHz | 2 A | Adjustable | 85 °C | -40 °C | 1 | Buck | 4.5 V | 7 V | Step-Down | SOT-23-6 Thin, TSOT-23-6 | Positive | 17 V | Surface Mount | SOT-23-THIN | ||||||||||
Texas Instruments TPS562209DDCTThe TPS562209 and TPS563209 are simple, easy-to-use, 2-A and 3-A synchronous step-down converters in 6 pin SOT-23 package.
The devices are optimized to operate with minimum external component counts and also optimized to achieve low standby current.
These switch mode power supply (SMPS) devices employ D-CAP2™ mode control providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components.
TPS562209 and TPS563209 always operate in continuous conduction mode, which reduces the output ripple voltage in light load compared to discontinous conduction mode. TPS56x209 are available in a 6-pin 1.6 × 2.9(mm) SOT (DDC) package, and specified from –40°C to 150°C of junction temperature.
The TPS562209 and TPS563209 are simple, easy-to-use, 2-A and 3-A synchronous step-down converters in 6 pin SOT-23 package.
The devices are optimized to operate with minimum external component counts and also optimized to achieve low standby current.
These switch mode power supply (SMPS) devices employ D-CAP2™ mode control providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components.
TPS562209 and TPS563209 always operate in continuous conduction mode, which reduces the output ripple voltage in light load compared to discontinous conduction mode. TPS56x209 are available in a 6-pin 1.6 × 2.9(mm) SOT (DDC) package, and specified from –40°C to 150°C of junction temperature. | 650 kHz | 2 A | Adjustable | 85 °C | -40 °C | 1 | Buck | 4.5 V | 7 V | Step-Down | SOT-23-6 Thin, TSOT-23-6 | Positive | 17 V | Surface Mount | SOT-23-THIN |
Description
General part information
TPS562209 Series
The TPS562209 and TPS563209 are simple, easy-to-use, 2-A and 3-A synchronous step-down converters in 6 pin SOT-23 package.
The devices are optimized to operate with minimum external component counts and also optimized to achieve low standby current.
These switch mode power supply (SMPS) devices employ D-CAP2™ mode control providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components.
