DC08-11SRWA

Obsolete

Kingbright

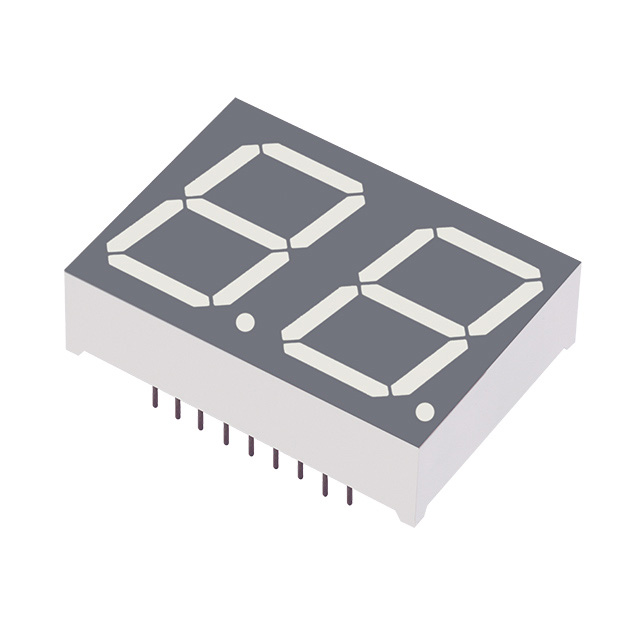

7 SEG NUMERIC DISPLAY, SUPER BRIGHT RED, 20.32MM, ROHS COMPLIANT PACKAGE-18

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DC08-11SRWA

Obsolete

Kingbright

7 SEG NUMERIC DISPLAY, SUPER BRIGHT RED, 20.32MM, ROHS COMPLIANT PACKAGE-18

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC08-11SRWA

Color	Red
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	20.32 mm
Digit/Alpha Size	0.8 in
Display Type	7-Segment
Millicandela Rating	32 mcd
Number of Characters	2
Package / Case	22 mm
Package / Case	18-DIP
Package / Case	0.866 in
Power Dissipation (Max) [Max]	75 mw
Size / Dimension	10 mm, 35.8 mm, 25.85 mm
Size / Dimension [x]	1.018 in
Size / Dimension [y]	1.409 in
Size / Dimension [z]	0.394 in
Voltage - Forward (Vf) (Typ)	1.85 V
Wavelength - Peak	660 nm

DC08-11 Series

Part	Common Pin	Power Dissipation (Max) [Max]	Current - Test	Wavelength - Peak	Millicandela Rating	Package / Case	Package / Case	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Number of Characters	Display Type	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
Kingbright DC08-11SRWA	Common Cathode	75 mw	20 mA	660 nm	32 mcd	22 mm	18-DIP	0.866 in	20.32 mm	0.8 in	0.394 in	1.409 in	10 mm 25.85 mm 35.8 mm	1.018 in	1.85 V	2	7-Segment	Red
Kingbright DC08-11GWA	Common Cathode	62.5 mW	20 mA	565 nm	11 mcd	22 mm	18-DIP	0.866 in	20.32 mm	0.8 in	0.394 in	1.409 in	10 mm 25.85 mm 35.8 mm	1.018 in	2.2 V	2	7-Segment	Green
Kingbright DC08-11SURKWA	Common Cathode	75 mw	20 mA	645 nm	75 mcd	22 mm	18-DIP	0.866 in	20.32 mm	0.8 in	1.4 "	1.01 in		0.394 "	1.95 V	2	7-Segment	Red	25.85 mm	10 mm	35.8 mm
Kingbright DC08-11EWA	Common Cathode	75 mw	20 mA	627 nm	8.8 mcd	22 mm	18-DIP	0.866 in	20.32 mm	0.8 in	0.394 in	1.409 in	10 mm 25.85 mm 35.8 mm	1.018 in	2 V	2	7-Segment	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DC08-11 Series

Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Cathode 1.85V 20mA 1.018" H x 1.409" W x 0.394" D (25.85mm x 35.80mm x 10.00mm) 18-DIP (0.866", 22.00mm)
