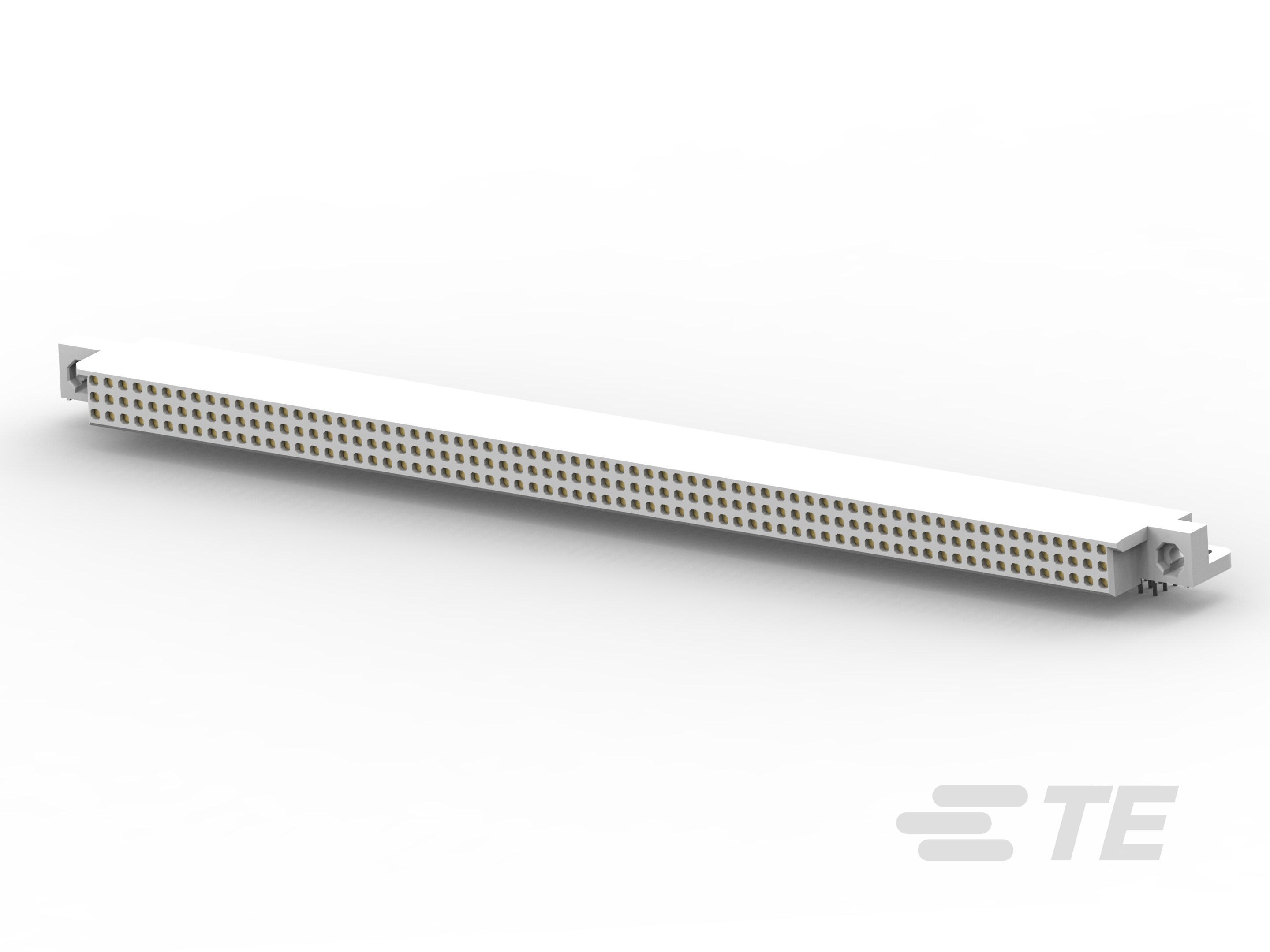

Specification	1-5532431-1

Color	Natural
Connector Style	High Density (HDC, HDI, HPC)
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Mating Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	210
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Pitch	0.1 in
Termination	Solder

5532431 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Contact Finish	Number of Positions Loaded	Pitch	Contact Finish Thickness	Termination	Color	Number of Rows	Connector Style	Number of Positions	Connector Type	Features	Mounting Type
TE Connectivity AMP Connectors 1-5532431-1	125 °C	-65 °C	UL94 V-0	Gold	All	0.1 in	30 µin	Solder	Natural	3	High Density (HDC HDI HPC)	210	Female Sockets Receptacle	Mating Guide	Right Angle Through Hole

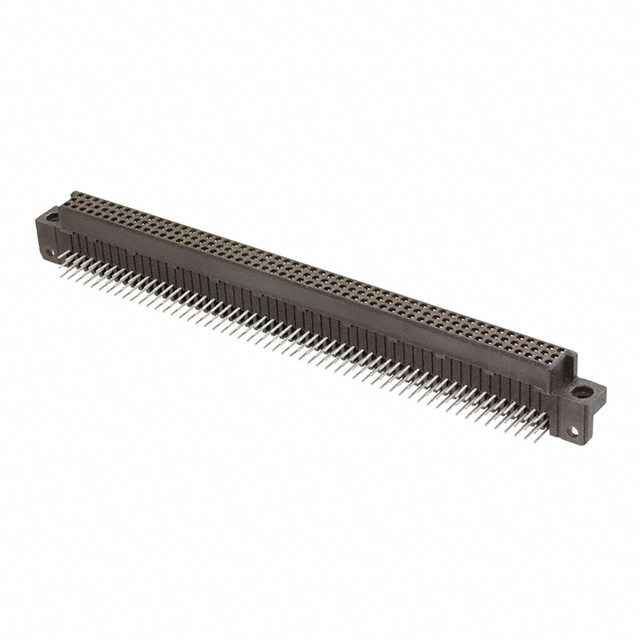

TE Connectivity AMP Connectors 5532431-8	125 °C	-65 °C	UL94 V-0	Gold	All	0.1 in	30 µin	Solder	Natural	3	High Density (HDC HDI HPC)	165	Female Sockets Receptacle	Mating Guide	Right Angle Through Hole
