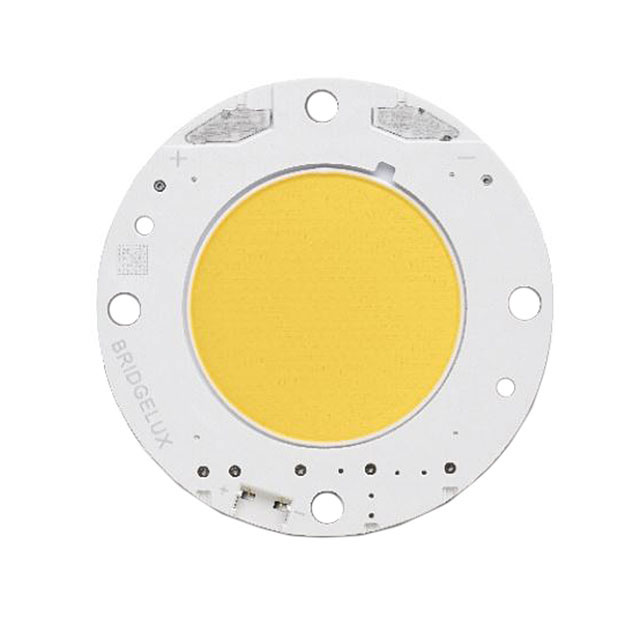

BXRC-65E10K1-D-74
ActiveBRIDGELUX
LED COB VERO 29 WHT RND 6500K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BXRC-65E10K1-D-74
ActiveBRIDGELUX
LED COB VERO 29 WHT RND 6500K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BXRC-65E10K1-D-74 | BXRC-65 Series |
|---|---|---|
| CCT (K) | 6500 K | 6500 K |
| Color | Cool, White | Cool, White |
| Configuration | Round | Round, Starboard |
| CRI (Color Rendering Index) | 80 | 70 - 80 |
| Current - Max [Max] | 4.2 A | 1 - 900 A |
| Current - Test | 2.1 A | 1.05 - 900 mA |
| Features | - | With Connector |
| Height [z] | 1.9 mm | 1.8 - 3.6 mm |
| Lens Type | Flat | Flat |
| Light Emitting Surface (LES) [diameter] | 29.2 mm | 9.9 - 29.2 mm |
| Lumens/Watt @ Current - Test | - | 150 - 195 lm/W |
| Luminous Flux @ Current/Temperature | 13581 lm | 1327 - 21269 lm |
| Size / Dimension [diameter] | 49.2 mm | 20 - 49.2 mm |
| Temperature - Test | - | 25 - 85 °C |
| Type | Chip On Board (COB) | Chip On Board (COB) |
| Viewing Angle | 120 ° | 120 ° |
| Voltage - Forward (Vf) (Typ) | 37.6 V | 25.3 - 69.4 V |
BXRC-65 Series
LED COB VERO 13 WHT RND 6500K
...
| Part | Lumens/Watt @ Current - Test | Type | Size / Dimension [diameter] | Viewing Angle | CRI (Color Rendering Index) | Height [z] | Luminous Flux @ Current/Temperature | Configuration | Voltage - Forward (Vf) (Typ) | CCT (K) | Lens Type | Current - Max [Max] | Temperature - Test | Color | Light Emitting Surface (LES) [diameter] | Current - Test | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BRIDGELUX BXRC-65E2001-C-73 | 158 lm/W | Chip On Board (COB) | 36.2 mm | 120 ° | 80 | 1.9 mm | 3383 lm | Round | 33.9 V | 6500 K | Flat | 1.26 A | 85 °C | Cool, White | 13.2 mm | 630 mA | |
BRIDGELUX BXRC-65C4001-C-74 | 159 lm/W | Chip On Board (COB) | 36.2 mm | 70 | 1.9 mm | 6340 lm | Round | 34.1 V | 6500 K | Flat | 2.34 A | 85 °C | Cool, White | 18.4 mm | With Connector | ||
BRIDGELUX BXRC-65E2001-B-73-SE | 156 lm/W | Chip On Board (COB) | 36.2 mm | 120 ° | 80 | 3.6 mm | 2382 lm | Round | 33.9 V | 6500 K | Flat | 900 mA | 85 °C | Cool, White | 13.4 mm | 450 mA | |
BRIDGELUX BXRC-65C1001-D-73-SE | 155 lm/W | Chip On Board (COB) | 30.8 mm | 120 ° | 70 | 3.6 mm | 1376 lm | Round | 25.3 V | 6500 K | Flat | 700 mA | 85 °C | Cool, White | 9.9 mm | 350 mA | |
BRIDGELUX BXRC-65C1001-C-73 | 173 lm/W | Chip On Board (COB) | 20 mm | 120 ° | 70 | 1.9 mm | 2168 lm | Starboard | 34.8 V | 6500 K | Flat | 720 mA | Cool, White | 9.9 mm | 360 mA | With Connector | |
BRIDGELUX BXRC-65C4001-B-74 | 159 lm/W | Chip On Board (COB) | 36.2 mm | 70 | 1.9 mm | 4876 lm | Round | 34.1 V | 6500 K | Flat | 1.8 A | 85 °C | Cool, White | 18.4 mm | 900 mA | With Connector | |
BRIDGELUX BXRC-65C10K1-B-73-SE | 179 lm/W | Chip On Board (COB) | 49.2 mm | 120 ° | 70 | 3.6 mm | 16754 lm | Round | 52 V | 6500 K | Flat | 3.6 A | Cool, White | 29.2 mm | 1.8 A | ||
BRIDGELUX BXRC-65C1001-D-73 | 173 lm/W | Chip On Board (COB) | 20 mm | 120 | 70 | 1.9 mm | 1575 lm | Starboard | 26 V | 6500 K | Flat | 700 mA | 25 C | Cool, White | 9.9 mm | 350 mA | With Connector |
BRIDGELUX BXRC-65C10K1-C-74 | 179 lm/W | Chip On Board (COB) | 49.2 mm | 120 ° | 70 | 1.9 mm | 21269 lm | Round | 69.4 V | 6500 K | Flat | 3.42 A | Cool, White | 29.2 mm | 1.71 A | ||
BRIDGELUX BXRC-65E10K1-D-74 | Chip On Board (COB) | 49.2 mm | 120 ° | 80 | 1.9 mm | 13581 lm | Round | 37.6 V | 6500 K | Flat | 4.2 A | Cool, White | 29.2 mm | 2.1 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 21.04 | |
Description
General part information
BXRC-65 Series
LED Lighting COBs Engines Modules Chip On Board (COB) Gen 7 Vero® 29 Array White, Cool Round
