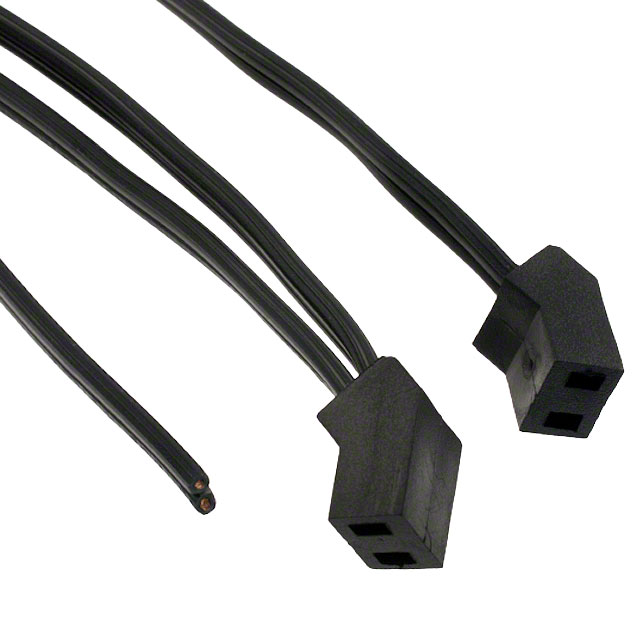

C45-2DC-36

Active

Orion Fans

FAN CORD 45DEG 2POS 36"

Search across all available documentation for this part.

Active

Orion Fans

FAN CORD 45DEG 2POS 36"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C45-2DC-36	C45-2D Series

1st Connector	Fan Terminal Receptacle 45° (2)	Fan Terminal Receptacle 45° (2)
2nd Connector	Open Wires	NEMA 1-15 Plug, Open Wires
Approval Agency Marking	cURus, TUV	cURus, TUV
Cord Type	SPT-1	SPT-1
Features	Daisy Chain	Daisy Chain
Length	91.44 cm	1.52 - 304.8 mm
Length	36 in	5 - 72 in
Length	-	2.13 - 609.6 mm
Length	-	12 - 84 in
Number of Conductors	2	2
Style	Female Receptacle to Cable	Female Receptacle to Male Plug, Female Receptacle to Cable
Wire Gauge	18 AWG	18 AWG

RCP CORD, 45DEG, 24INCH, ORIONS FANS ROHS COMPLIANT: YES

Part	Style	2nd Connector	1st Connector	Features	Cord Type	Length [x]	Length [x]	Number of Conductors	Approval Agency Marking	Wire Gauge	Length	Length
Orion Fans C45-2DC-24P	Female Receptacle to Male Plug	NEMA 1-15 Plug	Fan Terminal Receptacle 45° (2)	Daisy Chain	SPT-1	609.6 mm	24 in	2	cURus, TUV	18 AWG
Orion Fans C45-2DC-144P	Female Receptacle to Male Plug	NEMA 1-15 Plug	Fan Terminal Receptacle 45° (2)	Daisy Chain	SPT-1			2	cURus, TUV	18 AWG
Orion Fans C45-2DC-24	Female Receptacle to Cable	Open Wires	Fan Terminal Receptacle 45° (2)	Daisy Chain	SPT-1		12 in	2	cURus, TUV	18 AWG	304.8 mm
Orion Fans C45-2DC-36	Female Receptacle to Cable	Open Wires	Fan Terminal Receptacle 45° (2)	Daisy Chain	SPT-1			2	cURus, TUV	18 AWG	91.44 cm	36 in
Orion Fans C45-2DC-72P	Female Receptacle to Male Plug	NEMA 1-15 Plug	Fan Terminal Receptacle 45° (2)	Daisy Chain	SPT-1			2	cURus, TUV	18 AWG	1.83 m	72 in
Orion Fans C45-2DC-60	Female Receptacle to Cable	Open Wires	Fan Terminal Receptacle 45° (2)	Daisy Chain	SPT-1			2	cURus, TUV	18 AWG	1.52 m	5 '
Orion Fans C45-2DC-84	Female Receptacle to Cable	Open Wires	Fan Terminal Receptacle 45° (2)	Daisy Chain	SPT-1	2.13 m	84 "	2	cURus, TUV	18 AWG
Orion Fans C45-2DC24-72P	Female Receptacle to Male Plug	NEMA 1-15 Plug	Fan Terminal Receptacle 45° (2)	Daisy Chain	SPT-1			2	cURus, TUV	18 AWG	1.83 m	72 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 3.05

General part information

Fan Power Cord Fan Terminal Receptacle 45° (2) 36.0" (914.4mm) Open Wires
