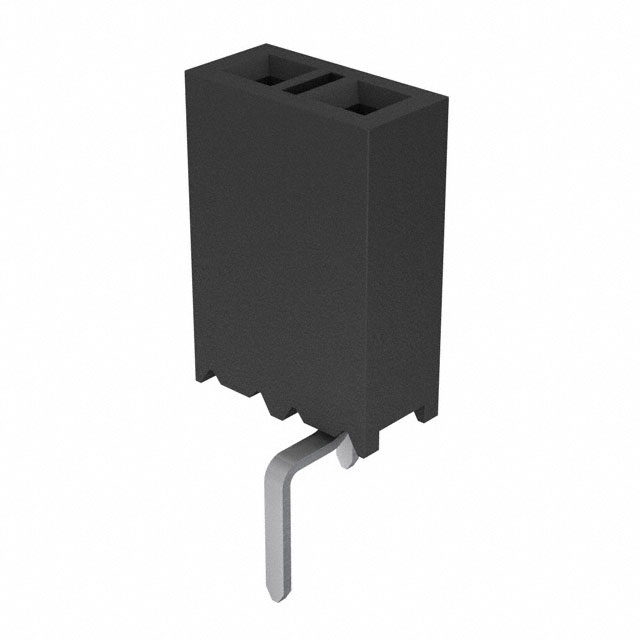

BCS-102-L-S-PE-BE

Active

Samtec Inc.

CONN RCPT 2POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBCS Datasheet Datasheet +1

BCS-102-L-S-PE-BE

Active

Samtec Inc.

CONN RCPT 2POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsBCS Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BCS-102-L-S-PE-BE

Connector Type	Receptacle, Pass Through
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.128 "
Contact Length - Post	3.25 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	4.6 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	7.37 mm
Insulation Height	0.29 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	475 VAC

BCS-102 Series

Part	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Shape	Contact Material	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions Loaded	Number of Positions	Current Rating (Amps)	Number of Rows	Connector Type	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Termination	Contact Finish - Post	Mounting Type	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded
Samtec Inc. BCS-102-F-D-DE-BE	475 VAC	2.54 mm	0.1 in	7.37 mm	0.29 in	Square	Phosphor Bronze	Push-Pull	-55 °C	125 °C	Female Socket	All	4	4.6 A	2	Receptacle Bottom or Top Entry	0.1 in	2.54 mm	0.12 in	3.05 mm	Black	3 µin	0.076 µm	UL94 V-0	Solder	Tin	Through Hole	Gold
Samtec Inc. BCS-102-F-S-HE	475 VAC					Square	Phosphor Bronze	Push-Pull	-55 °C	125 °C	Female Socket	All	2	4.6 A	1	Receptacle	0.1 in	2.54 mm	0.125 in	3.18 mm	Black	3 µin	0.076 µm	UL94 V-0	Solder	Tin	Through Hole Right Angle	Gold
Samtec Inc. BCS-102-F-S-PE	475 VAC			7.37 mm	0.29 in	Square	Phosphor Bronze	Push-Pull	-55 °C	125 °C	Female Socket	All	2	4.6 A	1	Pass Through Receptacle	0.1 in	2.54 mm			Black	3 µin	0.076 µm	UL94 V-0	Solder	Tin	Through Hole	Gold	0.128 "	3.25 mm
Samtec Inc. BCS-102-F-D-PE-BE	475 VAC	2.54 mm	0.1 in	7.37 mm	0.29 in	Square	Phosphor Bronze	Push-Pull	-55 °C	125 °C	Female Socket	All	4	4.6 A	2	Pass Through Receptacle	0.1 in	2.54 mm			Black	3 µin	0.076 µm	UL94 V-0	Solder	Tin	Through Hole	Gold	0.128 "	3.25 mm
Samtec Inc. BCS-102-L-D-PE-001	475 VAC	2.54 mm	0.1 in	7.37 mm	0.29 in	Square	Phosphor Bronze	Push-Pull	-55 °C	125 °C	Female Socket		4	4.6 A	2	Pass Through Receptacle	0.1 in	2.54 mm			Black	10 çin	0.25 çm	UL94 V-0	Solder	Tin	Through Hole	Gold	0.128 "	3.25 mm	2
Samtec Inc. BCS-102-L-D-HE-004	475 VAC	2.54 mm	0.1 in	5.33 mm	0.21 in	Square	Phosphor Bronze	Push-Pull	-55 °C	125 °C	Female Socket		4	4.6 A	2	Receptacle	0.1 in	2.54 mm	0.125 in	3.18 mm	Black	10 çin	0.25 çm	UL94 V-0	Solder	Tin	Through Hole Right Angle	Gold			2
Samtec Inc. BCS-102-S-D-PE-BE	475 VAC	2.54 mm	0.1 in	7.37 mm	0.29 in	Square	Phosphor Bronze	Push-Pull	-55 °C	125 °C	Female Socket	All	4	4.6 A	2	Pass Through Receptacle	0.1 in	2.54 mm			Black	30 Áin	0.76 Ám	UL94 V-0	Solder	Tin	Through Hole	Gold	0.128 "	3.25 mm
Samtec Inc. BCS-102-L-S-PE-BE	475 VAC			7.37 mm	0.29 in	Square	Phosphor Bronze	Push-Pull	-55 °C	125 °C	Female Socket	All	2	4.6 A	1	Pass Through Receptacle	0.1 in	2.54 mm			Black	10 çin	0.25 çm	UL94 V-0	Solder	Tin	Through Hole	Gold	0.128 "	3.25 mm
Samtec Inc. BCS-102-T-S-DE	475 VAC			7.37 mm	0.29 in	Square	Phosphor Bronze	Push-Pull	-55 °C	125 °C	Female Socket	All	2	4.6 A	1	Receptacle Bottom or Top Entry	0.1 in	2.54 mm	0.12 in	3.05 mm	Black			UL94 V-0	Solder	Tin	Through Hole
Samtec Inc. BCS-102-L-D-HE-003	475 VAC	2.54 mm	0.1 in	5.33 mm	0.21 in	Square	Phosphor Bronze	Push-Pull	-55 °C	125 °C	Female Socket		4	4.6 A	2	Receptacle	0.1 in	2.54 mm	0.125 in	3.18 mm	Black	10 çin	0.25 çm	UL94 V-0	Solder	Tin	Through Hole Right Angle	Gold			2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.08
		50	$ 0.90
		100	$ 0.77
		500	$ 0.68
		1000	$ 0.61

Description

General part information

BCS-102 Series

2 Position Receptacle, Pass Through Connector 0.100" (2.54mm) Through Hole Gold
