845-053-521-603

Active

EDAC Inc.

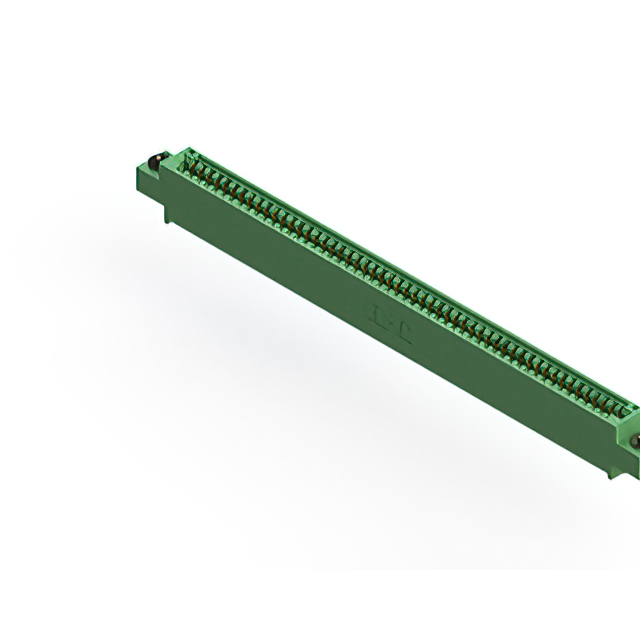

CONN EDGE SINGLE FML 53POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-053-521-603

Active

EDAC Inc.

CONN EDGE SINGLE FML 53POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-053-521-603

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	53
Number of Positions/Bay/Row [custom]	53
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

845-053 Series

...

Part	Flange Feature	Read Out	Termination	Contact Material	Pitch [x]	Pitch [x]	Card Type	Number of Positions	Color	Contact Type	Number of Positions/Bay/Row [custom]	Termination Rows	Gender	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Contact Finish	Number of Rows	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 845-053-540-408	4-40 Threaded Insert Top Mount Opening	Single	Wire Wrap	Copper Alloy	2.54 mm	0.1 in	Non Specified - Single Edge	53	Green	Cantilever	53	1	Female	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	Gold	1	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C
EDAC Inc. 845-053-520-602		Single	Solder	Copper Alloy	2.54 mm	0.1 in	Non Specified - Single Edge	53	Green	Cantilever	53	1	Female	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	Gold	1	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	3.25 mm	0.128 in
EDAC Inc. 845-053-544-402		Single	Wire Wrap	Copper Alloy	2.54 mm	0.1 in	Non Specified - Single Edge	53	Green	Cantilever	53	1	Female	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	Gold	1	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	3.25 mm	0.128 in
EDAC Inc. 845-053-524-602		Single	Solder	Copper Alloy	2.54 mm	0.1 in	Non Specified - Single Edge	53	Green	Cantilever	53	1	Female	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	Gold	1	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	3.25 mm	0.128 in
EDAC Inc. 845-053-558-604	Top Mount Opening Unthreaded	Single	Solder	Copper Alloy	2.54 mm	0.1 in	Non Specified - Single Edge	53	Green	Cantilever	53	1	Female	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	Gold	1	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C			0.156 in	3.96 mm
EDAC Inc. 845-053-541-108	4-40 Flush Mount Threaded Insert Top Opening	Single	Wire Wrap	Copper Alloy	2.54 mm	0.1 in	Non Specified - Single Edge	53	Green	Cantilever	53	1	Female	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	Gold	1	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C
EDAC Inc. 845-053-558-612	Side Mount Opening Unthreaded	Single	Solder	Copper Alloy	2.54 mm	0.1 in	Non Specified - Single Edge	53	Green	Cantilever	53	1	Female	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	Gold	1	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	3.25 mm	0.128 in
EDAC Inc. 845-053-558-602		Single	Solder	Copper Alloy	2.54 mm	0.1 in	Non Specified - Single Edge	53	Green	Cantilever	53	1	Female	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	Gold	1	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	3.25 mm	0.128 in
EDAC Inc. 845-053-523-104	Flush Mount Top Opening Unthreaded	Single	Solder	Copper Alloy	2.54 mm	0.1 in	Non Specified - Single Edge	53	Green	Cantilever	53	1	Female	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	Gold	1	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C			0.156 in	3.96 mm
EDAC Inc. 845-053-521-603	Floating Bobbin Top Mount Opening	Single	Solder	Copper Alloy	2.54 mm	0.1 in	Non Specified - Single Edge	53	Green	Cantilever	53	1	Female	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	Gold	1	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C			0.116 in	2.95 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 118.60
Newark	Each	1	$ 136.91
		100	$ 98.45
		250	$ 86.73
		500	$ 78.95
		1000	$ 63.63

Description

General part information

845-053 Series

53 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
