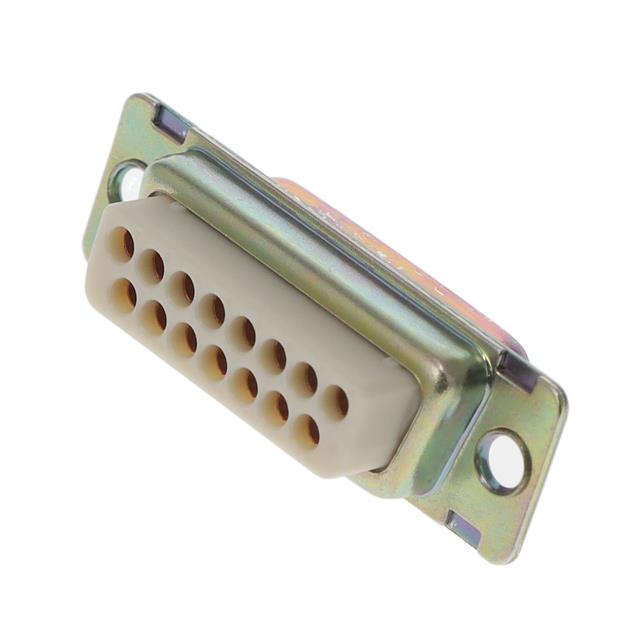

M24308/2-282Z

Active

ITT Cannon, LLC

DSUB SOCKET 15CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M24308/2-282Z

Active

ITT Cannon, LLC

DSUB SOCKET 15CONTACTS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/2-282Z

Connector Style	D-Sub
Connector Type	Receptacle for Female Contacts
Contact Type	Signal
Dielectric Material	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Yellow Chromate Plated Zinc
Shell Size, Connector Layout	2

M24308/2 Series

Part	Features	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Connector Type	Shell Material, Finish	Dielectric Material	Number of Rows	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Flange Feature	Contact Type	Number of Positions	Termination	Note	Mating Cycles	Shell Size, Connector Layout	Mounting Type	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
ITT Cannon, LLC M24308/2-362F
ITT Cannon, LLC M24308/2-14Z	Shielded	Gold	-55 °C	150 °C	D-Sub High Density	Receptacle Female Sockets	Steel Yellow Chromate Plated Zinc	Thermoplastic	3	4	50 µin	1.27 µm	7.5 A	Housing/Shell (Unthreaded)	Signal	62	Crimp
ITT Cannon, LLC M24308/2-284F			-55 °C	150 °C	D-Sub	Receptacle for Female Contacts	Steel Yellow Chromate Plated Cadmium	Thermoplastic	2					Housing/Shell (Unthreaded)	Signal	37		Contacts Not Included	500	4 (DC C)	Free Hanging (In-Line)
ITT Cannon, LLC M24308/2-491F			-55 °C	125 °C	D-Sub High Density	Receptacle for Female Contacts	Steel Yellow Chromate Plated Cadmium	Thermoplastic						Housing/Shell (Unthreaded)	Signal	78		Contacts Not Included	500		Free Hanging (In-Line) Panel Mount	Black
ITT Cannon, LLC M24308/2-491Z			-55 °C	150 °C	D-Sub High Density	Receptacle for Female Contacts	Steel Yellow Chromate Plated Zinc	Thermoplastic						Housing/Shell (Unthreaded)	Signal	78		Contacts Not Included	500		Free Hanging (In-Line)
ITT Cannon, LLC M24308/2-282Z			-55 °C	150 °C	D-Sub	Receptacle for Female Contacts	Steel Yellow Chromate Plated Zinc	Thermoplastic	2	2				Housing/Shell (Unthreaded)	Signal	15		Contacts Not Included	500		Free Hanging (In-Line)
ITT Cannon, LLC M24308/2-287Z			-55 °C	125 °C	D-Sub High Density	Receptacle for Female Contacts	Steel Yellow Chromate Plated Zinc	Thermoplastic	3	2				Housing/Shell (Unthreaded)	Signal	26		Contacts Not Included	500	(DA A) High Density	Free Hanging (In-Line) Panel Mount	Black
ITT Cannon, LLC M24308/2-284Z			-55 °C	150 °C	D-Sub	Receptacle for Female Contacts	Steel Yellow Chromate Plated Zinc	Thermoplastic	2					Housing/Shell (Unthreaded)	Signal	37		Contacts Not Included	500	4 (DC C)	Free Hanging (In-Line)
ITT Cannon, LLC M24308/2-1Z	Shielded	Gold	-55 °C	150 °C	D-Sub	Receptacle Female Sockets	Steel Yellow Chromate Plated Zinc	Thermoplastic	2		50 µin	1.27 µm	7.5 A	Housing/Shell (Unthreaded)	Signal	9	Crimp						DE E	1
ITT Cannon, LLC M24308/2-18F

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.98
		1	$ 16.59
		10	$ 14.38
		10	$ 35.97
		25	$ 35.27
		25	$ 13.62
		50	$ 13.43
		50	$ 31.56
		100	$ 28.55
		100	$ 11.85
		250	$ 11.06
		500	$ 10.82

Description

General part information

M24308/2 Series

Receptacle for Female Contacts Housing D-Sub Connector 15 Position
