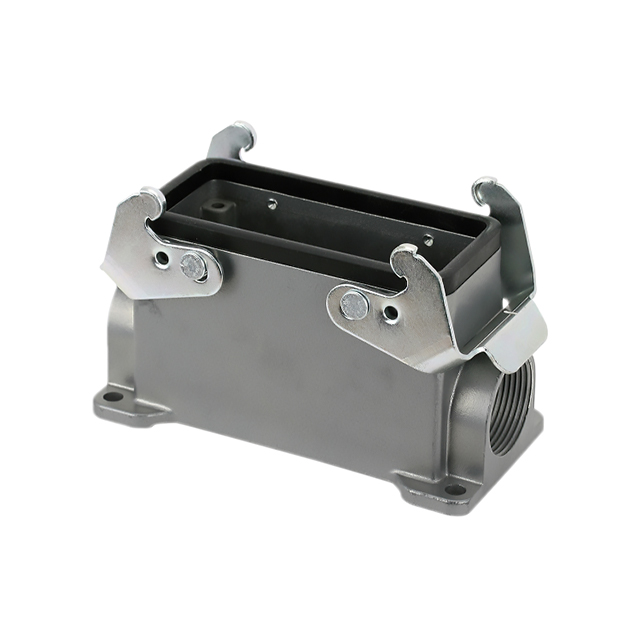

C14610N0165002

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZE16 M32

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C14610N0165002

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZE16 M32

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C14610N0165002

Connector Type	Base - Box Mount
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E16
Size / Dimension [x]	117 mm
Size / Dimension [x]	4.606 "
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	77 mm
Size / Dimension [z]	3.031 in
Style	Side Entry
Thread Size	M32

C14610N016 Series

Part	Style	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Size	Housing Material	Thread Size	Connector Type	Lock Location	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
Amphenol Tuchel Industrial C14610N0166042	Side Entry	117 mm	77 mm	4.606 "	2.244 "	3.031 in	57 mm	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	E16	Aluminum Alloy Die Cast	M32	Base - Box Mount	Locking Clip (2) on Hood
Amphenol Tuchel Industrial C14610N0166012	Side Entry	117 mm	77 mm	4.606 "	2.244 "	3.031 in	57 mm	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	E16	Aluminum Alloy Die Cast	M25	Base - Box Mount	Locking Clip (2) on Base Bottom	Feed Through
Amphenol Tuchel Industrial C14610N0165002	Side Entry	117 mm	77 mm	4.606 "	2.244 "	3.031 in	57 mm	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	E16	Aluminum Alloy Die Cast	M32	Base - Box Mount	Locking Clip (2) on Base Bottom
Amphenol Tuchel Industrial C14610N0166072	Side Entry	117 mm	77 mm	4.606 "	2.244 "	3.031 in	57 mm	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	E16	Aluminum Alloy Die Cast	M25	Base - Box Mount	Locking Clip (1) on Base Bottom
Amphenol Tuchel Industrial C14610N0166002	Side Entry	117 mm	77 mm	4.606 "	2.244 "	3.031 in	57 mm	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	E16	Aluminum Alloy Die Cast	M32	Base - Box Mount	Locking Clip (2) on Base Bottom	Feed Through
Amphenol Tuchel Industrial C14610N0168041	Side Entry	4.606 "	2.52 "				2.244 "	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	E16	Aluminum Alloy Die Cast	M25	Base - Box Mount	Locking Clip (2) on Hood	Cover	57 mm	117 mm	64 mm
Amphenol Tuchel Industrial C14610N0166041	Side Entry	4.606 "	2.52 "				2.244 "	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	E16	Aluminum Alloy Die Cast	M25	Base - Box Mount	Locking Clip (2) on Hood		57 mm	117 mm	64 mm
Amphenol Tuchel Industrial C14610N0168042	Side Entry	117 mm	77 mm	4.606 "	2.244 "	3.031 in	57 mm	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	E16	Aluminum Alloy Die Cast	M32	Base - Box Mount	Locking Clip (2) on Hood	Cover
Amphenol Tuchel Industrial C14610N0168062	Side Entry	117 mm	77 mm	4.606 "	2.244 "	3.031 in	57 mm	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	E16	Aluminum Alloy Die Cast	M32	Base - Box Mount	Locking Clip (1) on Base Bottom	Cover
Amphenol Tuchel Industrial C14610N0166001	Side Entry	4.606 "	2.52 "				2.244 "	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	E16	Aluminum Alloy Die Cast	M25	Base - Box Mount	Locking Clip (2) on Base Bottom	Feed Through	57 mm	117 mm	64 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.33
		10	$ 36.19
		30	$ 34.63
		50	$ 33.51
		100	$ 32.39
		250	$ 30.61

Description

General part information

C14610N016 Series

Base - Box Mount Connector Side Entry M32 E16 IP65 - Dust Tight, Water Resistant
