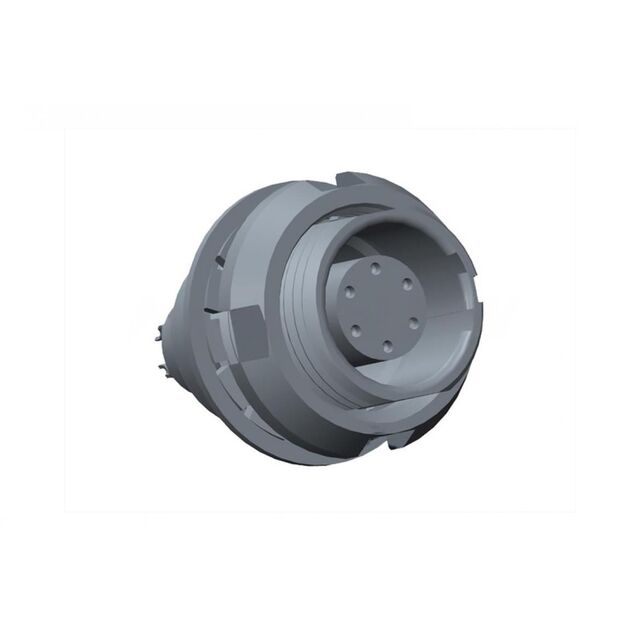

FLBC-06EEFS-ACP-001
ActiveAmphenol LTW
FLOS, LB-SER, SZ 1, 06P, PANEL F
Deep-Dive with AI
Search across all available documentation for this part.
FLBC-06EEFS-ACP-001
ActiveAmphenol LTW
FLOS, LB-SER, SZ 1, 06P, PANEL F
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FLBC-06EEFS-ACP-001 |
|---|---|
| Color | Beige |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 7 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP50 |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 6 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Size - Insert | C-6 |
| Shielding | Shielded |
| Voltage Rating | 350 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.45 | |
| 10 | $ 15.99 | |||
| 100 | $ 13.18 | |||
Description
General part information
FLBC-06EEFS Series
6 Position Circular Connector Receptacle, Female Sockets Solder Cup
Documents
Technical documentation and resources
No documents available
