Q-2I02I0003.75M

Active

Amphenol Custom Cable

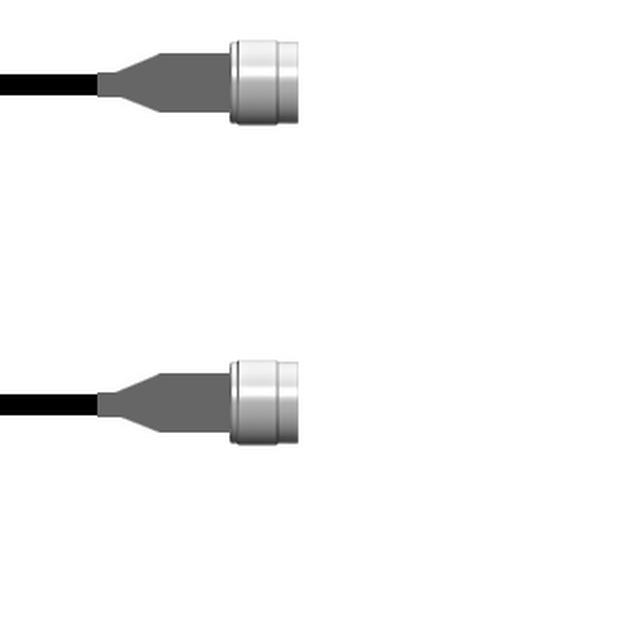

CBL ASSY NTYPE PLUG-PLUG 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I02I0003.75M

Active

Amphenol Custom Cable

CBL ASSY NTYPE PLUG-PLUG 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I02I0003.75M

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-2I02I0 Series

Part	Length	Length	Length	Features	2nd Connector	1st Contact Gender	Style	Frequency - Max [Max]	Cable Type	2nd Connector Mounting Type	Overall Impedance	1st Connector Mounting Type	2nd Contact Gender	Color	Cable Impedance	Connector Impedance	Length [x]	Length [x]
Amphenol Custom Cable Q-2I02I0005004F	1200 mm	4 ft	48 in	Shielded	N-Type Plug	Male	N-Type to N-Type	3 GHz	RG-316	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Male	Copper	50 Ohms	50 Ohms
Amphenol Custom Cable Q-2I02I0003003i	76.2 mm		3 in	Shielded	N-Type Plug	Male	N-Type to N-Type	11 GHz	RG-174	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Male	Black	50 Ohms	50 Ohms
Amphenol Custom Cable Q-2I02I0005024i	609.6 mm		24 "	Shielded	N-Type Plug	Male	N-Type to N-Type	3 GHz	RG-316	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Male	Copper	50 Ohms	50 Ohms
Amphenol Custom Cable Q-2I02I0003072i	1.8 m	6 ft	72 in	Shielded	N-Type Plug	Male	N-Type to N-Type	11 GHz	RG-174	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Male	Black	50 Ohms	50 Ohms
Amphenol Custom Cable Q-2I02I0005003i	76.2 mm		3 in	Shielded	N-Type Plug	Male	N-Type to N-Type	3 GHz	RG-316	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Male	Copper	50 Ohms	50 Ohms
Amphenol Custom Cable Q-2I02I0005060i	1.5 m	5 ft	5 '	Shielded	N-Type Plug	Male	N-Type to N-Type	3 GHz	RG-316	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Male	Copper	50 Ohms	50 Ohms
Amphenol Custom Cable Q-2I02I0003018i				Shielded	N-Type Plug	Male	N-Type to N-Type	11 GHz	RG-174	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Male	Black	50 Ohms	50 Ohms	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2I02I0005001M	1 m	3.3 ft	39.4 in	Shielded	N-Type Plug	Male	N-Type to N-Type	3 GHz	RG-316	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Male	Copper	50 Ohms	50 Ohms
Amphenol Custom Cable Q-2I02I0003.75M	750 mm		29.53 "	Shielded	N-Type Plug	Male	N-Type to N-Type	11 GHz	RG-174	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Male	Black	50 Ohms	50 Ohms
Amphenol Custom Cable Q-2I02I0003024i	609.6 mm		24 "	Shielded	N-Type Plug	Male	N-Type to N-Type	11 GHz	RG-174	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Male	Black	50 Ohms	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 122.22
		25	$ 119.84
		50	$ 117.46
		100	$ 115.08
		250	$ 112.70

Description

General part information

Q-2I02I0 Series

Cable Assembly Coaxial N-Type to N-Type RG-174 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
