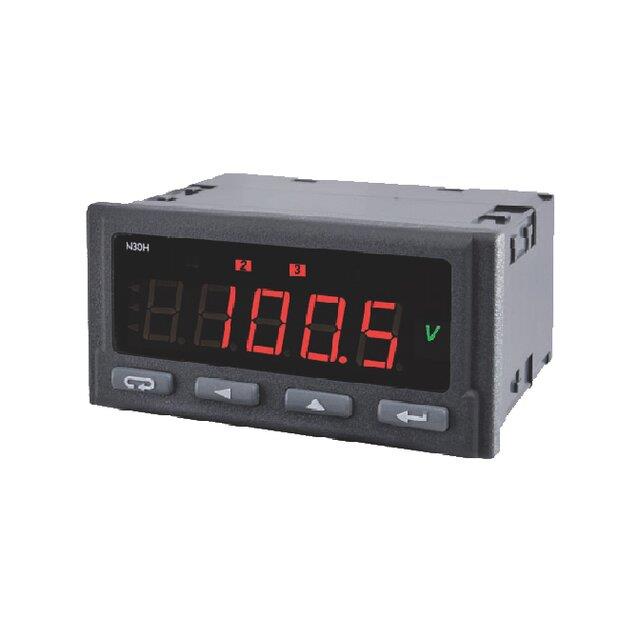

N30H 120000U0

Active

Sifam Tinsley Instrumentation Inc

AMMETER 600VDC LCD PANEL MOUNT

Search across all available documentation for this part.

Active

Sifam Tinsley Instrumentation Inc

AMMETER 600VDC LCD PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	N30H 120000U0

Display Characters - Height [z]	14 mm
Display Characters - Height [z]	0.551 in
Display Type	LCD - Tri Color Characters
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range	±600VDC
Measuring Type	Voltage, Current
Number of Characters Per Row	5
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	92.6 mm
Panel Cutout Dimensions [y]	45.6 mm
Type	Ammeter, Volmeter
Voltage - Supply [Max]	400 Hz, 253 VAC/DC
Voltage - Supply [Min]	40 Hz, 85 VAC

AMMETER 600VDC LCD PANEL MOUNT

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Measuring Range	Type	Ingress Protection	Display Characters - Height [z]	Display Characters - Height [z]	Number of Characters Per Row	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Measuring Type	Display Type	Operating Temperature [Max]	Operating Temperature [Min]
Sifam Tinsley Instrumentation Inc N30H 120000U0	40 Hz, 85 VAC	253 VAC/DC, 400 Hz	±600VDC	Ammeter, Volmeter	IP65 - Dust Tight, Water Resistant	14 mm	0.551 in	5	45.6 mm	92.6 mm	Current, Voltage	LCD - Tri Color Characters	55 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 325.00

General part information

Ammeter, Voltmeter LCD - Tri Color Characters Display Panel Mount
