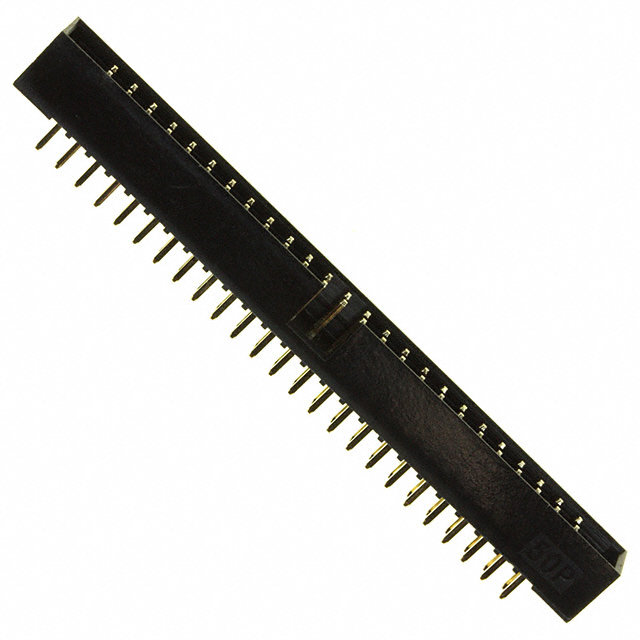

SBH21-NBPN-D25-ST-BK

Active

Sullins Connector Solutions

CONN HEADER VERT 50POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

SBH21-NBPN-D25-ST-BK

Active

Sullins Connector Solutions

CONN HEADER VERT 50POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SBH21-NBPN-D25-ST-BK

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	7.05 mm, 10.45 mm, 14.35 mm, 6 mm, 7 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

SBH21 Series

Part	Contact Shape	Material Flammability Rating	Contact Type	Mated Stacking Heights	Contact Finish Thickness - Post	Contact Finish - Mating	Termination	Contact Finish Thickness - Mating	Current Rating (Amps)	Insulation Height	Insulation Height	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Fastening Type	Contact Finish - Post	Insulation Material	Number of Positions Loaded	Style	Number of Positions	Features	Mounting Type	Number of Rows	Contact Length - Post [x]	Contact Length - Post	Insulation Height [z]
Sullins Connector Solutions SBH21-NBPN-D34-SM-BK	Square	UL94 V-0	Male Pin	6 mm 7 mm 8.4 mm 11.8 mm 15.7 mm	Flash	Gold	Solder	Flash	2 A	5.6 mm	0.22 in	Shrouded - 4 Wall	0.079 in	2 mm	-40 °C	105 ░C	Brass	Black	0.079 in	2 mm	Header	Push-Pull	Gold	Nylon Polyamide (PA)	All	Board to Board Cable	68	Keying Slot	Surface Mount	2
Sullins Connector Solutions SBH21-NBPN-D25-ST-BK	Square	UL94 V-0	Male Pin	6 mm 7 mm 7.05 mm 10.45 mm 14.35 mm	Flash	Gold	Solder	Flash	2 A	5.6 mm	0.22 in	Shrouded - 4 Wall	0.079 in	2 mm	-40 °C	105 ░C	Brass	Black	0.079 in	2 mm	Header	Push-Pull	Gold	Nylon Polyamide (PA)	All	Board to Board Cable	50	Keying Slot	Through Hole	2	0.11 in	2.79 mm
Sullins Connector Solutions SBH21-NBPN-D18-RA-BK	Square	UL94 V-0	Male Pin		Flash	Gold	Solder	Flash	2 A	5.4 mm		Shrouded - 4 Wall	0.079 in	2 mm	-40 °C	105 ░C	Brass	Black	0.079 in	2 mm	Header	Push-Pull	Gold	Nylon Polyamide (PA)	All	Board to Board Cable	36	Keying Slot	Through Hole Right Angle	2	0.11 in	2.79 mm	0.213 in
Sullins Connector Solutions SBH21-NBPN-D30-SM-BK	Square	UL94 V-0	Male Pin	6 mm 7 mm 8.4 mm 11.8 mm 15.7 mm	Flash	Gold	Solder	Flash	2 A	5.6 mm	0.22 in	Shrouded - 4 Wall	0.079 in	2 mm	-40 °C	105 ░C	Brass	Black	0.079 in	2 mm	Header	Push-Pull	Gold	Nylon Polyamide (PA)	All	Board to Board Cable	60	Keying Slot	Surface Mount	2
Sullins Connector Solutions SBH21-NBPN-D13-SM-BK	Square	UL94 V-0	Male Pin	6 mm 7 mm 8.4 mm 11.8 mm 15.7 mm	Flash	Gold	Solder	Flash	2 A	5.6 mm	0.22 in	Shrouded - 4 Wall	0.079 in	2 mm	-40 °C	105 ░C	Brass	Black	0.079 in	2 mm	Header	Push-Pull	Gold	Nylon Polyamide (PA)	All	Board to Board Cable	26	Keying Slot	Surface Mount	2
Sullins Connector Solutions SBH21-NBPN-D14-SM-BK	Square	UL94 V-0	Male Pin	6 mm 7 mm 8.4 mm 11.8 mm 15.7 mm	Flash	Gold	Solder	Flash	2 A	5.6 mm	0.22 in	Shrouded - 4 Wall	0.079 in	2 mm	-40 °C	105 ░C	Brass	Black	0.079 in	2 mm	Header	Push-Pull	Gold	Nylon Polyamide (PA)	All	Board to Board Cable	28	Keying Slot	Surface Mount	2
Sullins Connector Solutions SBH21-NBPN-D11-RA-BK	Square	UL94 V-0	Male Pin		Flash	Gold	Solder	Flash	2 A	5.4 mm		Shrouded - 4 Wall	0.079 in	2 mm	-40 °C	105 ░C	Brass	Black	0.079 in	2 mm	Header	Push-Pull	Gold	Nylon Polyamide (PA)	All	Board to Board Cable	22 positions	Keying Slot	Through Hole Right Angle	2	0.11 in	2.79 mm	0.213 in
Sullins Connector Solutions SBH21-NBPN-D16-SM-BK	Square	UL94 V-0	Male Pin	6 mm 7 mm 8.4 mm 11.8 mm 15.7 mm	Flash	Gold	Solder	Flash	2 A	5.6 mm	0.22 in	Shrouded - 4 Wall	0.079 in	2 mm	-40 °C	105 ░C	Brass	Black	0.079 in	2 mm	Header	Push-Pull	Gold	Nylon Polyamide (PA)	All	Board to Board Cable		Keying Slot	Surface Mount	2
Sullins Connector Solutions SBH21-NBPN-D25-SM-BK-M81RC	Square	UL94 V-0	Male Pin	6 mm 7 mm 8.4 mm 11.8 mm 15.7 mm	Flash	Gold	Solder	Flash	2 A	5.6 mm	0.22 in	Shrouded - 4 Wall	0.079 in	2 mm	-40 °C	105 ░C	Brass	Black	0.079 in	2 mm	Header	Push-Pull	Gold	Nylon Polyamide (PA)	All	Board to Board Cable	50	Keying Slot	Surface Mount	2
Sullins Connector Solutions SBH21-NBPN-D20-RA-BK	Square	UL94 V-0	Male Pin		Flash	Gold	Solder	Flash	2 A	5.4 mm		Shrouded - 4 Wall	0.079 in	2 mm	-40 °C	105 ░C	Brass	Black	0.079 in	2 mm	Header	Push-Pull	Gold	Nylon Polyamide (PA)	All	Board to Board Cable	40	Keying Slot	Through Hole Right Angle	2	0.11 in	2.79 mm	0.213 in
