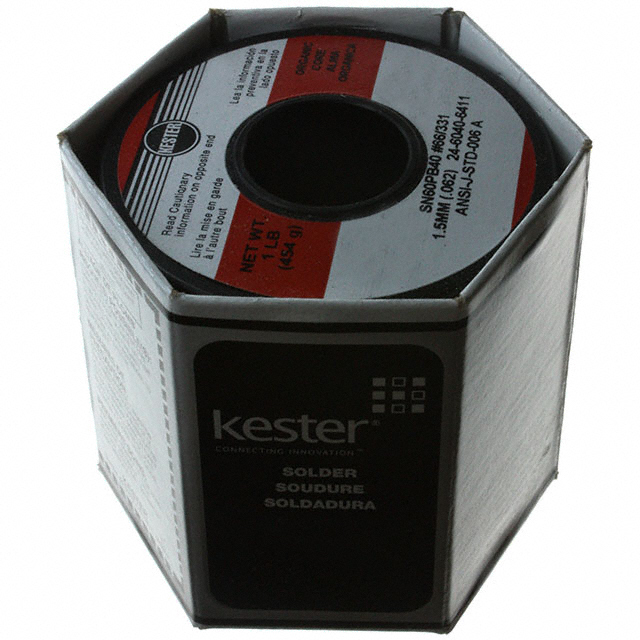

Specification	24-6040-6411

Composition	Pb40, Sn60
Diameter	0.062 in
Flux Type	Water Soluble
Form	Spool
Form Weight	1 lb
Melting Point (Max)	374 °F
Melting Point (Min)	361 °F
Process	Leaded
Shipping Info	Ships with Cold Pack. To ensure customer satisfaction and product integrity, air shipment is recommended.
Type	Wire Solder
Weight	1 lbs
Wire Gauge	16 SWG, 14 AWG

24-6040 Series

Part	Wire Gauge	Composition	Process	Melting Point (Min)	Melting Point (Max)	Flux Type	Form Weight	Form	Shelf Life Start	Storage/Refrigeration Temperature (Minimum)	Storage/Refrigeration Temperature (Maximum)	Shelf Life	Type	Diameter	Weight	Shipping Info
Kester Solder 24-6040-9702	24 AWG 25 SWG	Pb40 Sn60	Leaded	361 °F	374 °F	Rosin Mildly Activated (RMA)	1 lb	Spool	Date of Manufacture	50 °F	104 °F	36 Months	Wire Solder	0.02 in
Kester Solder 24-6040-8802	20 AWG 22 SWG	Pb40 Sn60	Leaded	361 °F	374 °F		1 lb	Spool		50 °F	104 °F		Wire Solder	0.031 in
Kester Solder 24-6040-9713	20 AWG 22 SWG	Pb40 Sn60	Leaded	361 °F	374 °F	Rosin Mildly Activated (RMA)	1 lb	Spool	Date of Manufacture	50 °F	104 °F	36 Months	Wire Solder	0.031 in
Kester Solder 24-6040-0053	16 AWG 18 SWG	Pb40 Sn60	Leaded	361 °F	374 °F	Rosin Activated (RA)	1 lb	Spool	Date of Manufacture	50 °F	104 °F	36 Months	Wire Solder	0.05 in	1 lbs
Kester Solder 24-6040-6411	14 AWG 16 SWG	Pb40 Sn60	Leaded	361 °F	374 °F	Water Soluble	1 lb	Spool					Wire Solder	0.062 in	1 lbs	Ships with Cold Pack. To ensure customer satisfaction and product integrity air shipment is recommended.
Kester Solder 24-6040-8815	16 AWG 18 SWG	Pb40 Sn60	Leaded	361 °F	374 °F		1 lb	Spool		50 °F	104 °F		Wire Solder	0.05 in
Kester Solder 24-6040-0061	14 AWG 16 SWG	Pb40 Sn60	Leaded	361 °F	374 °F	Rosin Activated (RA)	1 lb	Spool	Date of Manufacture	50 °F	104 °F	36 Months	Wire Solder	0.062 in	1 lbs
Kester Solder 24-6040-0026	20 AWG 22 SWG	Pb40 Sn60	Leaded	361 °F	374 °F	Rosin Activated (RA)	1 lb	Spool	Date of Manufacture	50 °F	104 °F	36 Months	Wire Solder	0.031 in
Kester Solder 24-6040-9709	20 AWG 22 SWG	Pb40 Sn60	Leaded	361 °F	374 °F	Rosin Mildly Activated (RMA)	1 lb	Spool	Date of Manufacture	50 °F	104 °F	36 Months	Wire Solder	0.031 in
Kester Solder 24-6040-0069	10 SWG 8 AWG	Pb40 Sn60	Leaded	361 °F	374 °F	Rosin Activated (RA)	1 lb	Spool		50 °F	104 °F		Wire Solder	0.125 in
