LBW6S-3T6

Active

IDEC Corporation

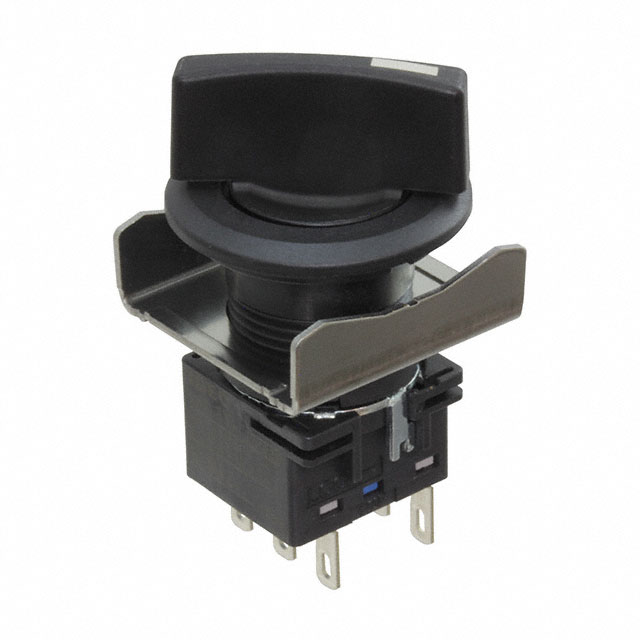

ROTARY SWITCH, 3 POS, 5A, 250VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturer Catalogue EN +1

LBW6S-3T6

Active

IDEC Corporation

ROTARY SWITCH, 3 POS, 5A, 250VAC

Deep-Dive with AI

DocumentsDatasheet Manufacturer Catalogue EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LBW6S-3T6	LBW6S Series

(Select First, Then Apply Filters) Compatible Series	-	IDEC, LBW
Actuator Type	-	Selector
Approval Agency	CSA, CE, UL, TUV	CSA, CE, UL, TUV
Circuit	DPDT	DPDT, 3PDT, SPDT
Current Rating (Amps)	5 A	5 - 100 mA
Electrical Life	50000 Cycles	50000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	250000 Cycles	250000 Cycles
Number of Positions	-	2
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions	-	22.3 mm
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Requires	-	Contact Block(s)
Switch Function	On-Off-On	On-Off-On, Mom-Off-Mom, On-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder, PC Pin
Termination Style	2.8 mm	2.8 mm
Type	Standard	Standard, Momentary, Maintained
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	30 V	30 V

LBW6S Series

ROTARY SWITCH, 3 POSITION, 2 POLE, 45 °, 100 MA, 125 V, LBW SERIES

Part	Switch Function	Termination Style	Termination Style	Termination Style	Type	Illumination	Current Rating (Amps)	Electrical Life	Voltage Rating - DC	Circuit	Mechanical Life	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Ingress Protection	Voltage Rating - AC	Number of Positions	(Select First, Then Apply Filters) Compatible Series	Actuator Type	Requires	Panel Cutout Dimensions
IDEC Corporation LBW6S-3T2	On-Off-On	0.11 in	Quick Connect, Solder	2.8 mm	Standard	Non-Illuminated	100 mA	50000 Cycles	30 V	DPDT	250000 Cycles	CE, CSA, TUV, UL	-25 °C	60 °C	22.3 mm	IP65 - Dust Tight, Water Resistant	125 V
IDEC Corporation LBW6S-33T2V	Mom-Off-Mom		PC Pin		Standard	Non-Illuminated	100 mA	50000 Cycles	30 V	DPDT	250000 Cycles	CE, CSA, TUV, UL	-25 °C	60 °C	22.3 mm	IP65 - Dust Tight, Water Resistant	125 V
IDEC Corporation LBW6S-3T7	On-Off-On	0.11 in	Quick Connect, Solder	2.8 mm	Standard	Non-Illuminated	5 A	50000 Cycles	30 V	3PDT	250000 Cycles	CE, CSA, TUV, UL	-25 °C	60 °C	22.3 mm	IP65 - Dust Tight, Water Resistant	125 V
IDEC Corporation LBW6S-2T2V	On-On		PC Pin		Standard	Non-Illuminated	100 mA	50000 Cycles	30 V	DPDT	250000 Cycles	CE, CSA, TUV, UL	-25 °C	60 °C	22.3 mm	IP65 - Dust Tight, Water Resistant	125 V	2
IDEC Corporation LBW6S-2T3	On-On	0.11 in	Quick Connect, Solder	2.8 mm	Standard	Non-Illuminated	100 mA	50000 Cycles	30 V	3PDT	250000 Cycles	CE, CSA, TUV, UL	-25 °C	60 °C	22.3 mm	IP65 - Dust Tight, Water Resistant	125 V	2
IDEC Corporation LBW6S-33Y					Momentary	Non-Illuminated													IDEC, LBW	Selector	Contact Block(s)	22.3 mm
IDEC Corporation LBW6S-2Y					Maintained	Non-Illuminated													IDEC, LBW	Selector	Contact Block(s)	22.3 mm
IDEC Corporation LBW6S-33T2	Mom-Off-Mom	0.11 in	Quick Connect, Solder	2.8 mm	Standard	Non-Illuminated	100 mA	50000 Cycles	30 V	DPDT	250000 Cycles	CE, CSA, TUV, UL	-25 °C	60 °C	22.3 mm	IP65 - Dust Tight, Water Resistant	125 V
IDEC Corporation LBW6S-2T5	On-On	0.11 in	Quick Connect, Solder	2.8 mm	Standard	Non-Illuminated	5 A	50000 Cycles	30 V	SPDT	250000 Cycles	CE, CSA, TUV, UL	-25 °C	60 °C	22.3 mm	IP65 - Dust Tight, Water Resistant	125 V	2
IDEC Corporation LBW6S-2T3V	On-On		PC Pin		Standard	Non-Illuminated	100 mA	50000 Cycles	30 V	3PDT	250000 Cycles	CE, CSA, TUV, UL	-25 °C	60 °C	22.3 mm	IP65 - Dust Tight, Water Resistant	125 V	2
