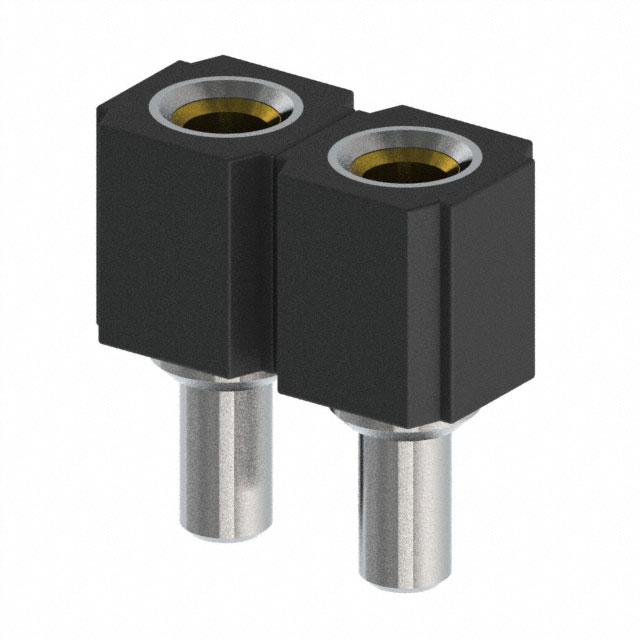

834-43-002-10-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 2POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 834, 835 Series (in.)

834-43-002-10-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 2POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet 834, 835 Series (in.)

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	834-43-002-10-001000

Connector Type	Receptacle, Pass Through
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post	2.03 mm
Contact Length - Post	0.08 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.13 in
Insulation Height	3.3 mm
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

834-43 Series

Part	Contact Finish - Post	Fastening Type	Number of Positions	Connector Type	Material Flammability Rating	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Insulation Height	Insulation Height	Contact Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Type	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Insulation Color	Termination
Mill-Max Manufacturing Corp. 834-43-020-10-001000	Tin	Push-Pull	20	Pass Through Receptacle	UL94 V-0	All	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.13 in	3.3 mm	Beryllium Copper	Through Hole	-55 °C	125 °C	Circular	1	30 Áin	0.76 Ám	0.1 in	2.54 mm	Female Socket	2.03 mm	0.08 in	Gold	Black	Solder
Mill-Max Manufacturing Corp. 834-43-035-10-001000	Tin	Push-Pull	35	Pass Through Receptacle	UL94 V-0	All	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.13 in	3.3 mm	Beryllium Copper	Through Hole	-55 °C	125 °C	Circular	1	30 Áin	0.76 Ám	0.1 in	2.54 mm	Female Socket	2.03 mm	0.08 in	Gold	Black	Solder
Mill-Max Manufacturing Corp. 834-43-050-10-001000	Tin	Push-Pull	50	Pass Through Receptacle	UL94 V-0	All	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.13 in	3.3 mm	Beryllium Copper	Through Hole	-55 °C	125 °C	Circular	1	30 Áin	0.76 Ám	0.1 in	2.54 mm	Female Socket	2.03 mm	0.08 in	Gold	Black	Solder
Mill-Max Manufacturing Corp. 834-43-006-10-001000	Tin	Push-Pull	6	Pass Through Receptacle	UL94 V-0	All	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.13 in	3.3 mm	Beryllium Copper	Through Hole	-55 °C	125 °C	Circular	1	30 Áin	0.76 Ám	0.1 in	2.54 mm	Female Socket	2.03 mm	0.08 in	Gold	Black	Solder
Mill-Max Manufacturing Corp. 834-43-023-10-001000	Tin	Push-Pull	23	Pass Through Receptacle	UL94 V-0	All	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.13 in	3.3 mm	Beryllium Copper	Through Hole	-55 °C	125 °C	Circular	1	30 Áin	0.76 Ám	0.1 in	2.54 mm	Female Socket	2.03 mm	0.08 in	Gold	Black	Solder
Mill-Max Manufacturing Corp. 834-43-018-10-001000	Tin	Push-Pull	18	Pass Through Receptacle	UL94 V-0	All	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.13 in	3.3 mm	Beryllium Copper	Through Hole	-55 °C	125 °C	Circular	1	30 Áin	0.76 Ám	0.1 in	2.54 mm	Female Socket	2.03 mm	0.08 in	Gold	Black	Solder
Mill-Max Manufacturing Corp. 834-43-064-10-001000	Tin	Push-Pull	64	Pass Through Receptacle	UL94 V-0	All	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.13 in	3.3 mm	Beryllium Copper	Through Hole	-55 °C	125 °C	Circular	1	30 Áin	0.76 Ám	0.1 in	2.54 mm	Female Socket	2.03 mm	0.08 in	Gold	Black	Solder
Mill-Max Manufacturing Corp. 834-43-002-10-001000	Tin	Push-Pull	2	Pass Through Receptacle	UL94 V-0	All	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.13 in	3.3 mm	Beryllium Copper	Through Hole	-55 °C	125 °C	Circular	1	30 Áin	0.76 Ám	0.1 in	2.54 mm	Female Socket	2.03 mm	0.08 in	Gold	Black	Solder
Mill-Max Manufacturing Corp. 834-43-028-10-001000	Tin	Push-Pull	28	Pass Through Receptacle	UL94 V-0	All	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.13 in	3.3 mm	Beryllium Copper	Through Hole	-55 °C	125 °C	Circular	1	30 Áin	0.76 Ám	0.1 in	2.54 mm	Female Socket	2.03 mm	0.08 in	Gold	Black	Solder
Mill-Max Manufacturing Corp. 834-43-055-10-001000	Tin	Push-Pull	55 positions	Pass Through Receptacle	UL94 V-0	All	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.13 in	3.3 mm	Beryllium Copper	Through Hole	-55 °C	125 °C	Circular	1	30 Áin	0.76 Ám	0.1 in	2.54 mm	Female Socket	2.03 mm	0.08 in	Gold	Black	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 9.85
		10	$ 8.87
		101	$ 7.93
		505	$ 6.64
		1010	$ 5.87

Description

General part information

834-43 Series

2 Position Receptacle, Pass Through Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

Datasheet

834, 835 Series (in.)

Datasheet
