PE8279

Active

Pasternack

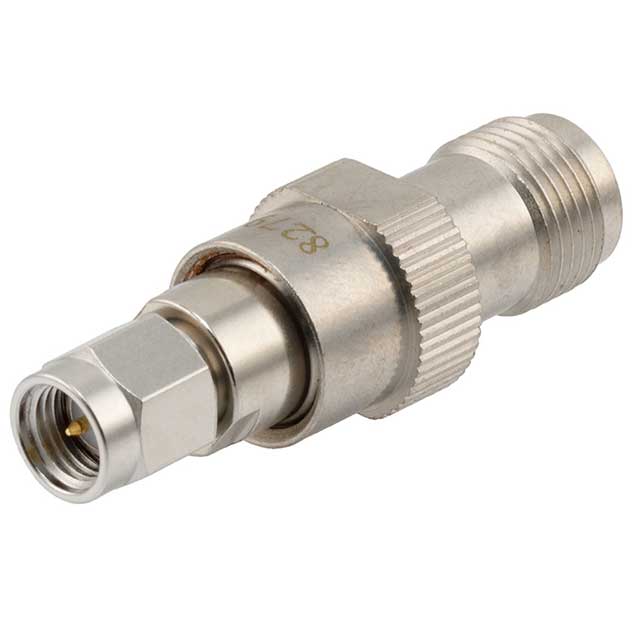

DC BLOCK: SMA-TNC 0.01-3GHZ

Deep-Dive with AI

Search across all available documentation for this part.

PE8279

Active

Pasternack

DC BLOCK: SMA-TNC 0.01-3GHZ

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PE8279	PE827 Series

Adapter Series	SMA to TNC	SMA to TNC, N to N, TNC to TNC, BNC to BNC, BNC to SMA, SMA to SMA
Adapter Type	Plug to Jack	Plug to Jack
Body Finish	Tri-Metal	Tri-Metal
Body Material	Brass	Brass
Center Contact Material	Bronze	Bronze, Brass, Beryllium Copper
Center Contact Plating	Gold	Gold
Conversion Type	Between Series	Between Series, Same Series
Convert From (Adapter End)	SMA Plug, Male Pin	SMA Plug, Male Pin, N Jack, Female Socket, TNC Jack, Female Socket, BNC Jack, SMA Jack
Convert To (Adapter End)	Female Socket, TNC Jack	Female Socket, TNC Jack, Male Pin, N Plug, TNC Plug, BNC Plug, SMA Plug, N Jack
Fastening Type	-	Bayonet Lock, Threaded
Frequency - Max [Max]	3 GHz	1 - 18.5 GHz
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.2 dB	0.2 - 0.6 dB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Style	Straight	Straight

PE827 Series

DC BLOCK: SMA-TNC 0.01-3GHZ

Part	Adapter Series	Adapter Type	Body Finish	Style	Body Material	Frequency - Max [Max]	Convert To (Adapter End)	Convert From (Adapter End)	Center Contact Plating	Impedance	Mounting Type	Insertion Loss	Conversion Type	Center Contact Material	Fastening Type
Pasternack PE8279	SMA to TNC	Plug to Jack	Tri-Metal	Straight	Brass	3 GHz	Female Socket, TNC Jack	SMA Plug, Male Pin	Gold	50 Ohms	Free Hanging (In-Line)	0.2 dB	Between Series	Bronze
Pasternack PE8271	N to N	Plug to Jack	Tri-Metal	Straight	Brass	5 GHz	Male Pin, N Plug	Female Socket, N Jack	Gold	50 Ohms	Free Hanging (In-Line)	0.5 dB	Same Series	Beryllium Copper, Brass
Pasternack PE8272	TNC to TNC	Plug to Jack	Tri-Metal	Straight	Brass	3 GHz	Male Pin, TNC Plug	TNC Jack, Female Socket	Gold	50 Ohms	Free Hanging (In-Line)	0.2 dB	Same Series	Brass, Bronze
Pasternack PE8270	BNC to BNC	Plug to Jack	Tri-Metal	Straight	Brass	3 GHz	BNC Plug, Male Pin	BNC Jack, Female Socket	Gold	50 Ohms	Free Hanging (In-Line)	0.2 dB	Same Series	Bronze	Bayonet Lock
Pasternack PE8278	BNC to SMA	Plug to Jack	Tri-Metal	Straight	Brass	3 GHz	Male Pin, SMA Plug	BNC Jack, Female Socket	Gold	50 Ohms	Free Hanging (In-Line)	0.2 dB	Between Series	Bronze	Bayonet Lock, Threaded
Pasternack PE8277		Plug to Jack	Tri-Metal	Straight	Brass	5 GHz	Female Socket, N Jack	SMA Plug, Male Pin	Gold	50 Ohms	Free Hanging (In-Line)	0.5 dB	Between Series	Beryllium Copper
Pasternack PE8273	SMA to SMA	Plug to Jack	Tri-Metal	Straight	Brass	18.5 GHz	Male Pin, SMA Plug	Female Socket, SMA Jack	Gold	50 Ohms	Free Hanging (In-Line)	0.6 dB	Same Series	Brass
Pasternack PE8274	BNC to BNC	Plug to Jack	Tri-Metal	Straight	Brass	1 GHz	BNC Plug, Male Pin	BNC Jack, Female Socket	Gold	50 Ohms	Free Hanging (In-Line)	0.2 dB	Same Series	Brass, Bronze	Bayonet Lock
Pasternack PE8275	BNC to BNC	Plug to Jack	Tri-Metal	Straight	Brass	1 GHz	BNC Plug, Male Pin	BNC Jack, Female Socket	Gold	50 Ohms	Free Hanging (In-Line)	0.2 dB	Same Series	Brass, Bronze	Bayonet Lock
Pasternack PE8276	N to N	Plug to Jack	Tri-Metal	Straight	Brass	1 GHz	Male Pin, N Plug	Female Socket, N Jack	Gold	50 Ohms	Free Hanging (In-Line)	0.2 dB	Same Series	Beryllium Copper, Bronze

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.99
		25	$ 43.69
		50	$ 41.39
		100	$ 39.55

Description

General part information

PE827 Series

Adapter Coaxial Connector SMA Plug, Male Pin To TNC Jack, Female Socket 50 Ohms
