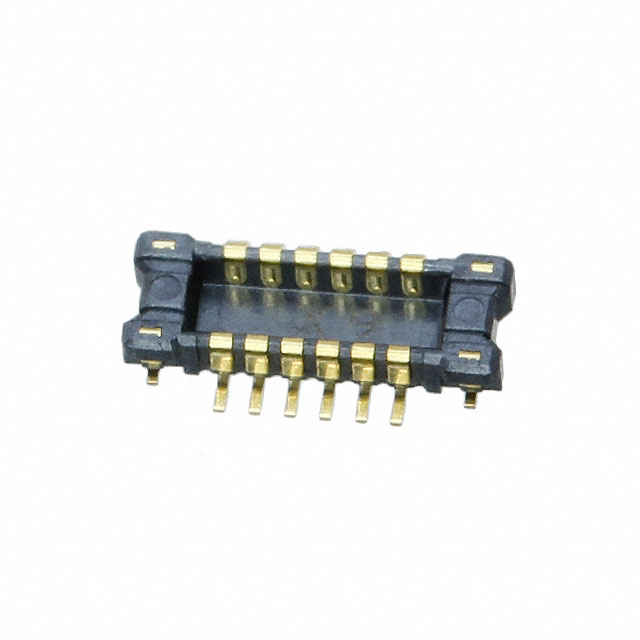

AXE812124A
ActivePanasonic Electric Works
CONN HDR 12POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXE812124A
ActivePanasonic Electric Works
CONN HDR 12POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXE812124A |
|---|---|
| Connector Type | Header, Center Strip Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board | 0.026 in |
| Height Above Board | 0.65 mm |
| Mated Stacking Heights | 0.8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 0.94 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.76 | |||
| 50 | $ 0.74 | |||
| 100 | $ 0.71 | |||
| 250 | $ 0.65 | |||
| 500 | $ 0.58 | |||
| 1000 | $ 0.52 | |||
| 2500 | $ 0.47 | |||
Description
General part information
AXE812124 Series
12 Position Connector Header, Center Strip Contacts Surface Mount Gold
