CONN011-R58

Obsolete

TE Connectivity Linx

CONN N RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Obsolete

TE Connectivity Linx

CONN N RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	CONN011-R58

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms

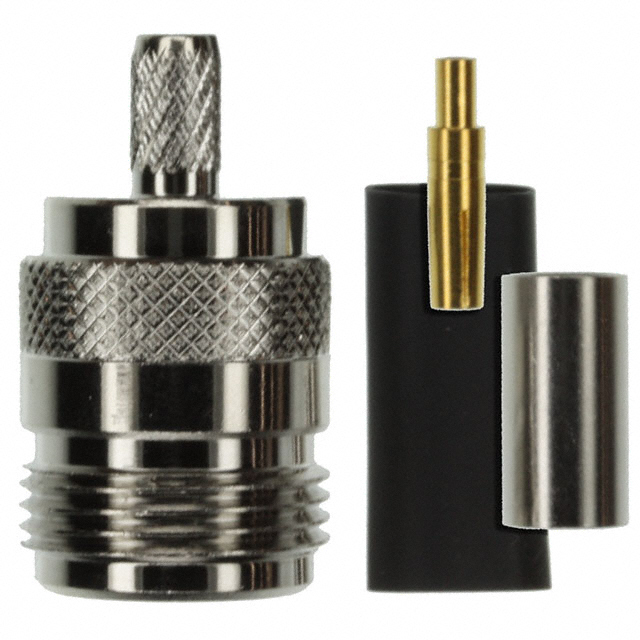

Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Body Material	Dielectric Material	Shield Termination	Contact Termination	Connector Style	Impedance	Connector Type	Body Finish	Cable Group	Frequency - Max [Max]	Mounting Type	Center Contact Plating	Center Contact Material	Voltage Rating	Insertion Loss	Housing Color	Number of Ports	Mating Cycles
TE Connectivity Linx CONN011-R58	-65 ░C	165 °C	1 Connector 1 Contact 1 Ferrule	Brass	Polytetrafluoroethylene (PTFE)	Crimp	Solder	N Type	50 Ohms	Female Socket Receptacle	Nickel	RG-58	11 GHz	Free Hanging (In-Line)	Gold	Brass	500 V	0.3 dB	Silver	1	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N Type Connector Receptacle, Female Socket 50 Ohms Free Hanging (In-Line) Solder
