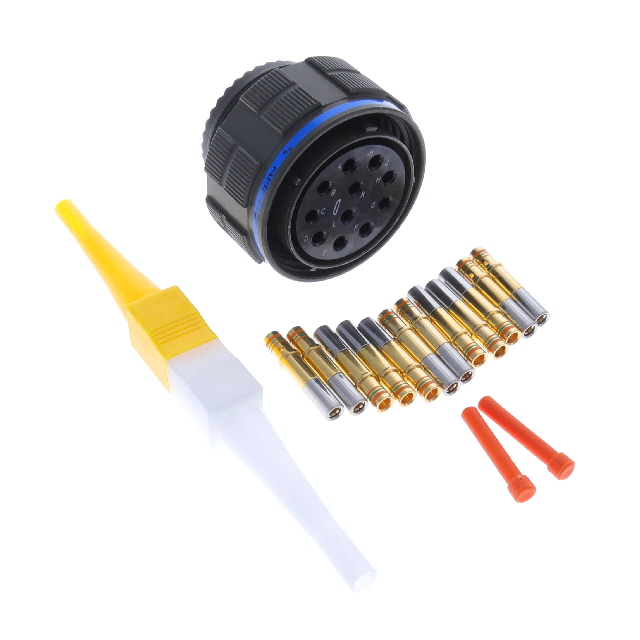

D38999/26WG11SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 11POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26WG11SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 11POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26WG11SN

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	11
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert	21-11
Shell Size, MIL	G
Shielding	Shielded
Termination	Crimp

D38999/26WG Series

Part	Shell Material	Ingress Protection	Grade	Shielding	Contact Size	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Shell Size, MIL	Qualification	Features	Number of Positions	Shell Size - Insert	Housing Color	Note	Orientation	Contact Type	Connector Type	Shell Finish	Type	Contact Finish - Mating	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Primary Material	Contact Material	Termination	Number of Positions	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Size	Current Rating (Amps)
Amphenol Aerospace Operations D38999/26WG11SB-LC	Aluminum	Environment Resistant	Military	Shielded	12	Free Hanging (In-Line)	-65 ░C	347 °F	Circular	G	MIL-DTL-38999 Series III	Coupling Nut Self Locking	11	21-11	Olive Drab	Contacts Not Included	B	Crimp	Plug Housing	Cadmium	For Female Sockets
Amphenol Aerospace Operations D38999/26WG16HE	Aluminum	Environment Resistant	Military	Shielded		Free Hanging (In-Line)	-65 ░C	347 °F		G	MIL-DTL-38999 Series III	Coupling Nut Self Locking		21-16			E		Male Pins Plug	Olive Drab Cadmium		Gold	Olive Drab	2.54 çm	100 çin	Aviation Marine Military	Metal	Copper Alloy	Crimp	16
Amphenol Aerospace Operations D38999/26WG11SN	Aluminum	Environment Resistant	Military	Shielded		Free Hanging (In-Line)	-65 ░C	347 °F		G	MIL-DTL-38999 Series III	Coupling Nut	11	21-11			N		Female Sockets Plug	Olive Drab Cadmium		Gold	Olive Drab	1.27 µm	50 µin	Aerospace Aviation Marine Military	Metal	Copper Alloy	Crimp
Amphenol Aerospace Operations D38999/26WG41JN-LC	Aluminum	Environment Resistant	Military	Shielded	20	Free Hanging (In-Line)	-65 ░C	347 °F	Circular	G	MIL-DTL-38999 Series III	Coupling Nut Self Locking	41		Olive Drab	Contacts Not Included	N	Crimp	Plug Housing	Cadmium	For Female Sockets										21	41
Amphenol Aerospace Operations D38999/26WG35SD-LC	Aluminum	Environment Resistant	Military	Shielded		Free Hanging (In-Line)	-65 ░C	347 °F	Circular	G	MIL-DTL-38999 Series III	Coupling Nut Self Locking	79		Olive Drab	Contacts Not Included	D	Crimp	Plug Housing	Cadmium	For Female Sockets										21	35	22D
Amphenol Aerospace Operations D38999/26WG16HN	Aluminum	Environment Resistant	Military	Shielded		Free Hanging (In-Line)	-65 ░C	347 °F		G	MIL-DTL-38999 Series III	Coupling Nut		21-16			N		Male Pins Plug	Olive Drab Cadmium		Gold	Olive Drab	2.54 çm	100 çin	Aerospace Aviation Military	Metal	Copper Alloy	Crimp	16
Amphenol Aerospace Operations D38999/26WG11HB	Aluminum	Environment Resistant	Military	Shielded		Free Hanging (In-Line)	-65 ░C	347 °F		G	MIL-DTL-38999 Series III	Coupling Nut Self Locking	11	21-11			B		Male Pins Plug	Olive Drab Cadmium		Gold	Olive Drab	2.54 çm	100 çin	Aviation Marine Military	Metal	Copper Alloy	Crimp
Amphenol Aerospace Operations D38999/26WG41AB	Aluminum	Environment Resistant	Military	Shielded	20	Free Hanging (In-Line)	-65 ░C	347 °F	Circular	G	MIL-DTL-38999 Series III	Coupling Nut Self Locking	41		Olive Drab	Contacts Not Included	B	Crimp	Plug Housing	Cadmium	For Male Pins										21	41
Amphenol Aerospace Operations D38999/26WG16SE	Aluminum	Environment Resistant	Military	Shielded		Free Hanging (In-Line)	-65 ░C	347 °F		G	MIL-DTL-38999 Series III	Coupling Nut Self Locking		21-16			E		Female Sockets Plug	Olive Drab Cadmium		Gold	Olive Drab	1.27 µm	50 µin	Aerospace Aviation Marine Military	Metal	Copper Alloy	Crimp	16				13 A
Amphenol Aerospace Operations D38999/26WG35SB-LC	Aluminum	Environment Resistant	Military	Shielded		Free Hanging (In-Line)	-65 ░C	347 °F	Circular	G	MIL-DTL-38999 Series III	Coupling Nut Self Locking	79		Olive Drab	Contacts Not Included	B	Crimp	Plug Housing	Cadmium	For Female Sockets										21	35	22D

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 73.47
		1	$ 77.87
		10	$ 75.36
		10	$ 71.11
		25	$ 68.89
		25	$ 73.01
		50	$ 71.89
		50	$ 67.82
		100	$ 67.72
		100	$ 63.89
		250	$ 62.97
		250	$ 66.75
		500	$ 60.39
		500	$ 64.01
		1000	$ 58.78
		1000	$ 62.30
	Bulk	1	$ 245.36
		1	$ 383.69
		1	$ 77.45
		10	$ 233.68
		10	$ 67.12
		10	$ 301.88
		25	$ 59.23
		25	$ 276.11
		50	$ 52.99
		100	$ 46.47

Description

General part information

D38999/26WG Series

11 Position Circular Connector Plug, Female Sockets Crimp
