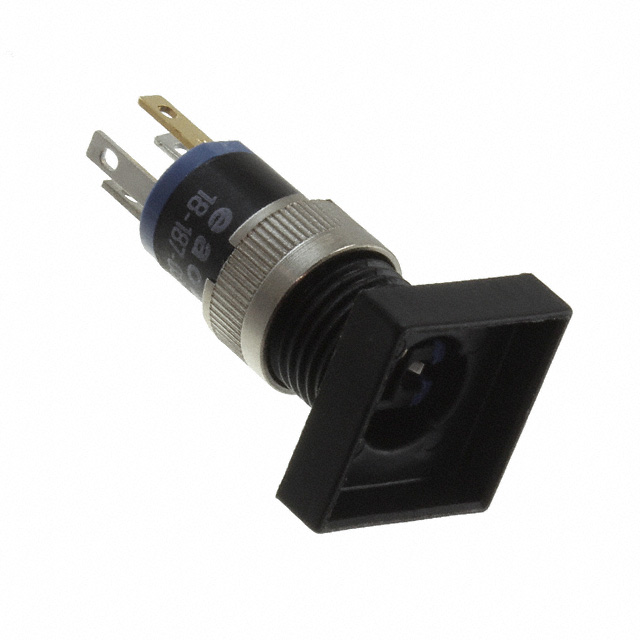

18-187.035
ActiveEAO
SWITCH PB SPST-NO 0.1A 42V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
18-187.035
ActiveEAO
SWITCH PB SPST-NO 0.1A 42V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 18-187.035 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Square, Button (Not Included) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 50000 Cycles |
| Ingress Protection | IP40 |
| Mechanical Life | 2000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 42 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.96 | |
| 10 | $ 18.94 | |||
| 25 | $ 17.86 | |||
| 50 | $ 17.08 | |||
| 100 | $ 16.33 | |||
| 250 | $ 15.39 | |||
| 500 | $ 14.72 | |||
18-187 Series
SWITCH PB SPST-NO 0.1A 42V
| Part | Mounting Type | Electrical Life | Circuit | Voltage Rating - AC | Ingress Protection | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Termination Style | Current Rating (Amps) | Type | Switch Function | Mechanical Life | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 18-187.035 | Panel Mount, Front | 50000 Cycles | SPST-NO | 42 V | IP40 | Square, Button (Not Included) | 65 °C | -25 °C | 42 V | Solder Lug | 100 mA | Standard | Off-Mom | 2000000 Cycles | No Marking |
Description
General part information
18-187 Series
Pushbutton Switch SPST-NO Standard Panel Mount, Front
