2211-1X07G00S/2.6/2.8B

Active

Oupiin

PIN HEADER, SINGLE ROW, 7 PIN, S

Deep-Dive with AI

Search across all available documentation for this part.

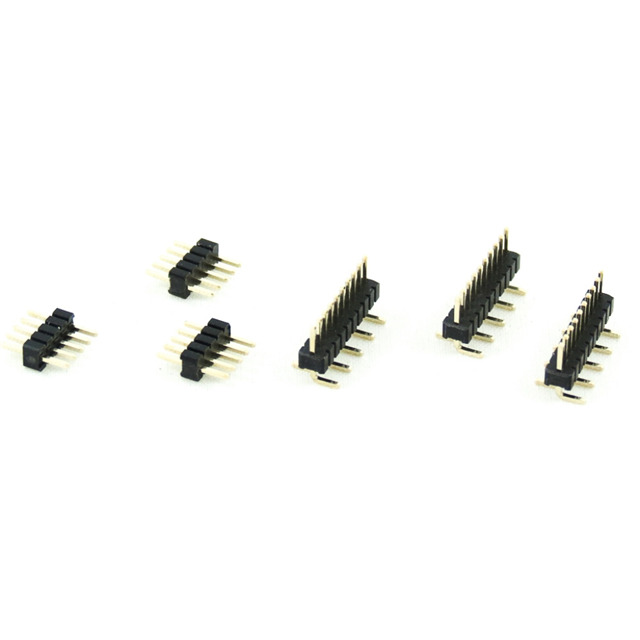

2211-1X07G00S/2.6/2.8B

Active

Oupiin

PIN HEADER, SINGLE ROW, 7 PIN, S

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2211-1X07G00S/2.6/2.8B	2211 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating	0.11 in	0.11 in
Contact Length - Mating	2.8 mm	2.8 mm
Contact Length - Post	0.102 in	0.102 in
Contact Length - Post	2.6 mm	2.6 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	1.7 mm	1.7 mm
Insulation Height	0.067 in	0.067 in
Insulation Material	Nylon 6T, Polyamide (PA6T)	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	7	6 - 20
Number of Positions Loaded	All	All
Number of Rows	1	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Overall Contact Length	7.1 mm	7.1 mm
Overall Contact Length	0.28 in	0.28 in
Pitch - Mating	0.05 in	0.05 - 2.54 in
Pitch - Mating	1.27 mm	1.27 mm
Pitch - Mating	-	0.1 in
Row Spacing - Mating	-	2.54 mm
Row Spacing - Mating	-	0.1 in
Shrouding	Unshrouded	Unshrouded
Termination	Solder	Solder

2211 Series

PIN HEADER, SINGLE ROW, 7 PIN, S

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Material	Overall Contact Length	Overall Contact Length	Shrouding	Termination	Insulation Material	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Mounting Type	Fastening Type	Contact Finish - Post	Insulation Color	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Number of Rows	Number of Positions	Contact Type	Contact Shape	Number of Positions Loaded	Connector Type	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Oupiin 2211-1X07G00S/2.6/2.8B	-40 °C	105 ░C	UL94 V-0	0.102 in	2.6 mm	0.05 in	1.27 mm	Gold	Brass	7.1 mm	0.28 in	Unshrouded	Solder	Nylon 6T, Polyamide (PA6T)	1.7 mm	0.067 in	Flash	Through Hole	Push-Pull	Gold	Black	Flash	0.11 in	2.8 mm	1	7	Male Pin	Square	All	Header
Oupiin 2211-1X09G00S-2.6-2.8B	-40 °C	105 ░C	UL94 V-0	0.102 in	2.6 mm	0.05 in	1.27 mm	Gold	Brass	7.1 mm	0.28 in	Unshrouded	Solder	Nylon 6T, Polyamide (PA6T)	1.7 mm	0.067 in	Flash	Through Hole	Push-Pull	Gold	Black	Flash	0.11 in	2.8 mm	1	9	Male Pin	Square	All	Header
Oupiin 2211-1X10G00S/2.6/2.8B	-40 °C	105 ░C	UL94 V-0	0.102 in	2.6 mm	0.05 in	1.27 mm	Gold	Brass	7.1 mm	0.28 in	Unshrouded	Solder	Nylon 6T, Polyamide (PA6T)	1.7 mm	0.067 in	Flash	Through Hole	Push-Pull	Gold	Black	Flash	0.11 in	2.8 mm	1	10	Male Pin	Square	All	Header
Oupiin 2211-1X06G00S/2.6/2.8B	-40 °C	105 ░C	UL94 V-0	0.102 in	2.6 mm	0.05 in	1.27 mm	Gold	Brass	7.1 mm	0.28 in	Unshrouded	Solder	Nylon 6T, Polyamide (PA6T)	1.7 mm	0.067 in	Flash	Through Hole	Push-Pull	Gold	Black	Flash	0.11 in	2.8 mm	1	6	Male Pin	Square	All	Header
Oupiin 2211-1X05G00S/2.6/2.8B	-40 °C	105 ░C	UL94 V-0	0.102 in	2.6 mm	0.05 in	1.27 mm	Gold	Brass	7.1 mm	0.28 in	Unshrouded	Solder	Nylon 6T, Polyamide (PA6T)	1.7 mm	0.067 in	Flash	Through Hole	Push-Pull	Gold	Black	Flash	0.11 in	2.8 mm	1		Male Pin	Square	All	Header
Oupiin 2211-2X10G00S-2.6-2.8B	-40 °C	105 ░C	UL94 V-0	0.102 in	2.6 mm	2.54 mm		Gold	Brass	7.1 mm	0.28 in	Unshrouded	Solder	Nylon 6T, Polyamide (PA6T)	1.7 mm	0.067 in	Flash	Through Hole	Push-Pull	Gold	Black	Flash	0.11 in	2.8 mm	2	20	Male Pin	Square	All	Header	0.1 in	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.38
		1000	$ 0.32
		2000	$ 0.25
		3000	$ 0.21
		4000	$ 0.19

Description

General part information

2211 Series

Connector Header Through Hole 7 position 0.050" (1.27mm)

Documents

Technical documentation and resources

No documents available
