BT1.5I-M7

Active

Panduit Corp

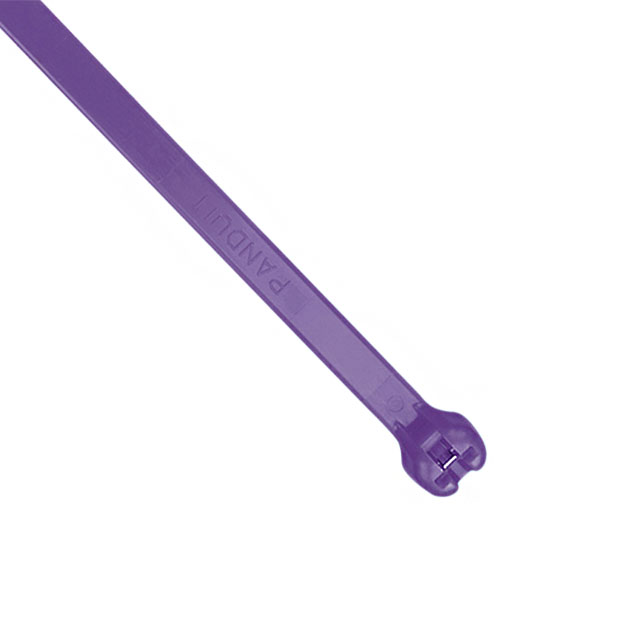

CBL TIE LOCKING PURPLE 40LB 6.1"

Search across all available documentation for this part.

Active

Panduit Corp

CBL TIE LOCKING PURPLE 40LB 6.1"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Standard, Locking Purple 1.50" (38.10mm) 0.141" (3.58mm) 40 lbs (18.14 kg)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BT1.5I-M7	BT1.5I Series

Bundle Diameter [diameter]	1.5 in	1.5 in
Bundle Diameter [diameter]	38.1 mm	38.1 mm
Color	Purple	Gray, Blue, Purple, Black
Features	-	Weather Resistant, Heat Stabilized
Length - Actual	-	0.509 ft
Length - Actual	-	155 mm
Length - Actual	-	6.1 in
Length - Actual [x]	6.1 in	6.1 in
Length - Actual [x]	154.94 mm	154.94 mm
Length - Actual [x]	0.508 ft	0.508 ft
Length - Approximate [x]	6 in	6 in
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tensile Strength	40 lbs	40 lbs
Tensile Strength	18.14 kg	18.14 kg
Width [x]	3.58 mm	3.58 mm
Width [x]	0.141 in	0.141 in
Wire/Cable Tie Type	Standard, Locking	Standard, Locking

CBL TIE LOCKING GRAY 40LBS 6.1"

Part	Width [x]	Width [x]	Color	Mounting Type	Wire/Cable Tie Type	Material	Length - Approximate [x]	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Tensile Strength	Tensile Strength	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Features	Length - Actual	Length - Actual	Length - Actual
Panduit Corp BT1.5I-M8	3.58 mm	0.141 in	Gray	Free Hanging (In-Line)	Locking, Standard	Polyamide (PA66), Nylon 6/6	6 in	6.1 in	154.94 mm	0.508 ft	40 lbs	18.14 kg	1.5 in	38.1 mm
Panduit Corp BT1.5I-M6	3.58 mm	0.141 in	Blue	Free Hanging (In-Line)	Locking, Standard	Polyamide (PA66), Nylon 6/6	6 in	6.1 in	154.94 mm	0.508 ft	40 lbs	18.14 kg	1.5 in	38.1 mm
Panduit Corp BT1.5I-M7	3.58 mm	0.141 in	Purple	Free Hanging (In-Line)	Locking, Standard	Polyamide (PA66), Nylon 6/6	6 in	6.1 in	154.94 mm	0.508 ft	40 lbs	18.14 kg	1.5 in	38.1 mm
Panduit Corp BT1.5I-M0	3.58 mm	0.141 in	Black	Free Hanging (In-Line)	Locking, Standard	Polyamide (PA66), Nylon 6/6	6 in	6.1 in	154.94 mm	0.508 ft	40 lbs	18.14 kg	1.5 in	38.1 mm	Weather Resistant
Panduit Corp BT1.5I-M3	3.58 mm	0.141 in		Free Hanging (In-Line)	Locking, Standard	Polyamide (PA66), Nylon 6/6	6 in	6.1 in	154.94 mm	0.508 ft	40 lbs	18.14 kg	1.5 in	38.1 mm
Panduit Corp BT1.5I-M300	3.58 mm	0.141 in	Black	Free Hanging (In-Line)	Locking, Standard	Polyamide (PA66), Nylon 6/6	6 in				40 lbs	18.14 kg	1.5 in	38.1 mm	Heat Stabilized, Weather Resistant	0.509 ft	155 mm	6.1 in
