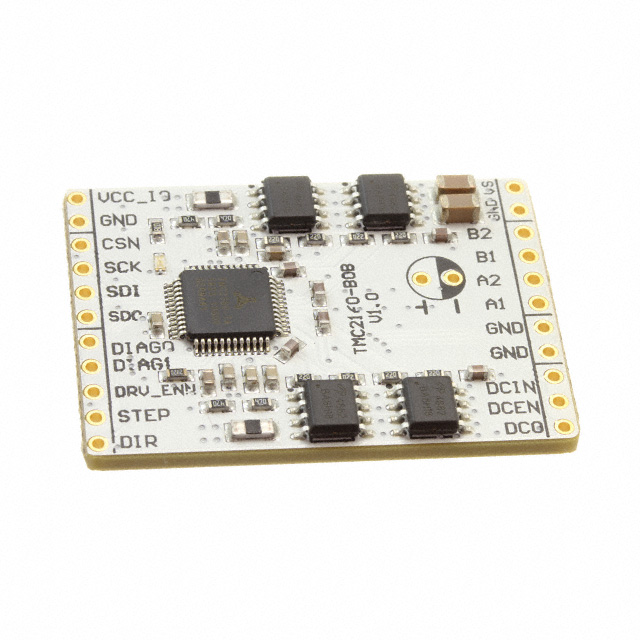

TMC2160-BOB
ActiveAnalog Devices Inc./Maxim Integrated
BREAKOUTBOARD FOR TMC2160
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC2160-BOB
ActiveAnalog Devices Inc./Maxim Integrated
BREAKOUTBOARD FOR TMC2160
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC2160-BOB | TMC2160 Series |
|---|---|---|
| Applications | - | Industrial, Automation Control, Medical, Multipurpose, Automation |
| Contents | Board(s) | Board(s) |
| Current - Output | - | 20 A |
| Embedded | - | False |
| Function | - | Driver - Fully Integrated, Control and Power Stage |
| Interface | - | Step/Direction, SPI |
| Motor Type - AC, DC | - | Brushed DC |
| Motor Type - Stepper | - | Bipolar |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |
| Output Configuration | - | Half Bridge (4) |
| Package / Case | - | 48-TQFP Exposed Pad |
| Primary Attributes | - | Motors (Stepper) |
| Secondary Attributes | SPI Interface(s) | SPI Interface(s) |
| Step Resolution | - | 1 |
| Step Resolution | - | 0.00390625 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 48-TQFP-EP (7x7) |
| Technology | - | Power MOSFET, BCD MOS External Power MOSFETs |
| Type | Power Management | Power Management |
| Utilized IC / Part | TMC2160 | TMC2160 |
| Voltage - Load | - | 10 V |
| Voltage - Load | - | 55 V |
| Voltage - Supply | - | 50 VDC |
| Voltage - Supply | - | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.20 | |
TMC2160 Series
IC STEPPER MOTOR DRV SPI S/D
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Motor Type - Stepper | Function | Output Configuration | Technology | Supplier Device Package | Interface | Current - Output | Step Resolution [Max] | Step Resolution [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Voltage - Load [Min] | Voltage - Load [Max] | Applications | Mounting Type | Type | Secondary Attributes | Supplied Contents | Primary Attributes | Embedded | Utilized IC / Part | Contents | Motor Type - AC, DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC2160-TA-T | -40 °C | 125 ¯C | Bipolar | Driver - Fully Integrated, Control and Power Stage | Half Bridge (4) | Power MOSFET | 48-TQFP-EP (7x7) | SPI, Step/Direction | 20 A | 1 | 0.00390625 | 50 VDC | 10 VDC | 48-TQFP Exposed Pad | 10 V | 55 V | Automation Control, Industrial, Medical | Surface Mount | ||||||||
Analog Devices Inc./Maxim Integrated TMC2160-EVAL-KIT | Power Management | SPI Interface(s) | Board(s) | Motors (Stepper) | TMC2160 | |||||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2160-BOB | Power Management | SPI Interface(s) | Board(s) | TMC2160 | Board(s) | |||||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2160A-TA-X | -40 °C | 125 ¯C | Bipolar | Driver - Fully Integrated, Control and Power Stage | Half Bridge (4) | BCD MOS External Power MOSFETs | 48-TQFP-EP (7x7) | SPI, Step/Direction | 20 A | 1 | 0.00390625 | 50 VDC | 10 VDC | 48-TQFP Exposed Pad | 10 V | 55 V | Automation Control, Industrial, Medical | Surface Mount | Brushed DC | |||||||
Analog Devices Inc./Maxim Integrated TMC2160-EVAL | Power Management | SPI Interface(s) | Board(s) | TMC2160 | Board(s) | |||||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2160-TA | -40 °C | 125 °C | Bipolar | Driver - Fully Integrated, Control and Power Stage | Half Bridge (4) | Power MOSFET | 48-TQFP-EP (7x7) | SPI, Step/Direction | 20 A | 1 | 0.00390625 | 50 VDC | 10 VDC | 48-TQFP Exposed Pad | 10 V | 55 V | Automation, Industrial, Multipurpose | Surface Mount |
Description
General part information
TMC2160 Series
TMC2160 Motor Controller/Driver, Stepper Power Management Evaluation Board
