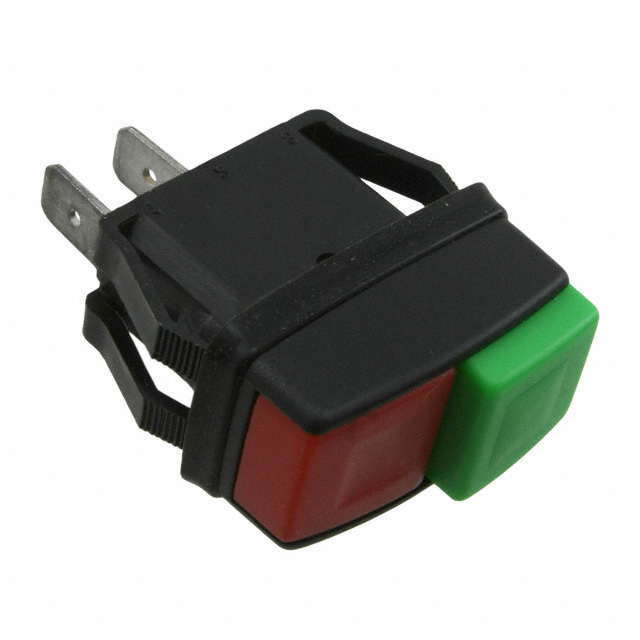

GPB526A01BRG

Active

CW Industries

SWITCH PUSH SPST 16A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH PUSH SPST 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GPB526A01BRG

Actuator Marking	No Marking
Actuator Type	Dual, Square, Button
Circuit	SPST
Color - Actuator/Cap	Green, Red
Current Rating (Amps)	16 A
Ingress Protection	IP56 - Dust Protected, Water Resistant
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.6 mm
Panel Cutout Dimensions [y]	13.8 mm
Switch Function	Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Type	Standard
Voltage Rating - AC	125 V

Part	Type	Ingress Protection	Switch Function	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Actuator Type	Circuit	Color - Actuator/Cap	Termination Style	Current Rating (Amps)	Voltage Rating - AC	Actuator Marking	Mounting Type
CW Industries GPB526A01BRG	Standard	IP56 - Dust Protected Water Resistant	Off-On	13.8 mm	27.6 mm	Button Dual Square	SPST	Green Red	Quick Connect - 0.250" (6.3mm)	16 A	125 V	No Marking	Panel Mount Snap-In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch SPST Standard Panel Mount, Snap-In
