1-967616-1
ActiveTE Connectivity AMP Connectors

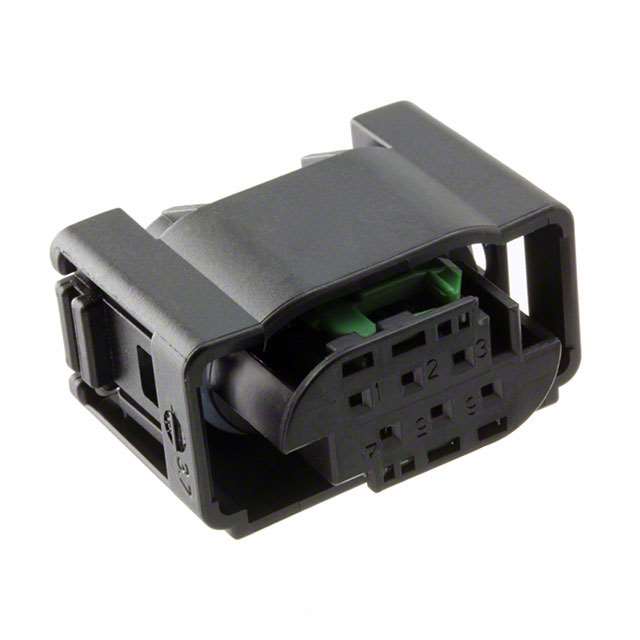

CONN RCPT HSG 6POS 4.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-967616-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 6POS 4.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-967616-1 | 967616 Series |
|---|---|---|
| Color | Black | Black, Gray |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Features | Sealed | Sealed |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 6 | 6 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 4 mm | 4 mm |
| Pitch [x] | 0.157 in | 0.157 in |
| Row Spacing | 0.138 in | 0.138 in |
| Row Spacing | 3.5 mm | 3.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.67 | |
| 10 | $ 1.53 | |||
| 25 | $ 1.48 | |||
| 50 | $ 1.47 | |||
| 100 | $ 1.36 | |||
| 250 | $ 1.34 | |||
| 500 | $ 1.22 | |||
| 1100 | $ 1.09 | |||
| 3300 | $ 1.01 | |||
967616 Series
CONN RCPT HSG 6POS 4.00MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Insulation Material | Row Spacing | Row Spacing | Contact Type | Mounting Type | Note | Connector Type | Number of Rows | Color | Pitch [x] | Pitch [x] | Features | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-967616-1 | -40 °C | 120 °C | Crimp | Polybutylene Terephthalate (PBT), Glass Filled | 0.138 in | 3.5 mm | Female Socket | Free Hanging (In-Line) | Contacts Not Included | Receptacle | 2 | Black | 4 mm | 0.157 in | Sealed | 6 |
TE Connectivity AMP Connectors 3-967616-1 | -40 °C | 120 °C | Crimp | Polybutylene Terephthalate (PBT), Glass Filled | 0.138 in | 3.5 mm | Female Socket | Free Hanging (In-Line) | Contacts Not Included | Receptacle | 2 | Black | 4 mm | 0.157 in | Sealed | 6 |
TE Connectivity AMP Connectors 2-967616-1 | -40 °C | 120 °C | Crimp | Polybutylene Terephthalate (PBT), Glass Filled | 0.138 in | 3.5 mm | Female Socket | Free Hanging (In-Line) | Contacts Not Included | Receptacle | 2 | Gray | 4 mm | 0.157 in | Sealed | 6 |
Description
General part information
967616 Series
6 Rectangular Connectors - Housings Receptacle Black 0.157" (4.00mm)
