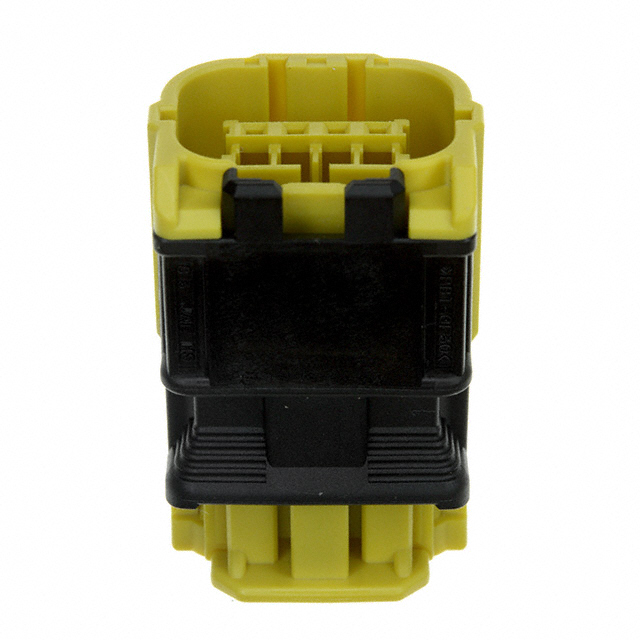

MX36004SQ3

Active

JAE Electronics

CONN RCPT HSG 4POS 2.50MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT HSG 4POS 2.50MM

Technical Specifications

Parameters and characteristics for this part

Specification	MX36004SQ3

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Waterproof
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

Part	Number of Rows	Pitch [x]	Pitch [x]	Fastening Type	Contact Type	Insulation Material	Contact Termination	Connector Type	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Features	Note
JAE Electronics MX36004SQ3	1	0.098 in	2.5 mm	Latch Lock	Female Socket	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	Receptacle	Free Hanging (In-Line)	Black	-40 °C	105 ░C	4	Waterproof	Contacts Not Included
JAE Electronics MX36004PQ3	1	0.098 in	2.5 mm	Latch Holder	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	Plug	Free Hanging (In-Line)	Black	-40 °C	105 ░C	4	Waterproof	Contacts Not Included
JAE Electronics MX36002SQ3	1	0.098 in	2.5 mm	Latch Lock	Female Socket	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	Receptacle	Free Hanging (In-Line)	Black	-40 °C	105 ░C	2	Waterproof	Contacts Not Included
JAE Electronics MX36002PQ4	1	0.098 in	2.5 mm	Latch Holder	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	Plug	Free Hanging (In-Line)	Black	-40 °C	105 ░C	2	Waterproof	Contacts Not Included
JAE Electronics MX36002SQ4	1	0.098 in	2.5 mm	Latch Lock	Female Socket	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	Receptacle	Free Hanging (In-Line)	Black	-40 °C	105 ░C	2	Waterproof	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Receptacle Black 0.098" (2.50mm)
