MT226024
ActiveTE Connectivity AMP Connectors

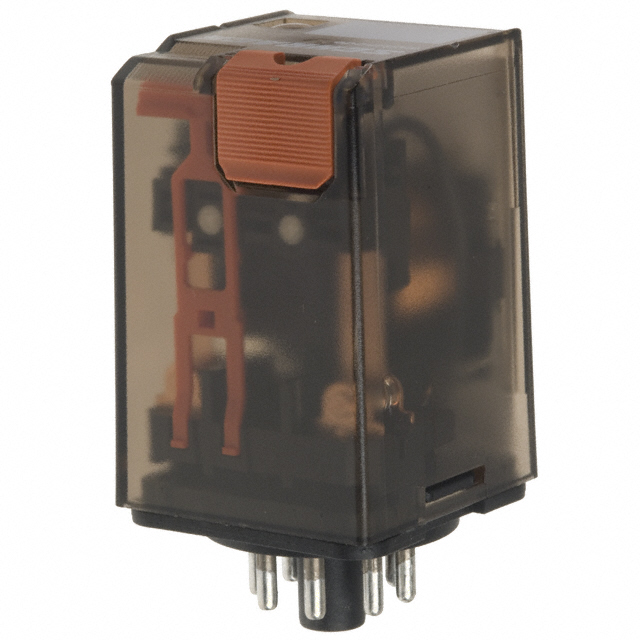

RELAY GEN PURPOSE DPDT 10A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MT226024
ActiveTE Connectivity AMP Connectors
RELAY GEN PURPOSE DPDT 10A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MT226024 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 279 mA |
| Coil Insulation | Class B |
| Coil Resistance | 86 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 10 A |
| Features | Test Button |
| Load - Max Switching [Max] | 2500 VA |
| Mounting Type | Socketable |
| Must Operate Voltage | 19.2 VAC |
| Must Release Voltage | 9.6 VAC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | Plug In, 8 Pin (Octal) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
MT2260 Series
RELAY GEN PURPOSE DPDT 10A 24V
| Part | Switching Voltage [Max] | Load - Max Switching [Max] | Relay Type | Features | Release Time | Coil Voltage | Operate Time | Must Operate Voltage | Coil Type | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Contact Material | Coil Current | Must Release Voltage | Termination Style | Mounting Type | Contact Rating (Current) | Coil Resistance | Contact Form | Coil Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors MT226024 | 400 VAC | 2500 VA | General Purpose | Test Button | 10 ms | 24 VAC | 15 ms | 19.2 VAC | Non Latching | -40 °C | 50 °C | cURus, VDE | Silver Nickel (AgNi) | 279 mA | 9.6 VAC | Plug In, 8 Pin (Octal) | Socketable | 10 A | 86 Ohms | DPDT (2 Form C) | Class B |
Description
General part information
MT2260 Series
General Purpose Relay DPDT (2 Form C) 24VAC Coil Socketable
