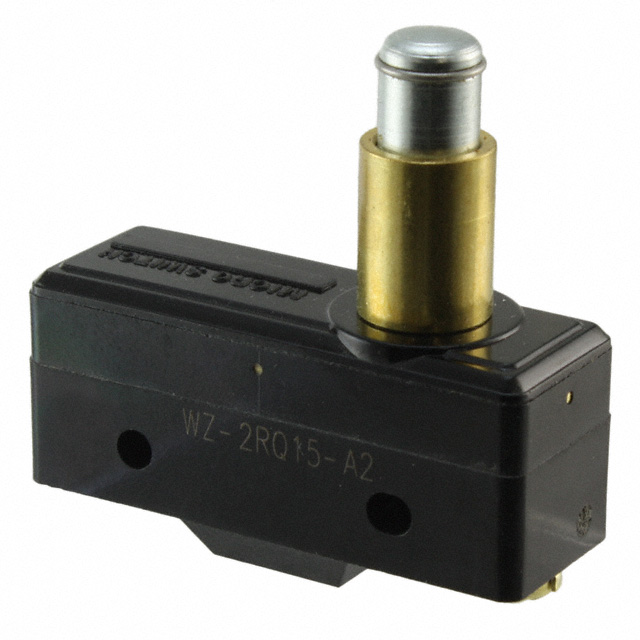

WZ-2RQ15-A2

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NC 10A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NC 10A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPST-NC Chassis Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	WZ-2RQ15-A2	WZ-2RQ Series

Actuator Type	Overtravel Plunger	Overtravel Plunger, Rod, Spring, Cross Roller Plunger
Circuit	SPST-NC	SPST-NC
Current Rating (Amps)	10 A, 500 mA	10 - 500 A
Differential Travel	0.002 in	0.002 in
Differential Travel	0.05 mm	0.05 mm
Features	Steel Plunger	Steel Plunger, Nylon Roller
Ingress Protection	-	Splash Proof
Mechanical Life	20000000 Cycles	20000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	-	71 gf
Operating Force [Max]	368 gf	368 gf
Operating Force [Min]	255 gf	255 gf
Operating Position	1.5 in	0.859 - 1.5 in
Operating Position	38.1 mm	21.8 - 38.1 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Overtravel	5.6 mm	3.6 - 5.6 mm
Overtravel	0.219 in	0.141 - 0.219 in
Pretravel	0.015 in	0.015 - 0.5 in
Pretravel	0.4 mm	0.4 - 12.7 mm
Release Force	113 gf	113 gf
Switch Function	On-Mom	On-Mom
Termination Style	Screw Terminal	Screw Terminal, Connector, Solder Lug
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	125 VDC	125 VDC

SWITCH SNAP ACT SPST-NC 10A 125V

Part	Termination Style	Actuator Type	Features	Voltage Rating - DC	Switch Function	Pretravel	Pretravel	Overtravel	Overtravel	Mechanical Life	Differential Travel	Differential Travel	Current Rating (Amps)	Operating Force [Max]	Operating Force [Min]	Release Force	Operating Temperature [Max]	Operating Temperature [Min]	Operating Position	Operating Position	Circuit	Voltage Rating - AC	Mounting Type	Ingress Protection	Operating Force
Honeywell Sensing and Productivity Solutions WZ-2RQ15-A2	Screw Terminal	Overtravel Plunger	Steel Plunger	125 VDC	On-Mom	0.015 in	0.4 mm	5.6 mm	0.219 in	20000000 Cycles	0.002 in	0.05 mm	10 A, 500 mA	368 gf	255 gf	113 gf	85 °C	-55 °C	1.5 in	38.1 mm	SPST-NC	125 V	Chassis Mount
Honeywell Sensing and Productivity Solutions WZ-2RQW55-W104	Connector	Rod, Spring			On-Mom	0.5 in	12.7 mm			20000000 Cycles			15 A				85 °C	-55 °C			SPST-NC	125 V	Chassis Mount	Splash Proof	71 gf
Honeywell Sensing and Productivity Solutions WZ-2RQ1T	Screw Terminal	Overtravel Plunger	Steel Plunger	125 VDC	On-Mom	0.015 in	0.4 mm	5.6 mm	0.219 in	20000000 Cycles	0.002 in	0.05 mm	15 A, 500 mA	368 gf	255 gf	113 gf	85 °C	-55 °C	0.859 in	21.8 mm	SPST-NC	125 V
Honeywell Sensing and Productivity Solutions WZ-2RQ1846	Solder Lug	Cross Roller Plunger	Nylon Roller	125 VDC	On-Mom	0.015 in	0.4 mm	3.6 mm	0.141 in	20000000 Cycles	0.002 in	0.05 mm	15 A, 500 mA	368 gf	255 gf	113 gf	85 °C	-55 °C	1.313 in	33.4 mm	SPST-NC	125 V
