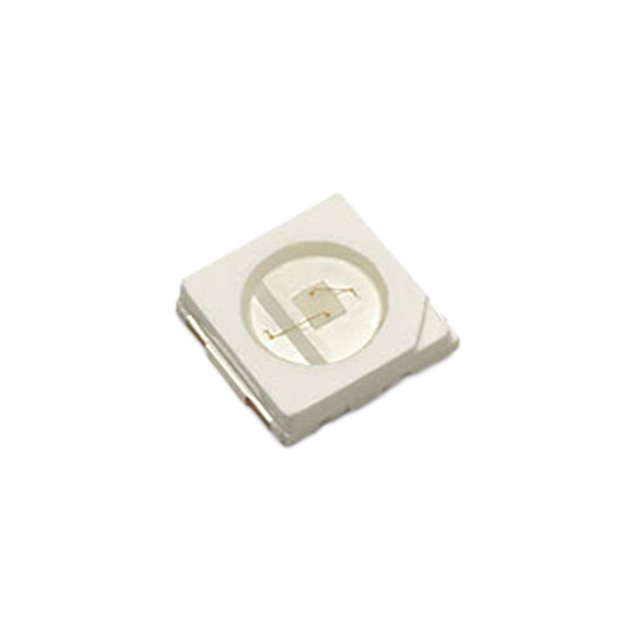

L135-U450003500000

Active

Lumileds

LED UNI-COLOR ROYAL BLUE 155LM 455NM CHIP LED 2-PIN SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

L135-U450003500000

Active

Lumileds

LED UNI-COLOR ROYAL BLUE 155LM 455NM CHIP LED 2-PIN SMD T/R

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L135-U450003500000	L135 Series

CCT (K)	-	2700 - 6500 K
Color	Blue	Lime, Red, Green, Cool, White, Warm, Neutral, Blue, Amber
CRI (Color Rendering Index)	-	70 - 90
Current - Max [Max]	200 mA	30 - 300 mA
Current - Test	100 mA	15 - 100 mA
Flux @ 25°C, Current - Test	-	45 - 93 lm
Height - Seated (Max) [Max] [z]	0.035 "	0.031 - 0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm	0.8 - 0.9 mm
Lumens/Watt @ Current - Test	-	72 - 197 lm/W
Luminous Flux @ Current/Temperature	143 mW	23 - 143 lm
Luminous Flux @ Current/Temperature [Max]	155 mW	155 mW
Luminous Flux @ Current/Temperature [Min]	130 mW	130 mW
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414, 2-SMD, No Lead
Size / Dimension	-	3.5 mm
Size / Dimension [x]	3.5 mm	3.4 - 3.5 mm
Size / Dimension [x]	0.138 "	0.134 - 0.138 "
Size / Dimension [y]	3.4 mm	3.4 mm
Size / Dimension [y]	0.134 in	0.134 - 0.138 in
Supplier Device Package	3535	3535, 1414
Thermal Resistance of Package	-	11.5 - 25 °C/W
Thermal Resistance of Package	-	42 °C/W
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	3.05 V	2 - 48 V
Wavelength	448 nm	448 - 625 nm
Wavelength [Max]	455 nm	455 - 540 nm
Wavelength [Min]	440 nm	440 - 520 nm

L135 Series

LED UNI-COLOR LIME 56LM CHIP LED 2-PIN SMD T/R

Part	Luminous Flux @ Current/Temperature	Mounting Type	Supplier Device Package	Package / Case	Package / Case	Thermal Resistance of Package [custom]	Viewing Angle	Current - Test	Current - Max [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Color	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Wavelength	Size / Dimension [y]	Wavelength [Max]	Wavelength [Min]	Thermal Resistance of Package [diameter]	CRI (Color Rendering Index)	CCT (K)	Flux @ 25°C, Current - Test
Lumileds L135-L567003500000	56 lm	Surface Mount	3535	3535 Metric	1414	11.5 °C/W	115 °	100 mA	200 mA	0.035 "	0.9 mm	184 lm/W	3.05 V	Lime	3.4 mm	0.134 in	3.5 mm	0.138 "
Lumileds L135-R6250R3500000		Surface Mount			2-SMD, No Lead		115 °	100 mA	125 mA	0.035 "	0.9 mm	75 lm/W	2 V	Red		0.138 in	3.4 mm	0.134 "	625 nm	3.5 mm
Lumileds L135-G525003500001	23 lm	Surface Mount	3535	3535 Metric	1414		115 °	100 mA	125 mA	0.035 "	0.9 mm	72 lm/W	3.2 V	Green	3.4 mm	0.134 in	3.5 mm	0.138 "	530 nm		540 nm	520 nm	42 °C/W
Lumileds L135-6590CA35000P1		Surface Mount	1414	3535 Metric	1414	14 °C/W	115 °	100 mA	300 mA	0.035 "	0.9 mm		2.8 V	Cool, White	3.4 mm	0.134 in	3.5 mm	0.138 "						90	6500 K
Lumileds L135-3070SA35000P1		Surface Mount	1414	3535 Metric	1414	14 °C/W	115 °	100 mA	300 mA	0.035 "	0.9 mm	190 lm/W	2.8 V	Warm, White	3.4 mm	0.134 in	3.5 mm	0.138 "						70		53 lm
Lumileds L135-50800BHV00001		Surface Mount	3535	3535 Metric	1414	25 °C/W		15 mA	30 mA	0.035 "	0.9 mm	133 lm/W	24 V	Cool, White	3.4 mm	0.134 in	3.5 mm	0.138 "						80	5000 K
Lumileds L135-3570CA35000P1		Surface Mount	1414	3535 Metric	1414	14 °C/W	115 °	100 mA	300 mA	0.035 "	0.9 mm		2.8 V	Warm, White	3.4 mm	0.134 in	3.5 mm	0.138 "						70	3500 K
Lumileds L135-6590SA35000P1		Surface Mount	1414	3535 Metric	1414	14 °C/W	115 °	100 mA	300 mA	0.035 "	0.9 mm	161 lm/W	2.8 V	Cool, White	3.4 mm	0.134 in	3.5 mm	0.138 "						90	6500 K	45 lm
Lumileds L135-2770SA35000P1		Surface Mount	1414	3535 Metric	1414	14 °C/W	115 °	100 mA	300 mA	0.035 "	0.9 mm	183 lm/W	2.8 V	Warm, White	3.4 mm	0.134 in	3.5 mm	0.138 "						70	2700 K	52 lm
Lumileds L135-5090SA35000P1		Surface Mount	1414	3535 Metric	1414	14 °C/W	115 °	100 mA	300 mA	0.035 "	0.9 mm		2.8 V	Cool, White	3.4 mm	0.134 in	3.5 mm	0.138 "						90	5000 K	46 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.97
		10	$ 0.68
		100	$ 0.50
		500	$ 0.42
		1000	$ 0.39
		2000	$ 0.37
	Digi-Reel®	1	$ 0.97
		10	$ 0.68
		100	$ 0.50
		500	$ 0.42
		1000	$ 0.39
		2000	$ 0.37
	Tape & Reel (TR)	5000	$ 0.35
		10000	$ 0.33
		15000	$ 0.32
		25000	$ 0.32

Description

General part information

L135 Series

Supports ENERGY STAR lumen maintenance certification requirements

Maximum drive current of 200mA delivers superior lumens for reduced LED count

1/7th ANSI color binning delivers tight color control
