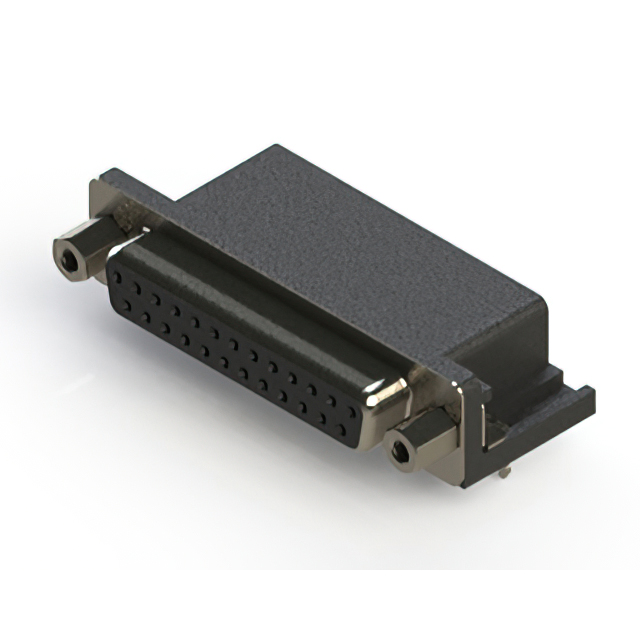

626-025-362-033
ActiveEDAC Inc.
626 SERIES RIGHT ANGLE D-SUB REC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
626-025-362-033
ActiveEDAC Inc.
626 SERIES RIGHT ANGLE D-SUB REC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 626-025-362-033 |
|---|---|
| Backset Spacing | 0.584 in |
| Backset Spacing | 14.84 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Mounting Brackets, Shielded, Board Lock |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
626-025 Series
| Part | Number of Rows | Shell Material, Finish | Mounting Type | Termination | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Contact Finish Thickness | Contact Material | Color | Connector Type | Backset Spacing | Backset Spacing | Dielectric Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Material Flammability Rating | Features | Connector Style | Contact Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Solder | 4-40 | -55 °C | 125 °C | Gold | Flash | Copper Alloy | Black | Receptacle Female Sockets | 0.584 in | 14.84 mm | Polyester Thermoplastic | B DB | 3 | 3 A | UL94 V-0 | Board Lock Mounting Brackets Shielded | D-Sub | Signal | ||
EDAC Inc. | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Solder | Female Screwlock (4-40) Mating Side | -55 °C | 125 °C | Gold | Copper Alloy | Black | Receptacle Female Sockets | 0.584 in | 14.84 mm | Polyester Thermoplastic | B DB | 3 | 3 A | UL94 V-0 | Board Lock Mounting Brackets Shielded | D-Sub | Signal | 0.76 Ám | 30 Áin | |
EDAC Inc. | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Solder | Housing/Shell (Unthreaded) | -55 °C | 125 °C | Gold | Flash | Copper Alloy | Black | Receptacle Female Sockets | 0.584 in | 14.84 mm | Polyester Thermoplastic | B DB | 3 | 3 A | UL94 V-0 | Board Lock Mounting Brackets Shielded | D-Sub | Signal | ||
EDAC Inc. | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Solder | Housing/Shell (M3) | -55 °C | 85 °C | Gold | Flash | Copper Alloy | Black | Receptacle Female Sockets | 0.584 in | 14.84 mm | Polyester Thermoplastic | B DB | 3 | 3 A | UL94 V-0 | Mounting Brackets Shielded | D-Sub | Signal | ||
EDAC Inc. | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Solder | Housing/Shell (4-40) | -55 °C | 85 °C | Gold | Copper Alloy | Black | Receptacle Female Sockets | 0.584 in | 14.84 mm | Polyester Thermoplastic | B DB | 3 | 3 A | UL94 V-0 | Board Lock Mounting Brackets Shielded | D-Sub | Signal | 0.76 Ám | 30 Áin | |
EDAC Inc. | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Solder | 4-40 | -55 °C | 85 °C | Gold | Flash | Copper Alloy | Black | Receptacle Female Sockets | 0.584 in | 14.84 mm | Polyester Thermoplastic | B DB | 3 | 3 A | UL94 V-0 | Board Lock Mounting Brackets Shielded | D-Sub | Signal | ||
EDAC Inc. | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Solder | Housing/Shell (M3) | -55 °C | 85 °C | Gold | Copper Alloy | Black | Receptacle Female Sockets | 0.584 in | 14.84 mm | Polyester Thermoplastic | B DB | 3 | 3 A | UL94 V-0 | Board Lock Mounting Brackets Shielded | D-Sub | Signal | 0.38 µm | 15 µin | |
EDAC Inc. | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Solder | Female Screwlock (4-40) Mating Side | -55 °C | 85 °C | Gold | Copper Alloy | Black | Receptacle Female Sockets | 0.584 in | 14.84 mm | Polyester Thermoplastic | B DB | 3 | 3 A | UL94 V-0 | Board Lock Mounting Brackets Shielded | D-Sub | Signal | 0.38 µm | 15 µin | |
EDAC Inc. | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Solder | Housing/Shell (Unthreaded) | -55 °C | 125 °C | Gold | Copper Alloy | Black | Receptacle Female Sockets | 0.584 in | 14.84 mm | Polyester Thermoplastic | B DB | 3 | 3 A | UL94 V-0 | Board Lock Mounting Brackets Shielded | D-Sub | Signal | 0.76 Ám | 30 Áin | |
EDAC Inc. | 2 | Nickel Plated Steel | Board Edge Right Angle Through Hole | Solder | Housing/Shell (Unthreaded) | -55 °C | 85 °C | Gold | Flash | Copper Alloy | Black | Receptacle Female Sockets | 0.584 in | 14.84 mm | Polyester Thermoplastic | B DB | 3 | 3 A | UL94 V-0 | Board Lock Mounting Brackets Shielded | D-Sub | Signal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 7.24 | |
Description
General part information
626-025 Series
25 Position D-Sub Receptacle, Female Sockets Connector
