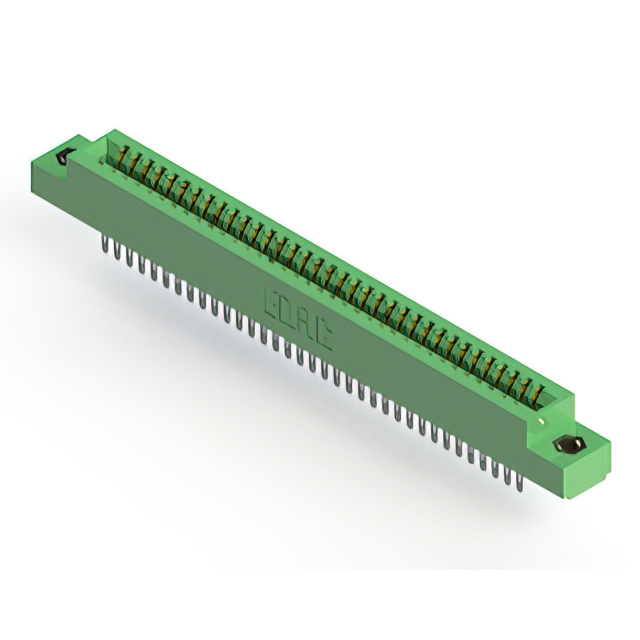

341-070-500-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 70POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
341-070-500-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 70POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-070-500-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 70 |
| Number of Positions/Bay/Row [custom] | 35 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
341-070 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Number of Rows | Pitch [x] | Pitch [x] | Features | Card Type | Number of Positions | Read Out | Termination Rows | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Mounting Type | Flange Feature | Gender | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Contact Material | Color | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | 2.54 mm | 0.1 in | Card Extender | Non Specified - Dual Edge | 70 | Dual | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Board Edge Straddle Mount | Flush Mount M3 Threaded Insert Top Opening | Female | 10 Áin | 0.25 Ám | 35 | Copper Alloy | Green | Semi Bellows | ||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | 2.54 mm | 0.1 in | Card Extender | Non Specified - Dual Edge | 70 | Dual | 2 | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | Floating Bobbin Flush Mount | Female | 10 Áin | 0.25 Ám | 35 | Copper Alloy | Green | Semi Bellows | 0.116 in | 2.95 mm |
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | 2.54 mm | 0.1 in | Card Extender | Non Specified - Dual Edge | 70 | Dual | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Board Edge Straddle Mount | Flush Mount Top Opening Unthreaded | Female | 10 Áin | 0.25 Ám | 35 | Copper Alloy | Green | Semi Bellows | 0.128 " | 3.25 mm |
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 70 | Dual | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Female | 10 Áin | 0.25 Ám | 35 | Copper Alloy | Green | Semi Bellows | |||
EDAC Inc. | -40 °C | 105 ░C | Diallyl Phthalate (DAP) | 2 | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 70 | Dual | 2 | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Female | 10 Áin | 0.25 Ám | 35 | Copper Alloy | Green | Semi Bellows | |||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | 2.54 mm | 0.1 in | Card Extender | Non Specified - Dual Edge | 70 | Dual | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Board Edge Straddle Mount | 4-40 Flush Mount Threaded Insert Top Opening | Female | 10 Áin | 0.25 Ám | 35 | Copper Alloy | Green | Semi Bellows | ||
EDAC Inc. | -40 °C | 105 ░C | Diallyl Phthalate (DAP) | 2 | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 70 | Dual | 2 | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | Floating Bobbin Flush Mount | Female | 10 Áin | 0.25 Ám | 35 | Copper Alloy | Green | Semi Bellows | 0.116 in | 2.95 mm | |
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 70 | Dual | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Female | 10 Áin | 0.25 Ám | 35 | Copper Alloy | Green | Semi Bellows | |||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | 2.54 mm | 0.1 in | Card Extender | Non Specified - Dual Edge | 70 | Dual | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Board Edge Straddle Mount | Floating Bobbin Flush Mount | Female | 10 Áin | 0.25 Ám | 35 | Copper Alloy | Green | Semi Bellows | 0.116 in | 2.95 mm |
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | 2.54 mm | 0.1 in | Card Extender | Non Specified - Dual Edge | 70 | Dual | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | Floating Bobbin Flush Mount | Female | 10 Áin | 0.25 Ám | 35 | Copper Alloy | Green | Semi Bellows | 0.116 in | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 20.15 | |
Description
General part information
341-070 Series
70 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
