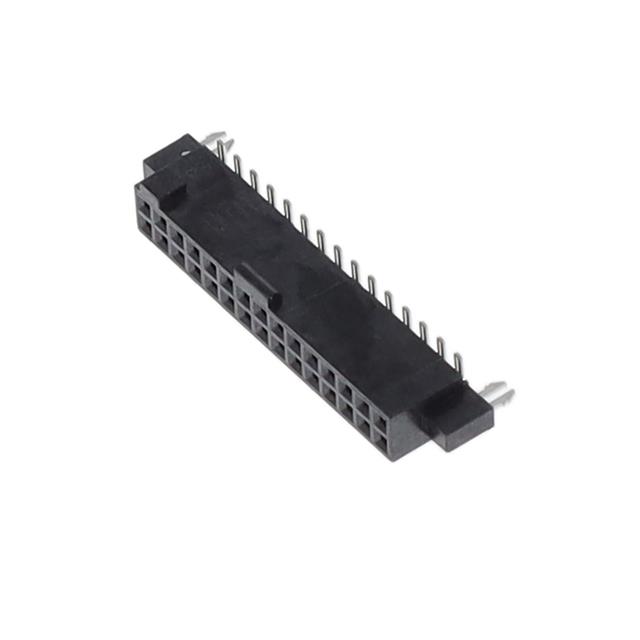

SFML-115-T2-SM-D-LC

Active

Samtec Inc.

CONN RCPT 30POS 0.05 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SFML-115-T2-SM-D-LC

Active

Samtec Inc.

CONN RCPT 30POS 0.05 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFML-115-T2-SM-D-LC

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.2 A
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height	0.185 in
Insulation Height	4.7 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

SFML-115 Series

Headers & Wire Housings .050" Tiger Eye High-Reliability Locking Socket Strip

Part	Row Spacing - Mating	Row Spacing - Mating	Features	Number of Positions	Mounting Type	Contact Type	Insulation Color	Contact Finish - Post	Number of Rows	Contact Finish - Mating	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Fastening Type	Termination	Style	Insulation Height	Insulation Height	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Shape	Voltage Rating	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. SFML-115-02-S-D-LC-P	0.05 in	1.27 mm	Board Lock Pick and Place	30	Surface Mount	Female Socket	Black	Tin	2	Gold	3.2 A	0.05 in	1.27 mm	Locking Ramp	Solder	Board to Board Cable	0.185 in	4.7 mm	Receptacle	30 Áin	0.76 Ám	UL94 V-0	-55 °C	125 °C	All	Square	250 VAC	Liquid Crystal Polymer (LCP)
Samtec Inc. SFML-115-L2-S-D-A	0.05 in	1.27 mm	Board Guide	30	Surface Mount	Female Socket	Black	Tin	2	Gold	3.2 A	0.05 in	1.27 mm	Locking Ramp	Solder	Board to Board Cable	0.185 in	4.7 mm	Receptacle	30 Áin	0.76 Ám	UL94 V-0	-55 °C	125 °C	All	Square	250 VAC	Liquid Crystal Polymer (LCP)
Samtec Inc. SFML-115-T1-SM-D-LC	0.05 in	1.27 mm		30	Through Hole	Female Socket	Black	Tin	2	Gold	3.2 A	0.05 in	1.27 mm	Locking Ramp	Solder	Board to Board Cable	0.18 "	4.57 mm	Receptacle	30 Áin	0.76 Ám	UL94 V-0	-55 °C	125 °C	All	Square	250 VAC	Liquid Crystal Polymer (LCP)	0.12 in	3.05 mm
Samtec Inc. SFML-115-T2-L-D-SN-K	0.05 in	1.27 mm	Pick and Place Solder Retention	30	Surface Mount	Female Socket	Black	Tin	2	Gold	3.2 A	0.05 in	1.27 mm	Locking Ramp	Solder	Board to Board Cable	0.185 in	4.7 mm	Receptacle	10 çin	0.25 çm	UL94 V-0	-55 °C	125 °C	All	Square	250 VAC	Liquid Crystal Polymer (LCP)
Samtec Inc. SFML-115-T1-L-D	0.05 in	1.27 mm		30	Through Hole	Female Socket	Black	Tin	2	Gold	3.2 A	0.05 in	1.27 mm	Locking Ramp	Solder	Board to Board Cable	0.18 "	4.57 mm	Receptacle	10 çin	0.25 çm	UL94 V-0	-55 °C	125 °C	All	Square	250 VAC	Liquid Crystal Polymer (LCP)	0.12 in	3.05 mm
Samtec Inc. SFML-115-T2-F-D-A-K-TR	0.05 in	1.27 mm	Board Guide Pick and Place	30	Surface Mount	Female Socket	Black	Tin	2	Gold	3.2 A	0.05 in	1.27 mm	Locking Ramp	Solder	Board to Board Cable	0.185 in	4.7 mm	Receptacle	3 µin	0.076 µm	UL94 V-0	-55 °C	125 °C	All	Square	250 VAC	Liquid Crystal Polymer (LCP)
Samtec Inc. SFML-135-01-L-D	0.05 in	1.27 mm		70	Through Hole	Female Socket	Black	Tin	2	Gold	3.2 A	0.05 in	1.27 mm	Locking Ramp	Solder	Board to Board Cable	0.18 "	4.57 mm	Receptacle	10 çin	0.25 çm	UL94 V-0	-55 °C	125 °C	All	Square	250 VAC	Liquid Crystal Polymer (LCP)	0.12 in	3.05 mm
Samtec Inc. SFML-115-T2-SM-D-A-P	0.05 in	1.27 mm	Board Guide Pick and Place	30	Surface Mount	Female Socket	Black	Tin	2	Gold	3.2 A	0.05 in	1.27 mm	Locking Ramp	Solder	Board to Board Cable	0.185 in	4.7 mm	Receptacle	30 Áin	0.76 Ám	UL94 V-0	-55 °C	125 °C	All	Square	250 VAC	Liquid Crystal Polymer (LCP)
Samtec Inc. SFML-115-T2-S-D-LC-TR	0.05 in	1.27 mm		30	Surface Mount	Female Socket	Black	Tin	2	Gold	3.2 A	0.05 in	1.27 mm	Locking Ramp	Solder	Board to Board Cable	0.185 in	4.7 mm	Receptacle	30 Áin	0.76 Ám	UL94 V-0	-55 °C	125 °C	All	Square	250 VAC	Liquid Crystal Polymer (LCP)
Samtec Inc. SFML-115-T2-SM-D-LC	0.05 in	1.27 mm		30	Surface Mount	Female Socket	Black	Tin	2	Gold	3.2 A	0.05 in	1.27 mm	Locking Ramp	Solder	Board to Board Cable	0.185 in	4.7 mm	Receptacle	30 Áin	0.76 Ám	UL94 V-0	-55 °C	125 °C	All	Square	250 VAC	Liquid Crystal Polymer (LCP)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.06
		10	$ 6.53
		25	$ 6.17
		50	$ 5.95
		100	$ 5.56

Description

General part information

SFML-115 Series

Headers & Wire Housings .050" Tiger Eye High-Reliability Locking Socket Strip
