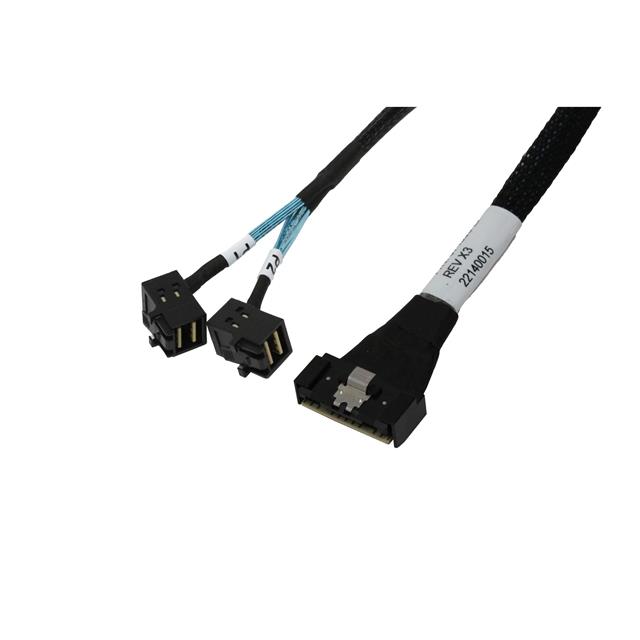

PT-SAS-SL8LP-43RAX2-100

Active

Pactech

SLIMSAS 8I LP TO 2X HDMINISAS RA

Search across all available documentation for this part.

Active

Pactech

SLIMSAS 8I LP TO 2X HDMINISAS RA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PT-SAS-SL8LP-43RAX2-100	PT-SAS-SL8LP Series

Cable Connectors	SlimSAS SFF-8654 8i LP, miniSAS HD 4i (2)	SlimSAS SFF-8654 8i LP, miniSAS HD 4i (2)
Cable Type	Flat	Flat
Color	Black	Black
Connector Type	Plug to Plug (2)	Plug to Plug (2)
Fastening Type	Latch Lock	Latch Lock
Features	RAID friendly for Broadcom MegaRAID 9560-16i Controller, 16Gbps PCI-e Gen4, SlimSAS SFF-8654	RAID friendly for Broadcom MegaRAID 9560-16i Controller, 16Gbps PCI-e Gen4, SlimSAS SFF-8654
Frequency - Max [Max]	24 Gbps	24 Gbps
Gender	Male to Male	Male to Male
Length	-	9.843 in
Length [x]	1 m	0.75 - 500 m
Length [x]	3.28 ft	1.64 - 9.84 ft
Number of Positions	36, 74	36 - 74
Shielding	Shielded	Shielded
Usage	Internal	Internal
Wire Gauge	30 AWG	30 AWG

SLIMSAS 8I LP TO 2X HDMINISAS RA

Part	Gender	Cable Connectors	Length [x]	Length [x]	Wire Gauge	Usage	Shielding	Fastening Type	Features	Color	Number of Positions	Frequency - Max [Max]	Cable Type	Connector Type	Length [x]
Pactech PT-SAS-SL8LP-43RAX2-100	Male to Male	miniSAS HD 4i (2), SlimSAS SFF-8654 8i LP	1 m	3.28 ft	30 AWG	Internal	Shielded	Latch Lock	16Gbps PCI-e Gen4, RAID friendly for Broadcom MegaRAID 9560-16i Controller, SlimSAS SFF-8654	Black	36, 74	24 Gbps	Flat	Plug to Plug (2)
Pactech PT-SAS-SL8LP-43RAX2-025	Male to Male	miniSAS HD 4i (2), SlimSAS SFF-8654 8i LP	250 mm	9.84 in	30 AWG	Internal	Shielded	Latch Lock	16Gbps PCI-e Gen4, RAID friendly for Broadcom MegaRAID 9560-16i Controller, SlimSAS SFF-8654	Black	36, 74	24 Gbps	Flat	Plug to Plug (2)	9.843 in
Pactech PT-SAS-SL8LP-43RAX2-050	Male to Male	miniSAS HD 4i (2), SlimSAS SFF-8654 8i LP	500 mm	1.64 ft	30 AWG	Internal	Shielded	Latch Lock	16Gbps PCI-e Gen4, RAID friendly for Broadcom MegaRAID 9560-16i Controller, SlimSAS SFF-8654	Black	36, 74	24 Gbps	Flat	Plug to Plug (2)
Pactech PT-SAS-SL8LP-43RAX2-050	Male to Male	miniSAS HD 4i (2), SlimSAS SFF-8654 8i LP	500 mm	1.64 ft	30 AWG	Internal	Shielded	Latch Lock	16Gbps PCI-e Gen4, RAID friendly for Broadcom MegaRAID 9560-16i Controller, SlimSAS SFF-8654	Black	36, 74	24 Gbps	Flat	Plug to Plug (2)
Pactech PT-SAS-SL8LP-43RAX2-075	Male to Male	miniSAS HD 4i (2), SlimSAS SFF-8654 8i LP	0.75 m	2.46 ft	30 AWG	Internal	Shielded	Latch Lock	16Gbps PCI-e Gen4, RAID friendly for Broadcom MegaRAID 9560-16i Controller, SlimSAS SFF-8654	Black	36, 74	24 Gbps	Flat	Plug to Plug (2)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

74, 36 (2) Position SlimSAS SFF-8654 8i LP, miniSAS HD 4i (2) Plug to Plug (2) 3.28' (1.00m) Black Shielded
