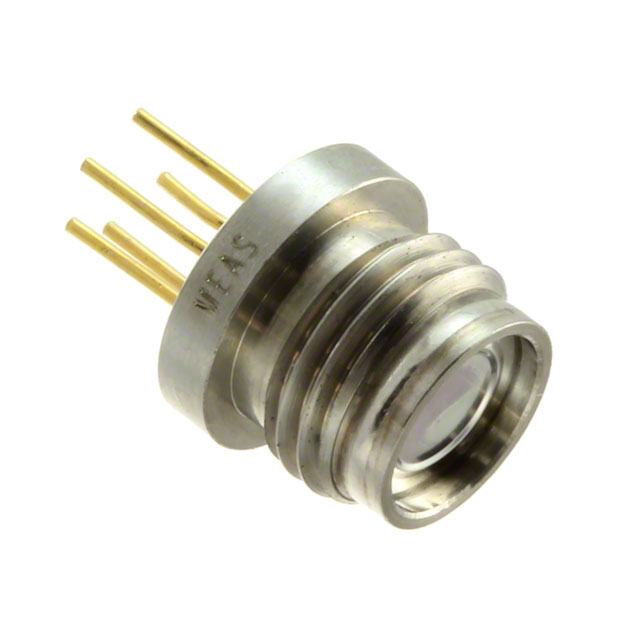

89-01KA-0U
ActiveTE Connectivity Measurement Specialties
SENSOR 1000PSIA .208V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
89-01KA-0U
ActiveTE Connectivity Measurement Specialties
SENSOR 1000PSIA .208V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 89-01KA-0U |
|---|---|
| Accuracy | 0.25 % |
| Applications | Board Mount |
| Maximum Pressure [Max] | 20684.27 kPa |
| Maximum Pressure [Max] | 3000 PSI |
| Operating Pressure | 1000 PSI |
| Operating Pressure | 6894.76 kPa |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 208 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | Cylinder |
| Port Style | No Port |
| Termination Style | PC Pin |
| Voltage - Supply | 9.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 162.03 | |
| 5 | $ 151.23 | |||
| 16 | $ 144.67 | |||
| 32 | $ 141.18 | |||
| 64 | $ 137.98 | |||
Description
General part information
89-01 Series
Pressure Sensor 1000PSI (6894.76kPa) Absolute 0 mV ~ 208 mV Cylinder
