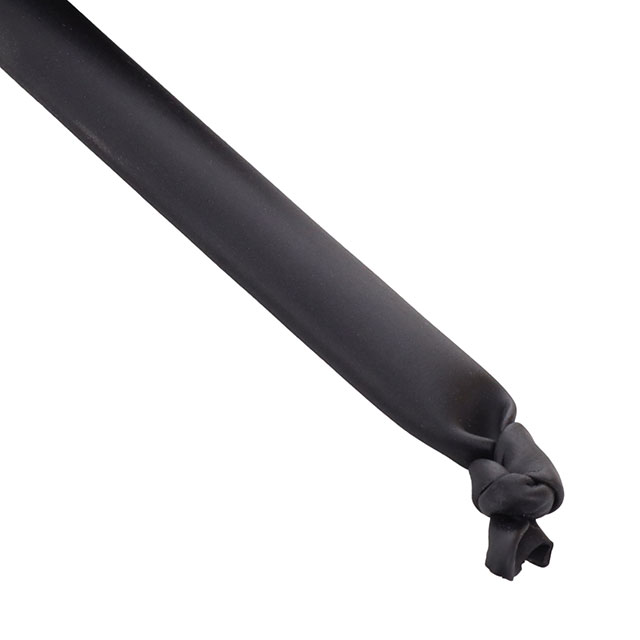

R10 1/4 BLACK SPL

Active

Sumitomo Electric Interconnect Products, Inc.

SUMITUBE R10-HEAT-SHRNKABLE FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R10 1/4 BLACK SPL

Active

Sumitomo Electric Interconnect Products, Inc.

SUMITUBE R10-HEAT-SHRNKABLE FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R10 1/4 BLACK SPL

Color	Black
Features	Chemical Resistant, Flame Retardant, Abrasion Resistant
Inner Diameter - Recovered [diameter]	0.143 in
Inner Diameter - Recovered [diameter]	3.63 mm
Inner Diameter - Supplied [diameter]	0.25 in
Inner Diameter - Supplied [diameter]	6.35 mm
Length	Enter Number of Feet in Order Quantity
Material	Polyolefin (PO), Chlorinated
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-103 °F
Recovered Wall Thickness	0.89 mm
Recovered Wall Thickness	0.035 in
Shelf Life	60 Months
Shrink Temperature	150 °C
Shrinkage Ratio	2 to 1
Spool Size	1000 ft
Spool Size	304.8 m
Type	Tubing, Flexible

R10 Series

Part	Recovered Wall Thickness	Recovered Wall Thickness	Shelf Life	Shrink Temperature	Color	Spool Size	Spool Size	Type	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrinkage Ratio	Length	Features	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness
Sumitomo Electric Interconnect Products, Inc. R10 1/4 BLACK SPL	0.89 mm	0.035 in	60 Months	150 °C	Black	1000 ft	304.8 m	Tubing Flexible	120 °C	-103 °F	0.143 in	3.63 mm	2 to 1	Enter Number of Feet in Order Quantity	Abrasion Resistant Chemical Resistant Flame Retardant	0.25 in	6.35 mm	Polyolefin (PO) Chlorinated
Sumitomo Electric Interconnect Products, Inc. R10 1/8 BLACK SPL	0.69 mm	0.027 "	60 Months	150 °C	Black	2000 '	609.6 m	Tubing Flexible	120 °C	-103 °F	0.062 in	1.57 mm	2 to 1	Enter Number of Feet in Order Quantity	Abrasion Resistant Chemical Resistant Flame Retardant	0.125 "	3.18 mm	Polyolefin (PO) Chlorinated
Sumitomo Electric Interconnect Products, Inc. R10 1 BLACK SPL	1.78 mm	0.07 "	60 Months	150 °C	Black	300 ft	91.4 m	Tubing Flexible	120 °C	-103 °F		0.57 in	2 to 1	Enter Number of Feet in Order Quantity	Abrasion Resistant Chemical Resistant Flame Retardant	1 in	25.4 mm	Polyolefin (PO) Chlorinated	14.48 mm
Sumitomo Electric Interconnect Products, Inc. R10 1/2 BLACK SPL	0.048 in		60 Months	150 °C	Black	500 '	152.4 m	Tubing Flexible	120 °C	-103 °F	0.286 in	7.26 mm	2 to 1	Enter Number of Feet in Order Quantity	Abrasion Resistant Chemical Resistant Flame Retardant	0.5 in	12.7 mm	Polyolefin (PO) Chlorinated		1.22 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 2.72
		5	$ 2.61
		10	$ 2.01
		25	$ 1.85
		50	$ 1.74
		100	$ 1.63

Description

General part information

R10 Series

Heat Shrink Tubing, Flexible 0.250" (6.35mm) 2 to 1 Black Enter Number of Feet in Order Quantity
