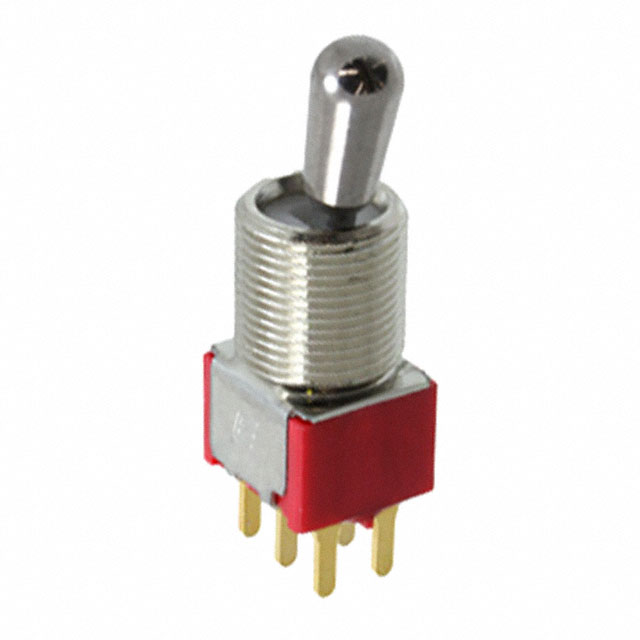

100DP2T7B13M3RE
ActiveE-Switch
SWITCH TOGGLE DPDT 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
100DP2T7B13M3RE
ActiveE-Switch
SWITCH TOGGLE DPDT 0.4VA 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 100DP2T7B13M3RE | 100DP2 Series |
|---|---|---|
| Actuator Length [x] | 13 mm | 5.08 - 13 mm |
| Actuator Material | Brass, Chrome Plated | Brass, Chrome Plated |
| Actuator Type | Standard Round | Standard Round |
| Bushing Thread | 15/32-32 | 1/4-40, Unthreaded, 15/32-32 |
| Circuit | DPDT | DPDT |
| Current Rating (Amps) | 0.4 VA | 0.4 - 5 A |
| Electrical Life | 40000 Cycles | 40000 Cycles |
| Features | Epoxy Sealed Terminals | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated | Non-Illuminated |
| Mounting Type | - | Through Hole, Vertical, Right Angle |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Panel Cutout Dimensions [diameter] | 11.91 mm | 0.25 - 11.91 in |
| Switch Function | On-Mom | On-Mom |
| Termination Style | Quick Connect - 0.062" (1.5mm) | Solder Lug, PC Pin, Quick Connect - 0.062" (1.5mm) |
| Voltage Rating - AC | 20 V | 20 - 120 V |
| Voltage Rating - DC | 20 V | 20 - 28 V |
100DP2 Series
SWITCH TOGGLE DPDT 5A 120V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Actuator Material | Termination Style | Switch Function | Voltage Rating - DC | Actuator Type | Circuit | Actuator Length [x] | Bushing Thread | Illumination | Features | Electrical Life | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch 100DP2T1B1M1QE | -30 ░C | 85 °C | 120 V | Brass, Chrome Plated | Solder Lug | On-Mom | 28 V | Standard Round | DPDT | 10.41 mm | 1/4-40 | Non-Illuminated | Epoxy Sealed Terminals | 40000 Cycles | 5 A | 0.25 in | |
E-Switch 100DP2T2B4M7QE | -30 ░C | 85 °C | 120 V | Brass, Chrome Plated | PC Pin | On-Mom | 28 V | Standard Round | DPDT | 5.08 mm | Unthreaded | Non-Illuminated | Epoxy Sealed Terminals | 40000 Cycles | 5 A | Right Angle, Through Hole, Vertical | |
E-Switch 100DP2T7B13M3RE | -30 ░C | 85 °C | 20 V | Brass, Chrome Plated | Quick Connect - 0.062" (1.5mm) | On-Mom | 20 V | Standard Round | DPDT | 13 mm | 15/32-32 | Non-Illuminated | Epoxy Sealed Terminals | 40000 Cycles | 0.4 VA | 11.91 mm |
