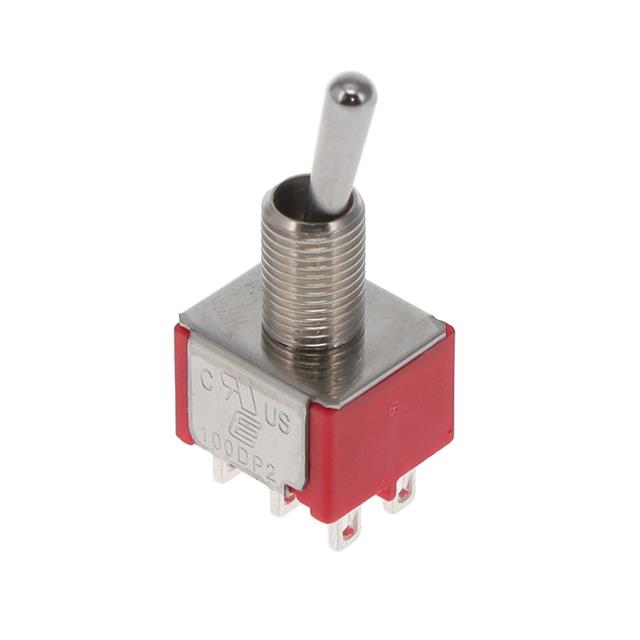

100DP2T1B1M1QE

Active

E-Switch

SWITCH TOGGLE DPDT 5A 120V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE DPDT 5A 120V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100DP2T1B1M1QE	100DP2 Series

Actuator Length [x]	10.41 mm	5.08 - 13 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	1/4-40	1/4-40, Unthreaded, 15/32-32
Circuit	DPDT	DPDT
Current Rating (Amps)	5 A	0.4 - 5 A
Electrical Life	40000 Cycles	40000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	-	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in	0.25 - 11.91 in
Switch Function	On-Mom	On-Mom
Termination Style	Solder Lug	Solder Lug, PC Pin, Quick Connect - 0.062" (1.5mm)
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

SWITCH TOGGLE DPDT 5A 120V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Actuator Material	Termination Style	Switch Function	Voltage Rating - DC	Actuator Type	Circuit	Actuator Length [x]	Bushing Thread	Illumination	Features	Electrical Life	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Mounting Type
E-Switch 100DP2T1B1M1QE	-30 ░C	85 °C	120 V	Brass, Chrome Plated	Solder Lug	On-Mom	28 V	Standard Round	DPDT	10.41 mm	1/4-40	Non-Illuminated	Epoxy Sealed Terminals	40000 Cycles	5 A	0.25 in
E-Switch 100DP2T2B4M7QE	-30 ░C	85 °C	120 V	Brass, Chrome Plated	PC Pin	On-Mom	28 V	Standard Round	DPDT	5.08 mm	Unthreaded	Non-Illuminated	Epoxy Sealed Terminals	40000 Cycles	5 A		Right Angle, Through Hole, Vertical
E-Switch 100DP2T7B13M3RE	-30 ░C	85 °C	20 V	Brass, Chrome Plated	Quick Connect - 0.062" (1.5mm)	On-Mom	20 V	Standard Round	DPDT	13 mm	15/32-32	Non-Illuminated	Epoxy Sealed Terminals	40000 Cycles	0.4 VA	11.91 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
