2285580

Active

Phoenix Contact

TERM BLOCK

Search across all available documentation for this part.

Active

Phoenix Contact

TERM BLOCK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2285580	FRONT-SFL Series

Convert From (Adapter End)	Terminal Blocks, 32 Pos, Screw Connection, 2 Rows	Terminal Blocks, 32 Pos, Screw Connection, 2 Rows, 48 Pos, 3 Rows
Convert To (Adapter End)	32 Pin, 2 Rows	2 - 32 Pin
Convert To (Adapter End)	Female Sockets, Rectangular Connector	Card Edge Connector, Rectangular Connector, 48 Pos, 3 Rows, Female Sockets
Mounting Type	Feed Through, Panel Mount	Feed Through, Panel Mount, Panel Mount, Flange, Free Hanging (In-Line)
Wire Gauge [Max]	30 AWG	24 - 30 AWG
Wire Gauge [Min]	12 AWG	12 AWG

FRONT-SFL2,5/D32

Part	Mounting Type	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Wire Gauge [Min]	Wire Gauge [Max]
Phoenix Contact 2285593	Feed Through, Panel Mount	2 Rows, 32 Pos, Screw Connection, Terminal Blocks	32 Pin	Card Edge Connector	12 AWG	24 AWG
Phoenix Contact 2285603	Free Hanging (In-Line), Panel Mount, Flange	3 Rows, 48 Pos, Screw Connection, Terminal Blocks		3 Rows, 48 Pos, Female Sockets, Rectangular Connector	12 AWG	24 AWG
Phoenix Contact 2285580	Feed Through, Panel Mount	2 Rows, 32 Pos, Screw Connection, Terminal Blocks	2 Rows, 32 Pin	Female Sockets, Rectangular Connector	12 AWG	30 AWG
Phoenix Contact 2285577	Feed Through, Panel Mount	3 Rows, 32 Pos, Screw Connection, Terminal Blocks	32 Pin	Card Edge Connector	12 AWG	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 184.76

General part information

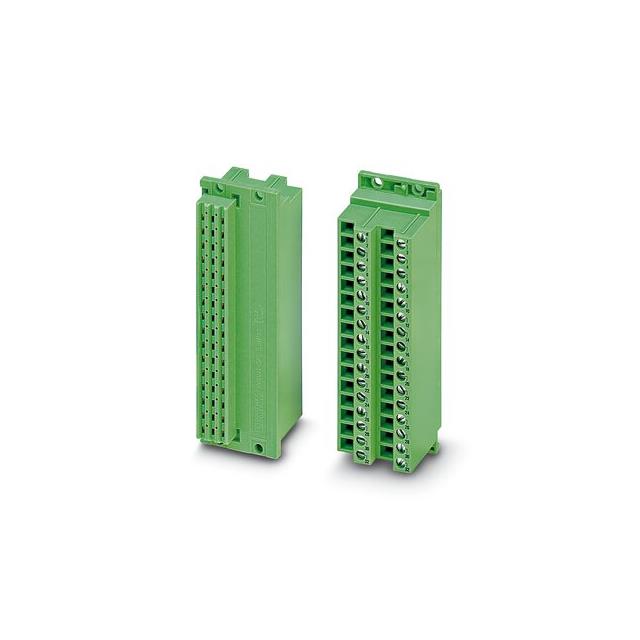

Adapter Terminal Blocks, Screw Connection, 32 Pos, 2 Rows To Rectangular Connector, Female Sockets, 32 Pos, 2 Rows
