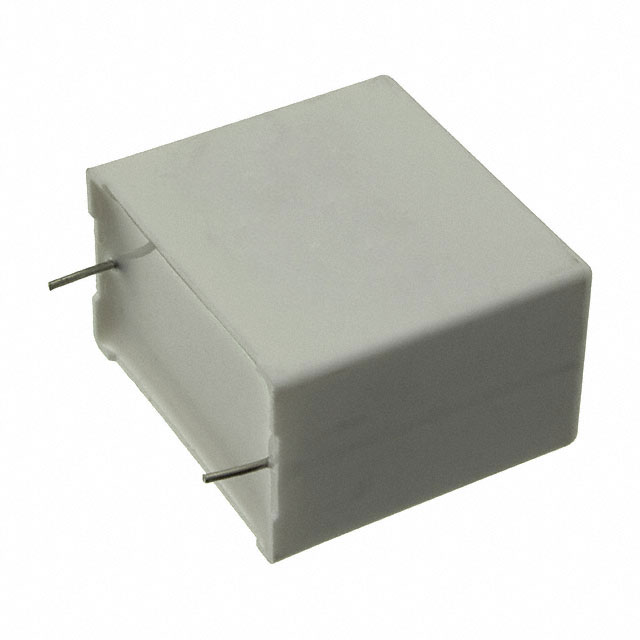

C4AF1BU4220A1XK

Active

KEMET

CAP FILM 2.2UF 10% 250VAC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 2.2UF 10% 250VAC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	C4AF1BU4220A1XK

Applications	Automotive
Capacitance	2.2 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	7.2 mOhms
Height - Seated (Max) [Max] [z]	0.992 in
Height - Seated (Max) [Max] [z]	25.2 mm
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	1.24 in
Size / Dimension [x]	31.5 mm
Size / Dimension [y]	13 mm
Size / Dimension [y]	0.512 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	250 V

Part	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Termination	ESR (Equivalent Series Resistance)	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Lead Spacing	Lead Spacing	Dielectric Material	Mounting Type	Ratings	Tolerance	Capacitance
KEMET C4AF1BU4220A1XK	Radial	13 mm	0.512 in	1.24 in	31.5 mm	PC Pins	7.2 mOhms	Automotive	0.992 in	25.2 mm	105 ░C	-55 °C	250 V	27.5 mm	1.083 in	Metallized Polypropylene (PP)	Through Hole	AEC-Q200	10 %	2.2 µF
KEMET C4AF1BU4150A1WK	Radial					PC Pins	9.7 mOhms	Automotive	0.795 "	20.2 mm	105 ░C	-55 °C	250 V	27.5 mm	1.083 in	Metallized Polypropylene (PP)	Through Hole	AEC-Q200	10 %	1.5 µF
KEMET C4AF1BW5100A3FK	Radial - 4 Leads	20 mm	0.787 in	1.654 in	42 mm	PC Pins	2.7 mOhms	Automotive	1.583 in	40.2 mm	105 ░C	-55 °C	250 V	37.5 mm	1.476 in	Metallized Polypropylene (PP)	Through Hole	AEC-Q200	10 %	10 µF
KEMET C4AF1BW5220A3OK	Radial - 4 Leads	35 mm	1.378 "	1.654 in	42 mm	PC Pins	1.4 mOhms	Automotive	1.976 "	50.2 mm	105 ░C	-55 °C	250 V	37.5 mm	1.476 in	Metallized Polypropylene (PP)	Through Hole	AEC-Q200	10 %	22 µF
KEMET C4AF1BW5330A3NK	Radial - 4 Leads	35 mm	1.378 "	2.264 in	57.5 mm	PC Pins	1.7 mOhm	Automotive			105 ░C	-55 °C	250 V	52.5 mm	2.067 in	Metallized Polypropylene (PP)	Through Hole	AEC-Q200	10 %	33 ÁF
KEMET C4AF1BU4680A12K	Radial	22 mm	0.866 in	1.24 in	31.5 mm	PC Pins	3.6 mOhms	Automotive	1.465 in	37.2 mm	105 ░C	-55 °C	250 V	27.5 mm	1.083 in	Metallized Polypropylene (PP)	Through Hole	AEC-Q200	10 %	6.8 ÁF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.2 µF Film Capacitor 250V Polypropylene (PP), Metallized Radial
