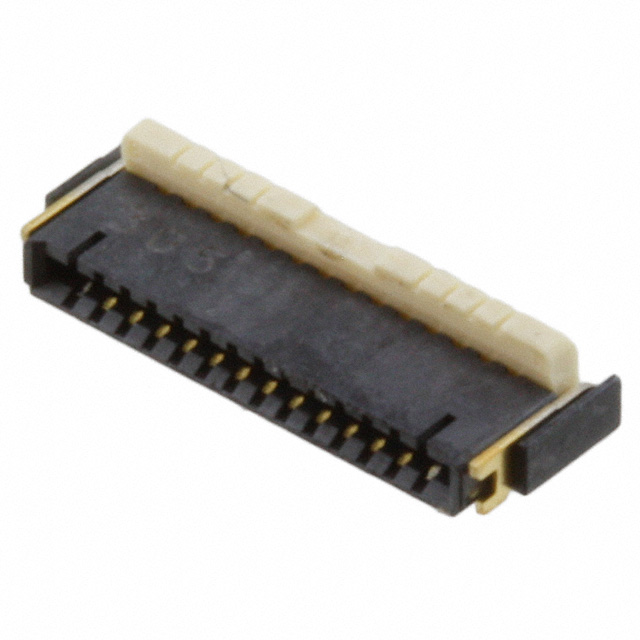

AYF531265TA
ActivePanasonic Electric Works
CONN FPC 12POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHow to Read Date Codes
AYF531265TA
ActivePanasonic Electric Works
CONN FPC 12POS 0.5MM R/A
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | AYF531265TA |
|---|---|
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Notched |
| Connector/Contact Type | Contacts, Top and Bottom |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 500 mA |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC |
| Height Above Board [z] | 1 mm |
| Height Above Board [z] | 0.039 in |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Locking Feature | Flip Lock, Backlock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 12 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.48 | |
| 10 | $ 1.13 | |||
| 25 | $ 1.01 | |||
| 50 | $ 0.94 | |||
| 100 | $ 0.87 | |||
| 250 | $ 0.78 | |||
| 500 | $ 0.73 | |||
| 1000 | $ 0.68 | |||
| 2500 | $ 0.62 | |||
Description
General part information
AYF531265 Series
12 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
